Teltonika Telematics

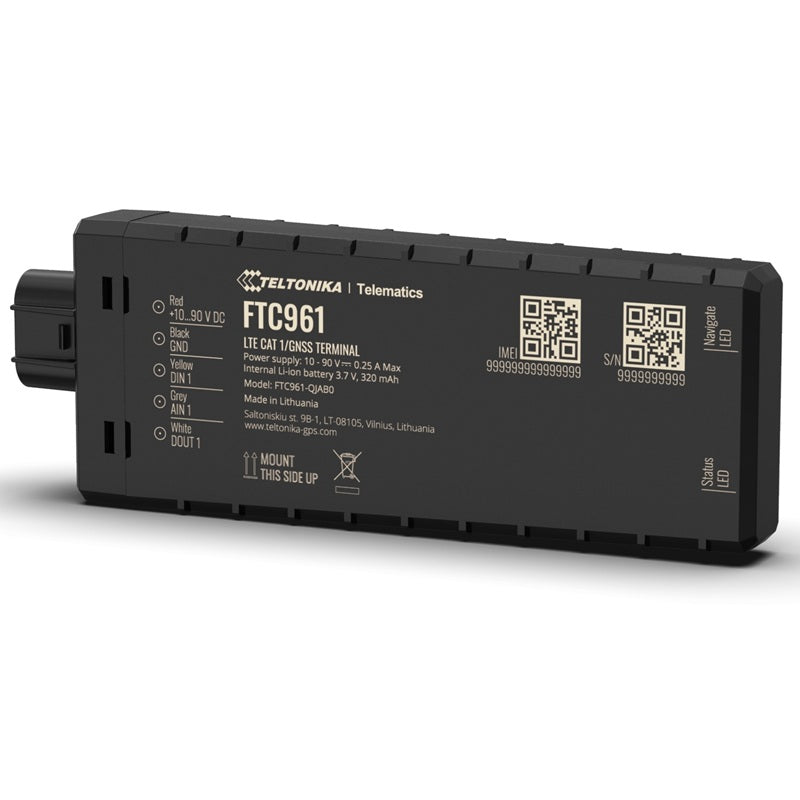

Teltonika Telematics FTC961 - Teltonika FTC961 high voltage 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy and IP69K resistance
$154.51
Free shipping over $299
Genuine product
7-day returns
FTC961
Teltonika Telematics FTC961 - Teltonika FTC961 high voltage 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy and IP69K resistance
Description
Teltonika FTC961 Next-generation high voltage 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy and IP69K resistance.
The Fleet Telematics (FT) platform includes both new firmware development standards and a new hardware, providing enhanced tracking accuracy with high GNSS precision, taking the tracking experience to the next level with up to 40 visible satellites, enabling considerably higher tracking quality for location-based services.
The 320mAh battery and optimised sleep modes allow the device to operate on its own for an extended period of time and significantly reduce vehicle battery drainage, while high power supply making FTC961 a perfect solution for monitoring and tracking various types of vehicles, including e-motorcycles, e-mopeds, e-rickshaws, and other electric vehicles.
FTC961 belongs to the BASIC products family, keeps its compatibility, reliability and endurance. All the interfaces it has are more than enough for basic tracking. Digital Input can be used for ignition, door or alarm button status monitoring, while vehicle remote immobilizing may be achieved by using the Digital Output of the device. At the same time, Analog Input extends device usage scenarios with temperature, humidity, liquid level monitoring and many more.
The Fleet Telematics (FT) platform includes both new firmware development standards and a new hardware, providing enhanced tracking accuracy with high GNSS precision, taking the tracking experience to the next level with up to 40 visible satellites, enabling considerably higher tracking quality for location-based services.
The 320mAh battery and optimised sleep modes allow the device to operate on its own for an extended period of time and significantly reduce vehicle battery drainage, while high power supply making FTC961 a perfect solution for monitoring and tracking various types of vehicles, including e-motorcycles, e-mopeds, e-rickshaws, and other electric vehicles.
FTC961 belongs to the BASIC products family, keeps its compatibility, reliability and endurance. All the interfaces it has are more than enough for basic tracking. Digital Input can be used for ignition, door or alarm button status monitoring, while vehicle remote immobilizing may be achieved by using the Digital Output of the device. At the same time, Analog Input extends device usage scenarios with temperature, humidity, liquid level monitoring and many more.
Features
- More precise GNSS with up to 41 visible satellites, enabling considerably higher tracking quality for location-based services
- IP69K waterproof casing The ultimate protection against dust, high pressure water, and steam
- Optimised sleep modes allow the device to operate on its own for an extended period of time and significantly reduce vehicle battery drainage
Specifications
| Details | |
|---|---|
| Product Code | FTC961-M8PIL1 |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU |
| Receive type | 135 tracking/acquisition channels |
| Tracking sensitivity | -165 dBM |
| Position Accuracy | < 1.8 m CEP |
| Velocity Accuracy | < 0.1 m/s (within +/- 15% error) |
| Cold start | < 35 s |
| Warm start | < 25 s |
| Hot start | < 1 s |
| 4G LTE bands | LTE FDD (CAT 1): B1/B3/B5/B7/B8/B20/B28 |
| Data transfer | LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL), GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL) |
| Transmit power | Class 5 for GSM850/900: 30±5dBM |
| Class 3 for GSM1800/1900: 29±5dBM | Class 3 for LTE-FDD: 26±5dBM |
| Data support | SMS (TEXT, PDU), Network protocols (TCP) |
| Codec support | Codec 8 Extended |
| Input voltage range | 10–90 V |
| Internal Back-up battery | 320 mAh Li-Ion battery 3.7V (1.18 Wh) |
| Internal fuse | 3A, 125V |
| Power consumption | TBA |
| Dimensions | 118 x 48 x 18.5 mm (L x W x H) |
| Weight | 118 g |
| Digital Inputs | 1 |
| Digital Outputs | 1 |
| Analog Inputs | 1 |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 USB Type C |
| LED indication | 2 status LED lights |
| SIM | Nano-SIM |
| Memory | 128Mb internal flash memory |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, Excessive idling detection, Unplug detection, Crash Detection, Trip |
| Sleep modes | Deep Sleep |
| Configuration and firmware update | FOTA WEB, Teltonika Configuration Tool (TCT) |
| SMS | Configuration, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage |
| Brand | Teltonika Telematics |
|---|---|
| Product Type | Networking & Wireless |
| Weight | 0.5 kg |
