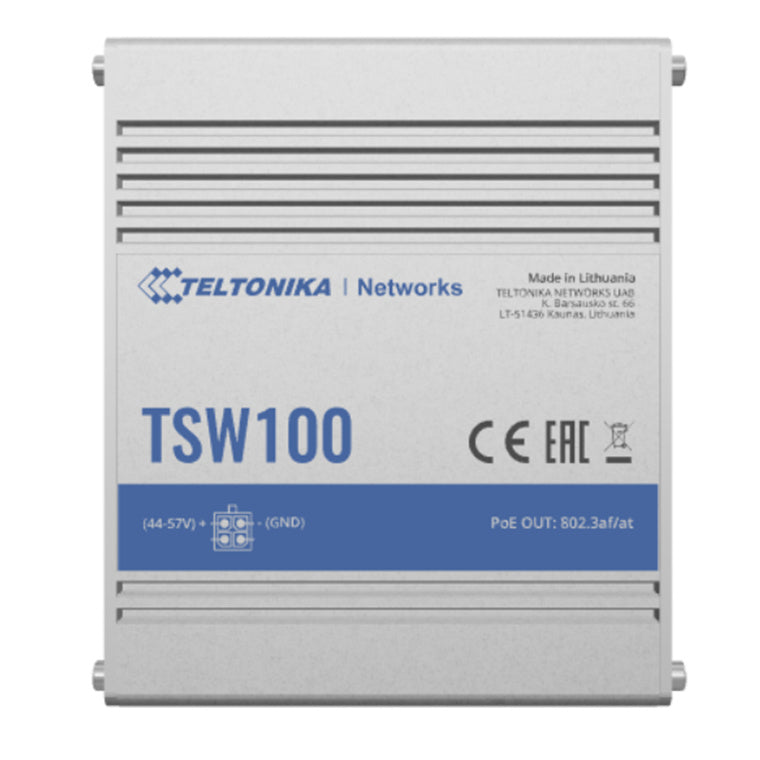

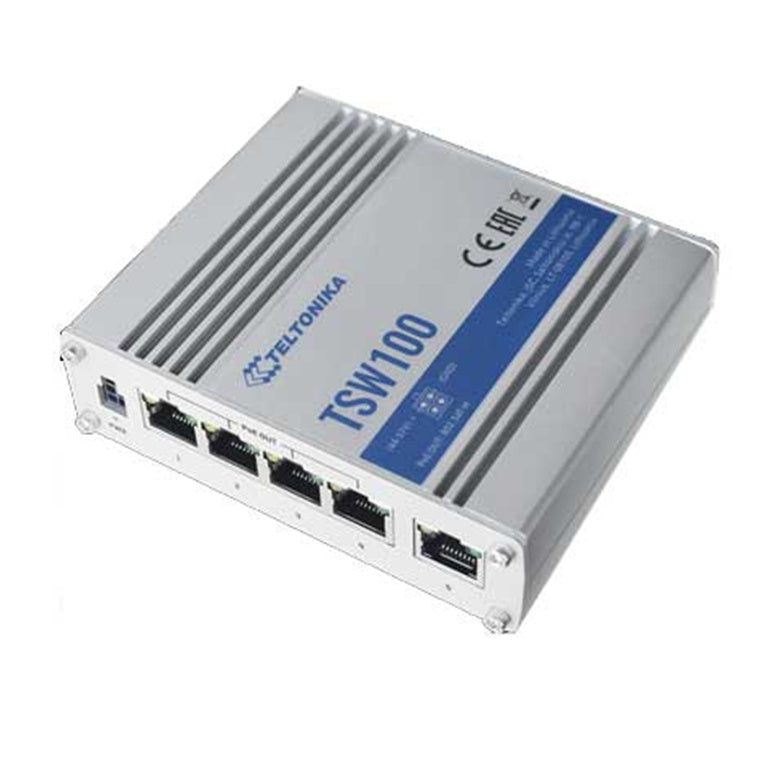

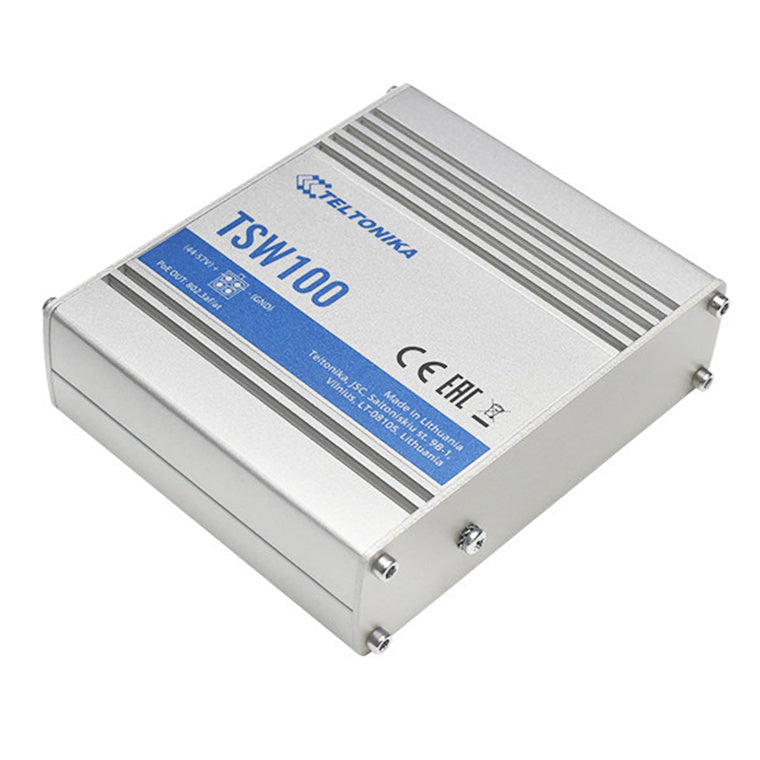

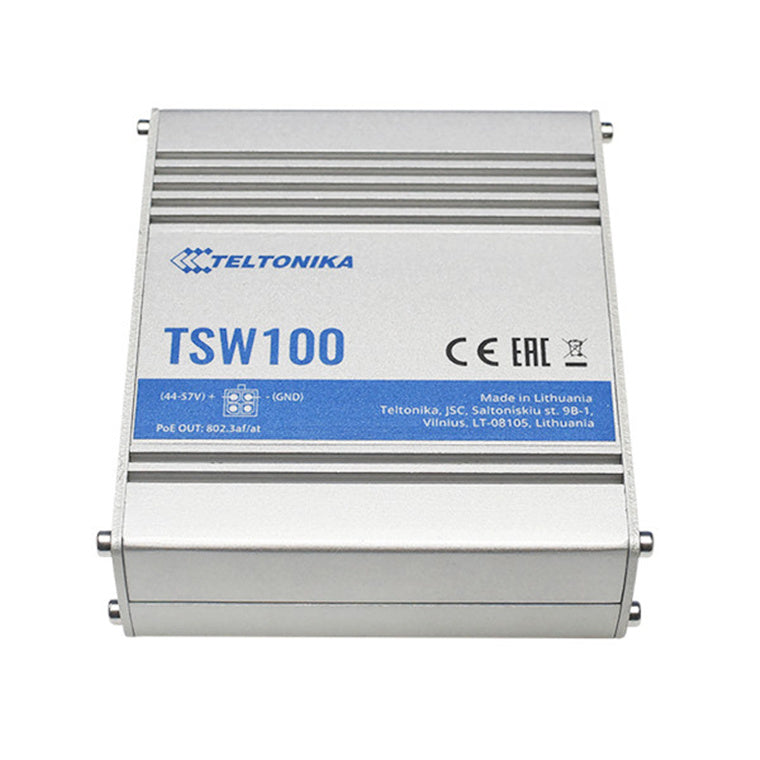

Teltonika TSW100 - 5-Port Industrial Gigabit Ethernet PoE Switch 4x 802.3af/at PoE Ports
Teltonika TSW100 - 5-Port Industrial Gigabit Ethernet PoE Switch 4x 802.3af/at PoE Ports
Features
TSW100 INDUSTRIAL UNMANAGED POE+ SWITCH
- POE: 4 x PoE ports with 802.3af and 802.3at support
- DURABILITY: Rugged aluminium housing
- MOUNTING: DIN rail and surface mounting options
- POWER BUDGET: Total power budget at PSE up to 120 W
- ETHERNET: 5 x Gigabit Ethernet with speeds up to 1000 Mbps
- PLUG-N-PLAY: No additional configuration needed
MEET THE TSW100
- TSW100 is the first industrial unmanaged switch from Teltonika Networks.
- Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE).
- Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power.
- It has 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution.
- Ideal for professional high bandwidth applications to provide both: reliable data connection and power supply.
Specifications
Technical Specifications
| LAN | 5 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
|---|---|
| PoE ports | Port 1- 4 |
| PoE standards | 802.3af and 802.3at |
| PoE Max Power per Port (at PSE) | 30 W |
| Total PoE Power Budget (at PSE) | 120 W |
| Bandwidth (Non-blocking) | 10 Gbps |
| Packet buffer | 128 KB |
| Jumbo frame support | 9216 bytes |
| MAC address table size | 2K entries |
| Connector | 4 pin industrial DC power socket |
| Input voltage range | 7-57 VDC |
| Input voltage range for PoE | 44-57 VDC |
| Power consumption (idle/max no PoE/max) | 2 W/9 W/129 W |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LED's | 1 x Power LED, 10 x LAN status LED's |
| Power | 1 x 4 pin DC connector |
| Ground | 1 x Grounding screw |
| Casing material | Full aluminum housing |
| Dimensions (W x H x D) | 115 x 32 x 95 mm |
| Mounting | DIN rail or wall mounting (additional kit needed), flat surface placement |
| Operating temperature | -40 °C to +75 °C |
| Operating humidity | 10 % to 90 % non condensing |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | Teltonika |
|---|---|
| Product Type | B2B - Networking & Routing |
| Weight | 0.5 kg |
