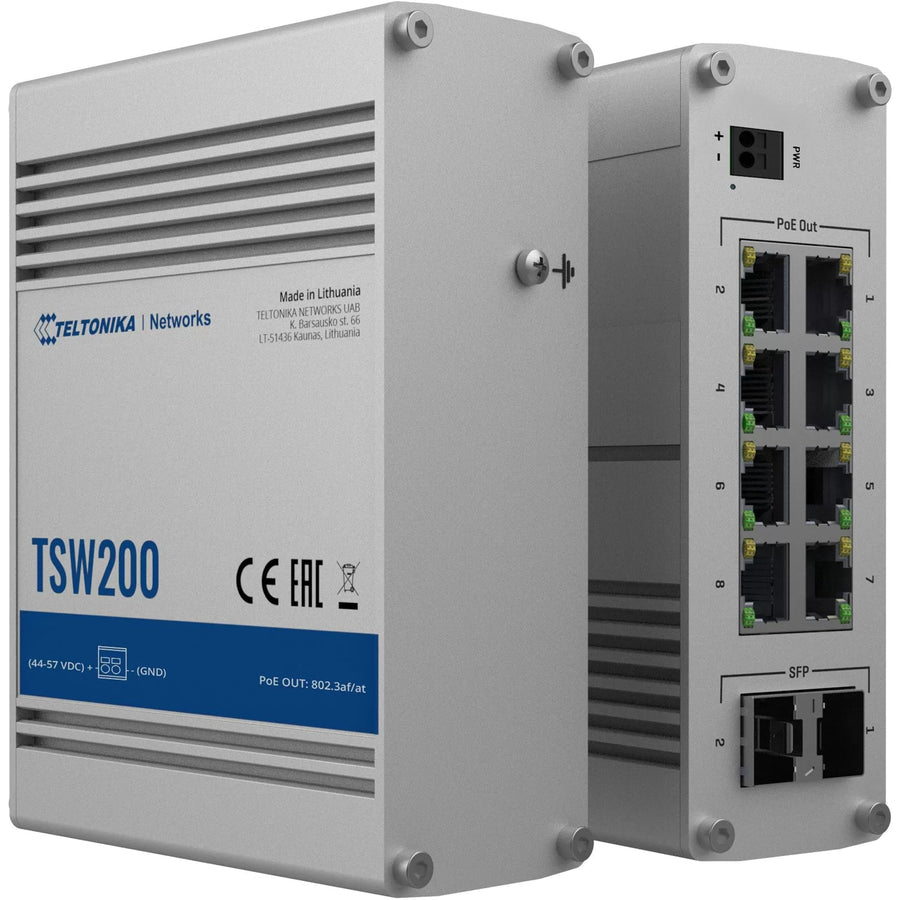

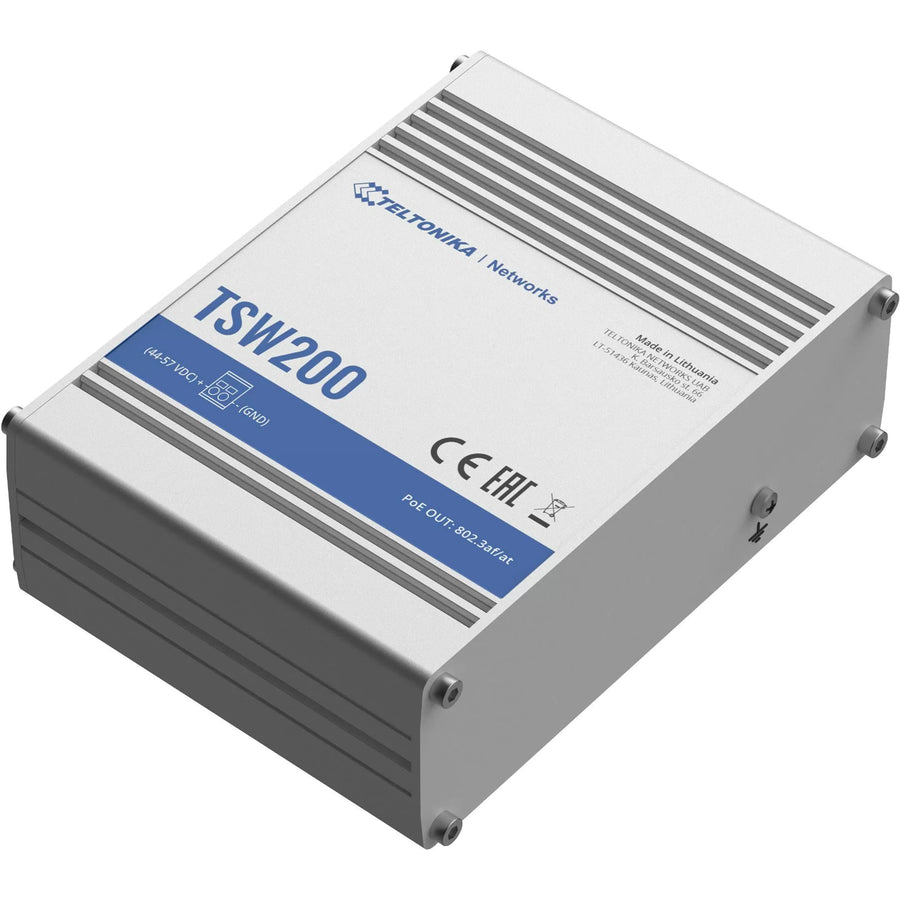

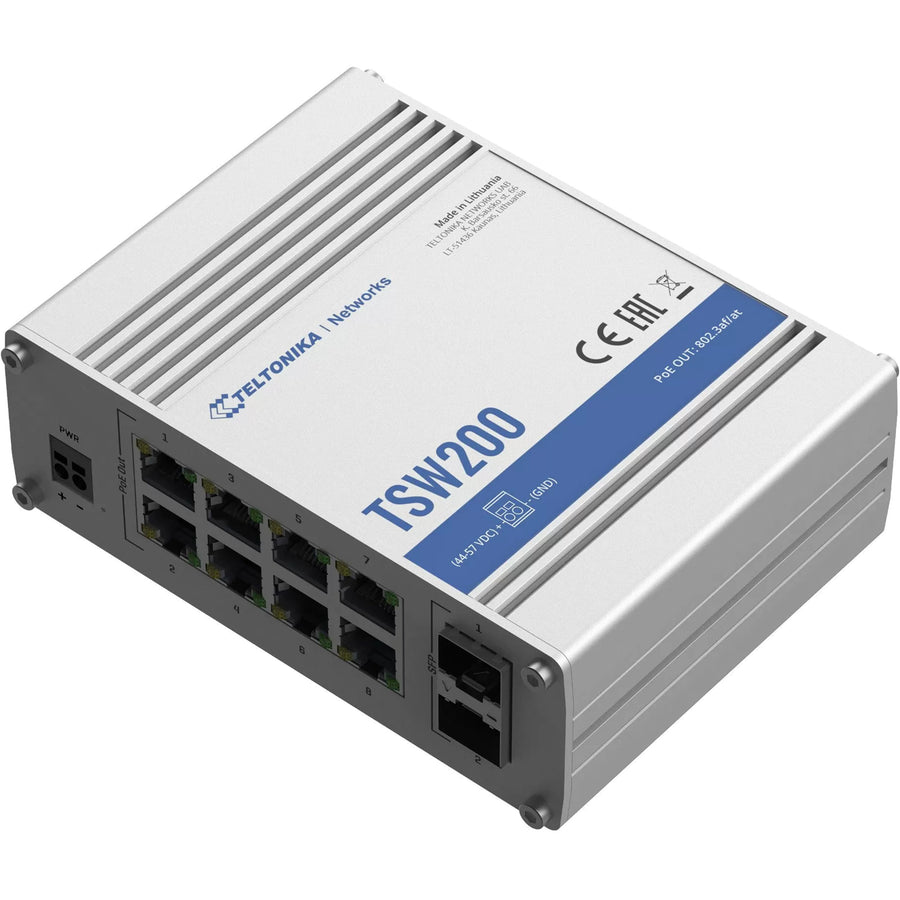

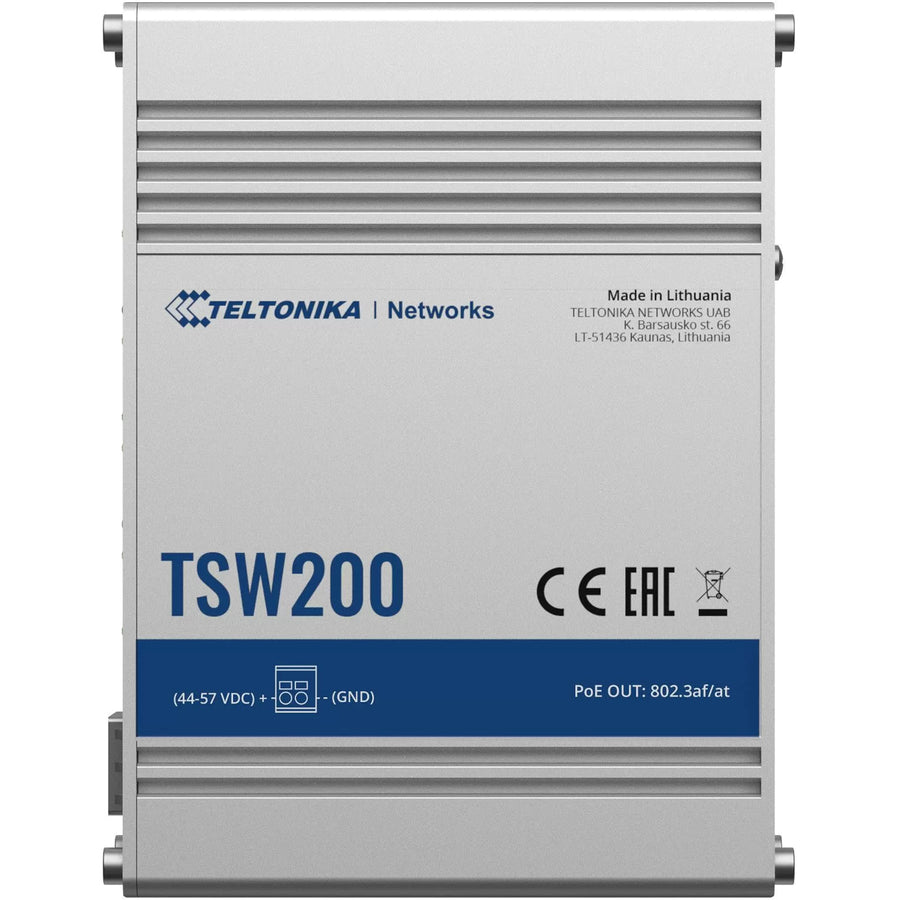

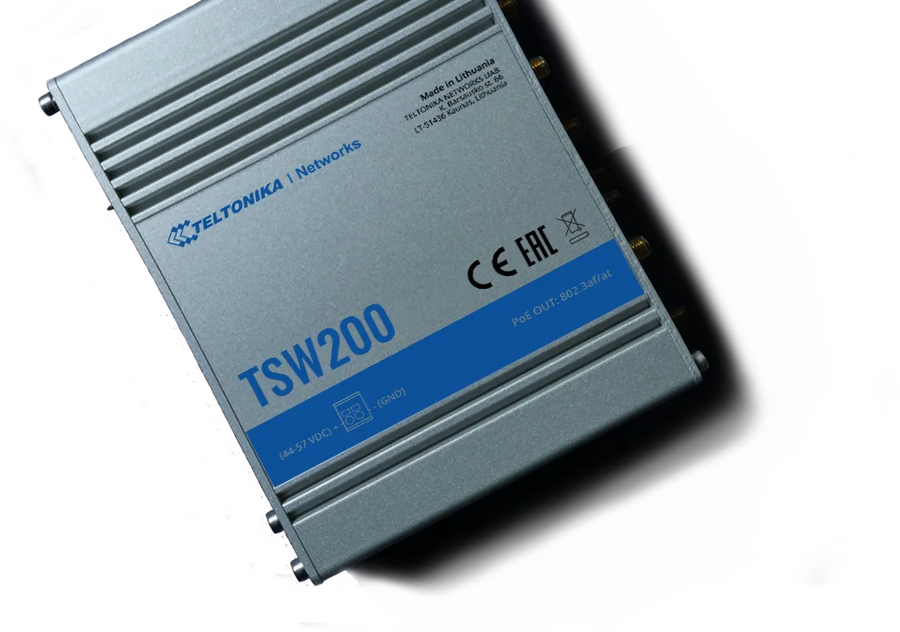

Teltonika TSW200 - 8-Port Industrial Gigabit Ethernet PoE+ Switch with 2x SFP (no PSU)
Teltonika TSW200 - 8-Port Industrial Gigabit Ethernet PoE+ Switch with 2x SFP (no PSU)
Features
TSW200 - INDUSTRIAL UNMANAGED POE+ SWITCH
POE+
8x PoE ports with 802.3af and 802.3at support
SFP
2 x SFP ports for long-range Fiber-optic communication
ETHERNET
8 x Gigabit Ethernet with speeds up to 1000 Mbps
POWER BUDGET
Total power budget at PSE up to 240 W
DURABILITY
Rugged aluminium housing
MOUNTING
DIN rail and surface mounting options
MEET THE TSW200
TSW200 is industrial unmanaged switch from Teltonika Networks.
TSW200 is equipped with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports which support IEEE802.3af and IEE802.3at Power-over-Ethernet standards.
Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.
This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.
Specifications
Technical Specifications
| LAN | 8 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
|---|---|
| Fiber | 2 x SFP ports |
| PoE ports | Port 1 - 8 |
| PoE standards | 802.3af and 802.3at |
| PoE Max Power per Port (at PSE) | 30 W |
| Total PoE Power Budget (at PSE) | 240 W |
| Bandwidth (Non-blocking) | 20 Gbps |
| Packet buffer | 128 KB |
| MAC address table size | 2K entries |
| Jumbo frame support | 9216 bytes |
| Connector | 2 pin industrial DC power socket |
| Input voltage range | 7-57 VDC |
| Input voltage range for PoE | 44-57 VDC |
| Power consumption (idle/max no PoE/max) | 1,81 W/5.5 W/245.5 W |

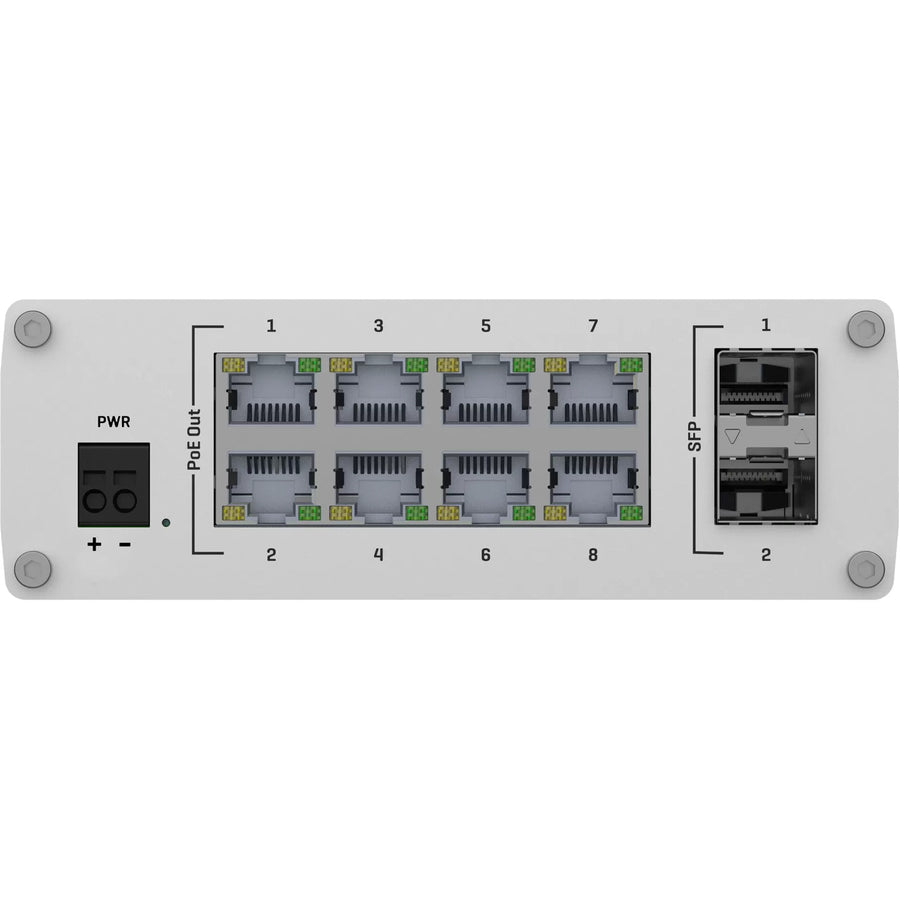

| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| Fiber | 2 x SFP ports |
| Status LED's | 1 x Power LED, 16 x LAN status LED's 2 x SFP status LED's |
| Power | 1 x 2 pin industrial DC power socket |
| Ground | 1 x Grounding screw |
| Casing material | Full aluminum housing |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Weight | 456 g |
| Mounting | DIN rail or wall mounting (additional kit needed), flat surface placement |
| Operating temperature | -40 °C to +75 °C |
| Operating humidity | 10 % to 90 % non condensing |
| Ingress Protection Rating | IP30 |
