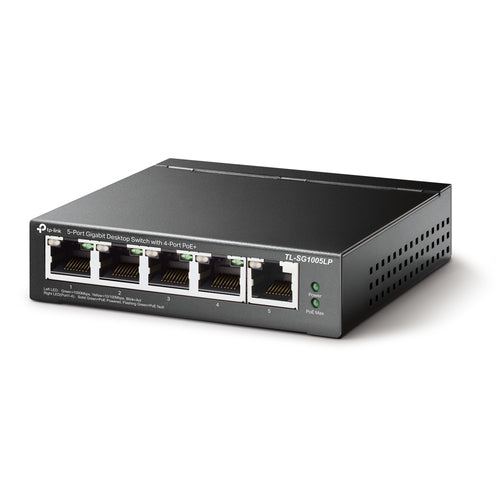

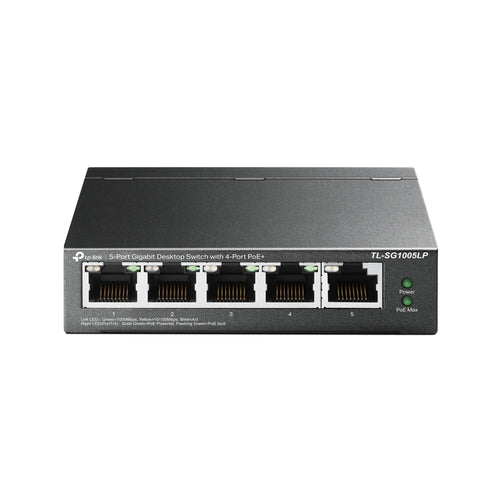

TL-SG1005LP - TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch With 4-Port PoE
Features
Professional 5-Port Gigabit Switch with 4 PoE+ Ports
Plug and Play, with PoE power supply which meets the needs of diverse devices.


Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget* for the 4x PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Plug and Play, No Configuration Required

Intelligent Power Management
When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing
The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.

Specifications
Technical Specifications
| Interface | 5× 10/100/1000Mbps RJ45 PortsAUTO NegotiationAUTO MDI/MDIX |
|---|---|
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100O STP (maximum 100m)100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100O STP (maximum 100m)1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100O STP (maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 0.81 A) |
| Packet Forwarding Rate | 7.44 Mpps |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliantPoE Ports: Ports 1-4Power Supply: 40 W |
| Mac Address Table | 2K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 10 Gbps |
| Dimensions ( W x D x H ) | 3.9×3.9×1.0 in (99.8×98×25 mm) |
| Max Power Consumption | 4.12 W (220/50 Hz. no PD connected)47.5 W (220/50 Hz. with 40 W PD connected) |
| Max Heat Dissipation | 14.05 BTU/h (no PD connected)161.98 BTU/h (with 40 W PD connected) |
| Advanced Features | Compatible With IEEE 802.3af/at Compliant PDsMac Address Auto-Learning And Auto-AgingIEEE 802.3x Flow Control802.1p/DSCP QoSIGMP Snooping |
| Transfer Method | Store-And-Forward |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SG1005LPPower AdapterInstallation Guide |
| Environment | Operating Temperature: 0-40 C (32-104 F);Storage Temperature: -40-70 C (-40-158 F)Operating Humidity: 10-90% RH non-condensingStorage Humidity: 5-90% RH non-condensing |
| Brand | TP-Link |
|---|---|
| Product Type | Networking > Switches |
| Weight | 0.75 kg |
| Warranty |
|---|
