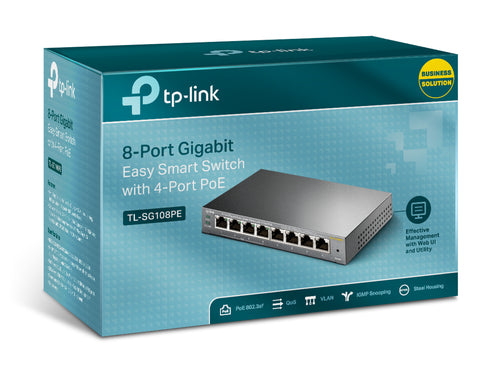

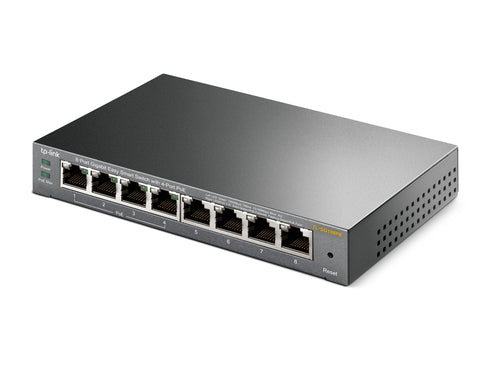

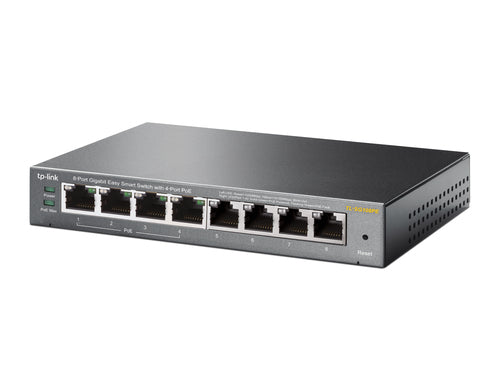

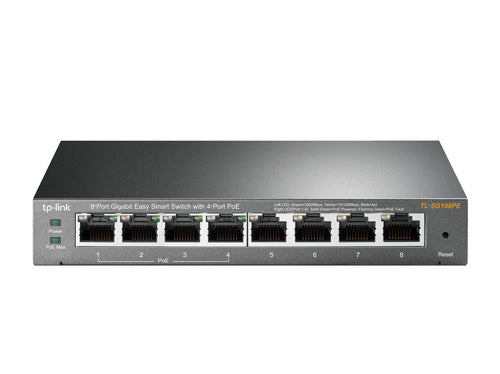

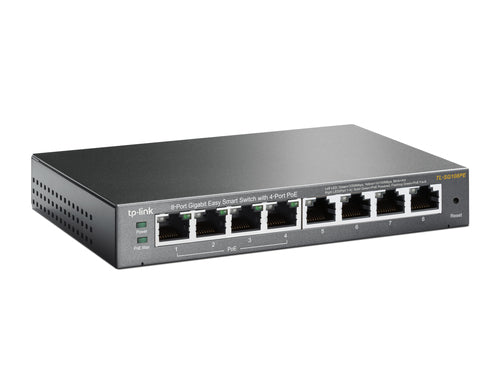

TL-SG108PE - TP-LINK SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE

TP-Link

TL-SG108PE - TP-LINK SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE

SKU: TL-SG108PE ● In Stock

$103.87

Free shipping over $299 Genuine product 7-day returns

📄 Download Official Datasheet (PDF)

TL-SG108PE - TP-LINK SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE

Overview

PoE Switches for Your Ultra Convenience
8-Port Gigabit Easy Smart Switch with 4-Port PoE

Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Management Made Easy
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

8 10/100/1000Mbps RJ45 ports
Equipped with 4 802.3af PoE ports with up to 15.4W for each port, data and power can be transferred on one single cable
Supports PoE power up to 55W for all PoE ports
Provides network monitoring, traffic prioritization and VLAN features
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and Easy Smart Configuration Utility simplify configuration

Technical Specifications

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Y
Web-based management	Y
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
Networking standards	IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
10G support	N
Cable types supported	Cat3,Cat4,Cat5,Cat5e,Cat6
Port mirroring	Y
Link aggregation	Y
Broadcast storm control	Y
Rate limiting	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
VLAN support	Y
Virtual LAN features	Port-based VLAN
Number of VLANs	32
Switching capacity	16
Forwarding rate	11.9
MAC address table	4000
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	15000
Packet forwarding rate (1 Gbps)	11900000
Packet buffer memory	1.5
IGMP snooping	Y
Loop protection	Y
Product colour	Black
LED indicators	Activity,Link,PoE,Power,Speed,Status
Power source	DC
Power supply included	Y
AC input voltage	220
AC input frequency	50
Input current	1.25
Input voltage	48
Power consumption (max)	65.2
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet plus (PoE+) ports quantity	4
Power over Ethernet (PoE) power per port	15.4
Total Power over Ethernet (PoE) budget	64
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 90
Storage relative humidity (H-H)	5 - 95
Heat dissipation	256.19
Width	158
Depth	101
Height	25
Cables included	AC
User guide	Y
Package type	Box
Package width	131
Package depth	196
Package height	121
Package weight	860
Certification	FCC, CE, RoHS
Harmonized System (HS) code	85176990
