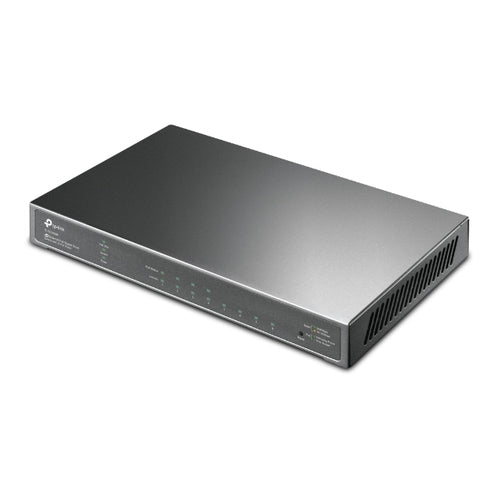

TL-SG2008P - TP-LINK TL-SG2008P, JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+ w/ Omada SDN Supported 62w
TL-SG2008P - TP-LINK TL-SG2008P, JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+ w/ Omada SDN Supported 62w
Overview
Smarter Switching for Smarter Results
JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+
Multiple Application Scenarios
The TL-SG2008P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
Power over Ethernet for Simplified Network Deployment
Features four 802.3af/at compliant PoE+ ports, the switch supports up to 62 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
- 62 W PoE Budget: 4× 802.3at/af-compliant PoE+ ports with a total power supply of 62 W*
- Full Gigabit Ports: 4× gigabit PoE+ ports and 4× gigabit non-PoE ports provide high-speed connections
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
Technical Specifications
| Switch type | Managed |
|---|---|
| Switch layer | L2/L2+ |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| System event log | Y |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (copper) ports quantity | 8 |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| 10G support | N |
| Port mirroring | Y |
| Flow control support | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| VLAN support | Y |
| Number of VLANs | 4094 |
| Switching capacity | 16 |
| MAC address table | 8000 |
| Number of queues | 8 |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.5 |
| DHCP features | DHCP client,DHCP relay,DHCP snooping,DHCPv6 server,DHCPv6 snooping |
| IGMP snooping | Y |
| Security algorithms | 802.1x RADIUS |
| MAC address filtering | Y |
| Authentication | MAC-based authentication,Web-based authentication |
| Authentication type | RADIUS |
| Multicast support | Y |
| Management protocols | SNMPv1/v2c/v3 |
| IPv4 & IPv6 features | IPv6 Telnet,IPv6 ping,IPv6 tracert |
| Rack mounting | Y |
| Product colour | Black |
| LED indicators | Y |
| Fanless | Y |
| Power supply included | Y |
| Power consumption (max) | 77.3 |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 263.6 |
| Width | 209 |
| Depth | 126 |
| Height | 26 |
| Manual | Y |
| Package type | Box |
| Package width | 240 |
| Package depth | 315 |
| Package height | 70 |
| Package weight | 1260 |
| Certification | CE, FCC, RoHS |
| Harmonized System (HS) code | 85176990 |
Official Product Video
