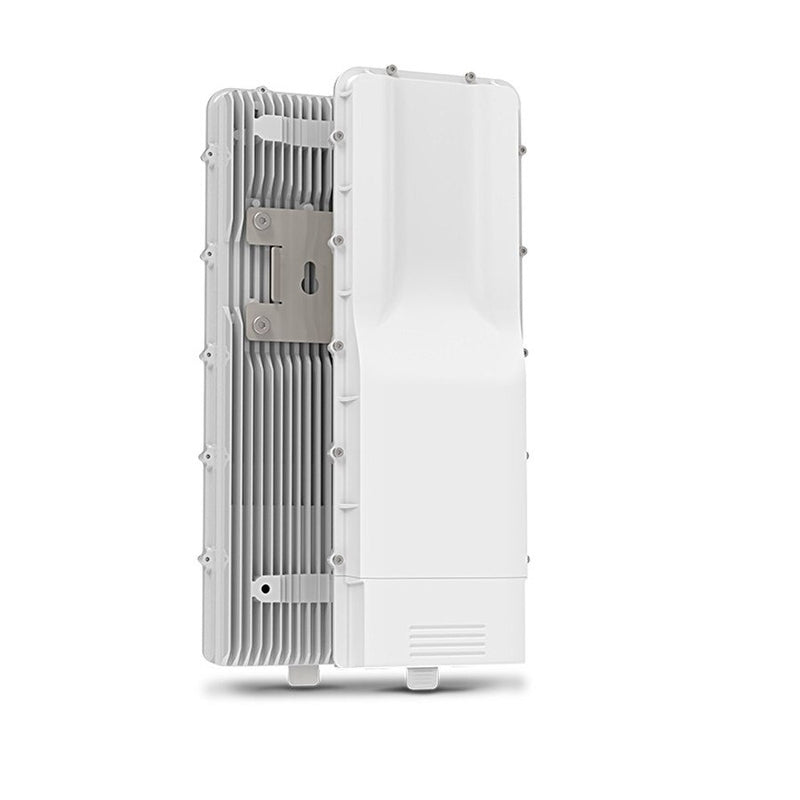

TNA-301 - Tachyon Networks TNA-301 60 GHz Outdoor 120° Beamforming Access Point with 2.5GbE
Tachyon Networks

TNA-301 - Tachyon Networks TNA-301 60 GHz Outdoor 120° Beamforming Access Point with 2.5GbE

SKU: TNA-301 ● In Stock
$640.41
Free shipping over $299 Genuine product 7-day returns

TNA-301

TNA-301 - Tachyon Networks TNA-301 60 GHz Outdoor 120° Beamforming Access Point with 2.5GbE

Description

Tachyon Networks TNA-301 60 GHz Outdoor 120° Beamforming Access Point with 2.5GbE.

Get fiber-like speeds using the 60GHz band: 2+ Gbps can be achieved and distances of up to 1 km without trenching, permits, or licenses - all with quick and easy aiming using 3D beamforming.

Upper-band support: All models support the full 60GHz band, including channels 5 and 6 (57-71 GHz), enabling longer links and increased co-location opportunities.

3D beamforming makes installation easy: The TNA-301's 3D beamforming antennas enable automatic alignment decreasing installation times from hours to minutes.

Best overall affordability: The low cost of the TNA-30x product family, combined with high subscriber density and quick installation, greatly decreases total cost of ownership for service providers.
Features
  • 60GHz PTP+PTMP AP/Client
  • Beamforming antenna range: 120° x 50°
  • Operating mode options: Access Point/Station (software controllable)
  • Channels 1-6 (57-71GHz)
  • 2.3 Gbps+ aggregate throughput
  • Connect up to 32 clients
  • Supports 48V Passive PoE Output on Secondary Port (requires a 48V 1A or similar spec PoE adapter)

Specifications

Details
Manufacturer's Code TNA-301-AU
Default operating mode Access Point
Beamforming Antenna 120° x 50°
Operating modes Station, Access Point (software configurable).
Max STA count per AP Up to 32 stations
TX Power 40dBm EIRP
Link encryption AES+GCMP
Frequency & supported channels Full band: 57-71 GHz: channels: 1-6, Half channels: 1-11 (see notes on support site about half channel support)
Channel size options Full (2 GHz), half (1 GHz) (see notes on support site about half channel support)
Station scheduling TDMA: dynamic scheduling mechanism
Integrated Antenna 20 dBi 3D beamforming phased array with +/- 60° azimuth (120° total) and +/- 25° elevation (50° total). Beam size is: 23° azimuth x 12° elevation. Vertical polarization
Max MTU size 7900 b
Networking mode Transparent bridge
VLAN capabilities Data VLAN (in station mode) & management VLAN
Other features Traffic shaping (station mode), DHCP snooping, device discovery, speedtest, and more
IPv4/IPv6 support Both are supported
Management Web interface, SNMP v2 & v3, SNMP traps, & RESTful API (SSH available upon request)
Interfaces 1 x 2.5G ethernet, 1 x 1G ethernet, & 1 DC input screw terminal
Mount Pole or wall mountable via mounting backplate
Input power Passive PoE 38-52V, included 48V 0.5A PoE adapter and cable
Output power On 1G port: passive PoE out w/max 0.5A
Max power consumption 17W w/o PoE out in use, and 41W with it in use
Operating temperature -30°C - 60°C
Unit dimensions & weight Height: 28cm, Width: 10.2 cm, Depth: 5.1cm, 695 g
LEDs Ethernet link status, wireless status, signal level, & power
