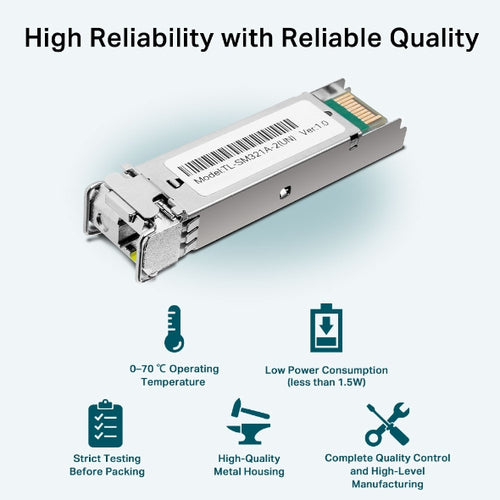

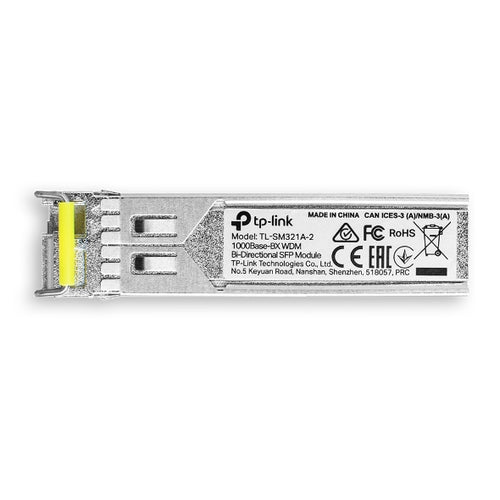

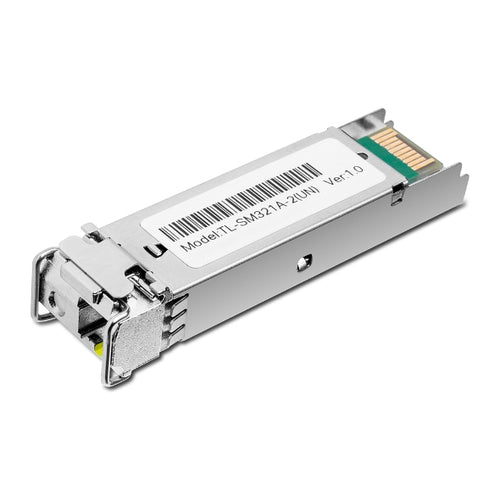

TP-Link TL-SM321A-2 - TP LINK 1000Base-BX WDM Bi-Directional SFP Module
You May Also Like
StarTech.com HPE J9150D Compatible SFP+ Module - 10GBASE-SR - 10GbE Multi Mode (MMF) Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 300m - 850nm - DDM HPE FlexFabric, 6120XG, 6120G
StarTech.com HPE JD094B Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode (SMF) Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM HPE 5900, 12500, 5500
Features
1000Base-BX WDM Bi-Directional SFP Module TL-SM321A
TP-LINK's TL-SM321A adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km with TP-LINK's Routers, Switches, Media Converters to provide high speed and stability.

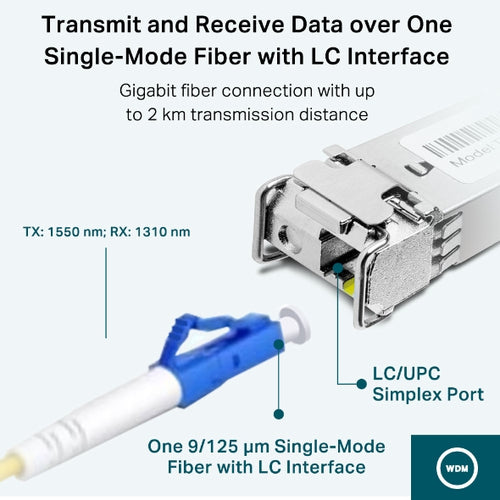

-Supports WDM Bi-Directional technology, using a single strand of fiber
-TX: 1550nm / RX: 1310nm
-Internal +3.3V Power Supply

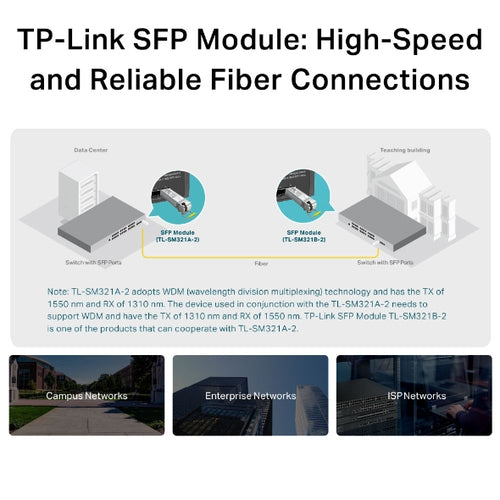

-In pairs with TL-SM321B
-Plug-and-Play

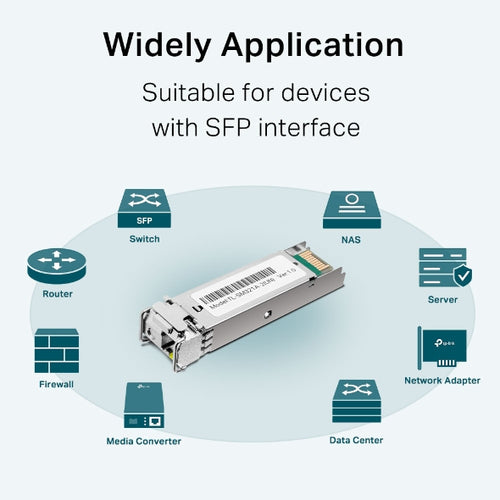

-Suitable Products: TL-SG5428, TL-SL5428E, TL-SG3210/3216/3424/3424P, TL-SL3428/3452, TL-SG2216/2424, TL SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and MC200L
Specifications
Technical Specifications
| Standards and Protocols | IEEE 802.3z, CSMA/CD, TCP/IP |
|---|---|
| Wave Length | TX: 1550nm / RX: 1310nm |
| Cabel | Single-mode Fiber |
| Power Supply | 3.3V |
| Fiber Type | 9/125 um Single-mode |
| Max. Cable Length | 10km |
| Data Rate | 1.25Gbps |
| Port Type | LC |
| Safety & Emission | FCC, CE |
| Operating Temperature: | 0~70C (32~158F) |
| Storage Temperature: | -40~80C (-40~176F) |
| Operating Humidity: | 10%~90% non-condensing |
| Storage Humidity: | 5%~90% non-condensing |
| Brand | TP-Link |
|---|---|
| Product Type | Networking > Fiber Connectivity > SFP Modules |
| Weight | 0.5 kg |
| Warranty |
|---|
