TSW101 - Teltonika TSW101 4+1 Port Gigabit Unmanaged 9 - 30V DC in to 802.3af/at PoE Out Switch for Solar and Automotive Applications

Teltonika

TSW101 - Teltonika TSW101 4+1 Port Gigabit Unmanaged 9 - 30V DC in to 802.3af/at PoE Out Switch for Solar and Automotive Applications

SKU: TSW101 ● In Stock

$180.09

Free shipping over $299 Genuine product 7-day returns

TSW101 - Teltonika TSW101 4+1 Port Gigabit Unmanaged 9 - 30V DC in to 802.3af/at PoE Out Switch for Solar and Automotive Applications

Features

TSW101 - AUTOMOTIVE POE+ SWITCH

Our first-ever switch for the automotive industry features five Gigabit Ethernet ports with PoE+ support to connect multiple devices to the network and power them up using the same interfaces. Enjoy reliable high bandwidth connectivity in a simple, economical, and easy-to-install solution.

PLUG AND PLAY

No configuration needed

POE+

4 x PoE+ ports with 802.3af and 802.3at support

GIGABIT ETHERNET

5 x Gigabit Ethernet ports with speeds of up to 1000 Mbps

INDUSTRIAL DESIGN

Rugged aluminum housing

Specifications

Technical Specifications

LAN	5 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
PoE ports	Port 1- 4
PoE standards	802.3af and 802.3at
PoE Max Power per Port (at PSE)	30 W
Total PoE Power Budget (at PSE)	60 W
Maximum Ethernet cable length	100 m
Bandwidth (Non-blocking)	10 Gbps
Packer buffer	128 KB
MAC address table size	2K entries
Jumbo frame support	9216 bytes
Connector	2-pin industrial DC power socket
Input voltage range	9 - 30 VDC
Input voltage range for PoE	9 - 30 VDC
Power consumption	Idle: 0.64 W / Max: 2.31 W / PoE Max: 60 W

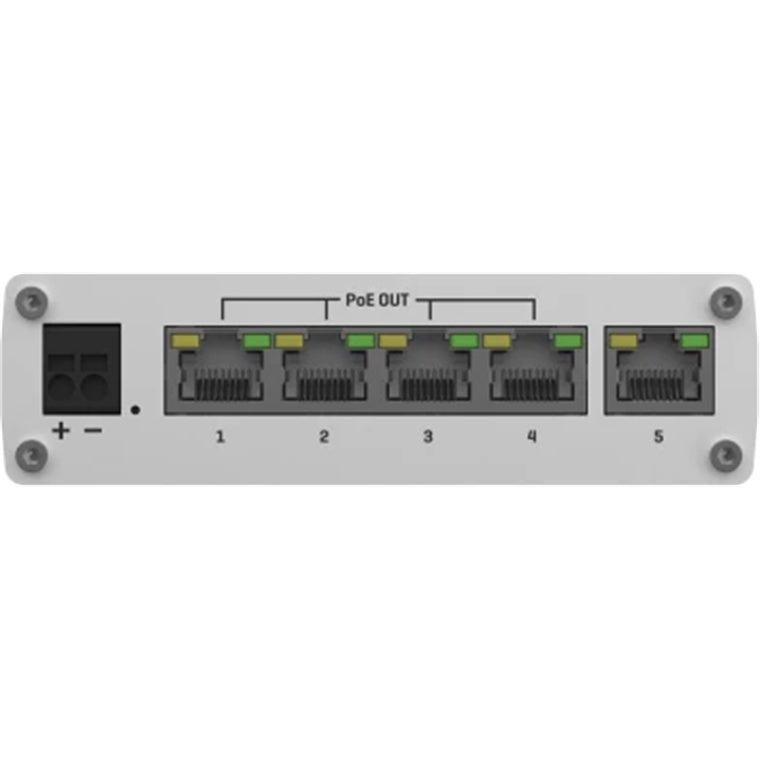

Ethernet	5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs	1 x Power LED, 10 x LAN status LEDs
Power	1 x 2-pin industrial DC power socket
Other	1 x Grounding screw
Casing material	Aluminum housing
Dimensions (W x H x D)	115 x 32 x 95 mm
Weight	384 g
Mounting options	DIN rail or wall mounting (additional kit needed), flat surface placement
Operating temperature	-40 °C to 75 °C
Operating humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30
Regulatory	CE, REACH, RoHS, WEEETSW101 CETSW101 UKCATSW101 FCCTSW101 ICTSW101 CBTSW101 RCME-Mark
Standards	EN IEC 62368-1:2020+A11:2020
