TSW114 - Teltonika TSW114 DIN Rail 5 Port GbE Switch

Teltonika

TSW114 - Teltonika TSW114 DIN Rail 5 Port GbE Switch

SKU: TSW114 ● In Stock

$106.61

Free shipping over $299 Genuine product 7-day returns

TSW114 - Teltonika TSW114 DIN Rail 5 Port GbE Switch

Features

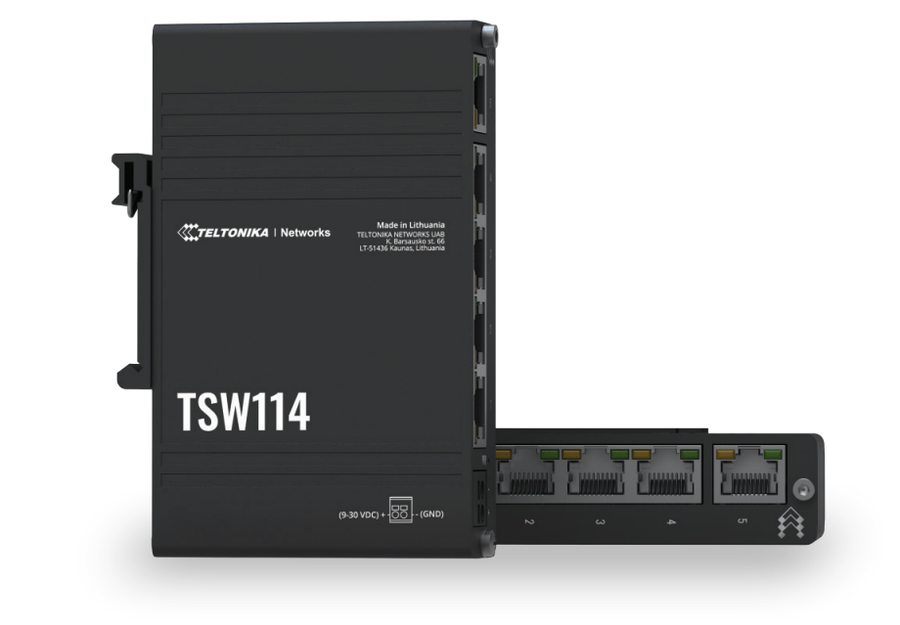

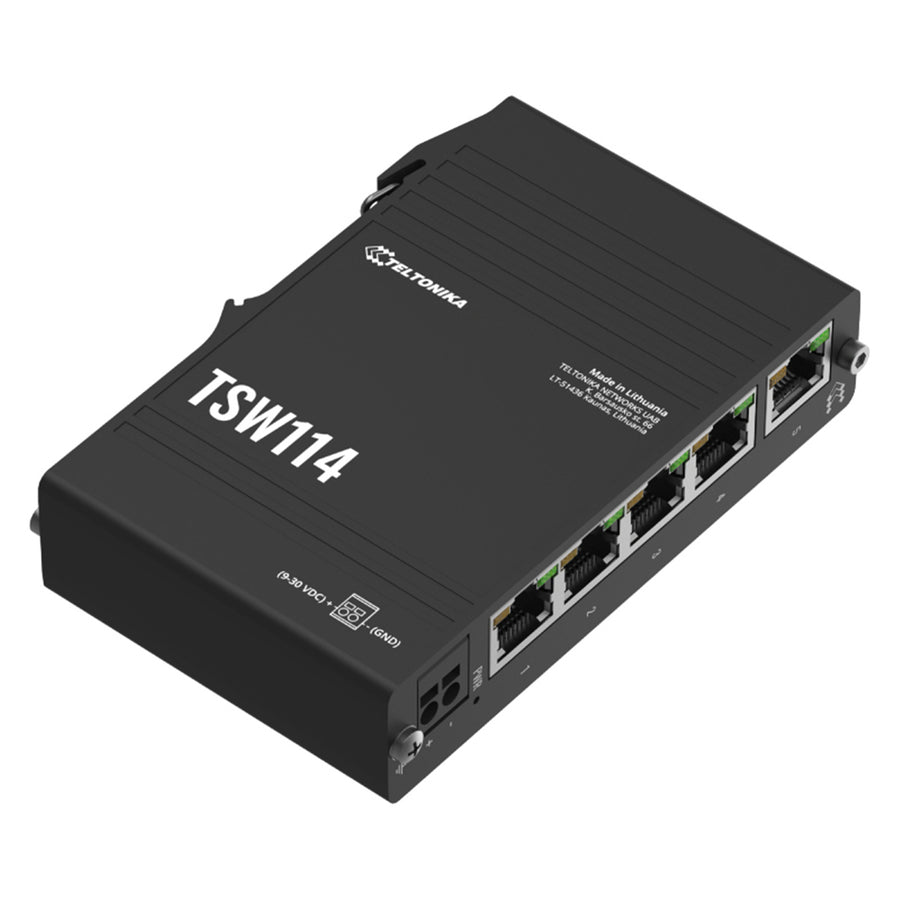

Teltonika TSW114 DIN Rail 5 Port GbE Switch with Rugged Anodized Case

This is an affordable way to simplify your connectivity with its plug and play nature and 5 x Gigabit Ethernet ports that provide stable and reliable connectivity for high-bandwidth solutions. The Ethernet switch has front-facing ports and an integrated DIN rail bracket to enable easy installation across many industrial environments - especially control cabinets.

- 5x Gigabit Ethernet Ports
- Plug and Play, no configuration needed

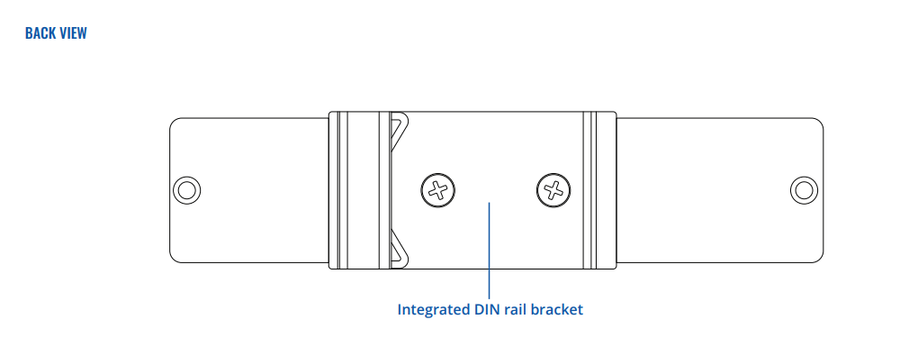

- Integrated DIN rail bracket and surface mounting options
- Anodized aluminium housing and panels

HARDWARE

TSW114 - Gigabit Din Rail Switch | Quick Start Guide

Specifications

Technical Specifications

MPN	TSW114
Included	1 x TSW114, QSG (Quick Start Guide)
Power Supply	Not Included
LAN	5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards	802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Bandwidth (Non-blocking)	10 Gbps
Packer buffer	128 KB
MAC address table size	2K entries
Jumbo frame support	9216 bytes
Connector	2-pin industrial DC power socket
Input voltage range	9 - 30 VDC
PoE (passive)	Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption	Idle: 0.3 W / Max: 2.3 W
Ethernet	5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs	1 x Power LED, 10 x LAN status LEDs
Power	1 x 2-pin industrial DC power socket
Other	1 x Grounding screw
Casing material	Anodized aluminum housing and panels
Dimensions (W x H x D)	113.1 x 27.4 x 80.5 mm
Weight	174 g
Mounting options	Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement
Operating temperature	-40 °C to 75 °C
Operating humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30
Regulatory	CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM, ANRT, GITEKI
Standards	EN IEC 62368-1:2020+A11:2020
