Teltonika

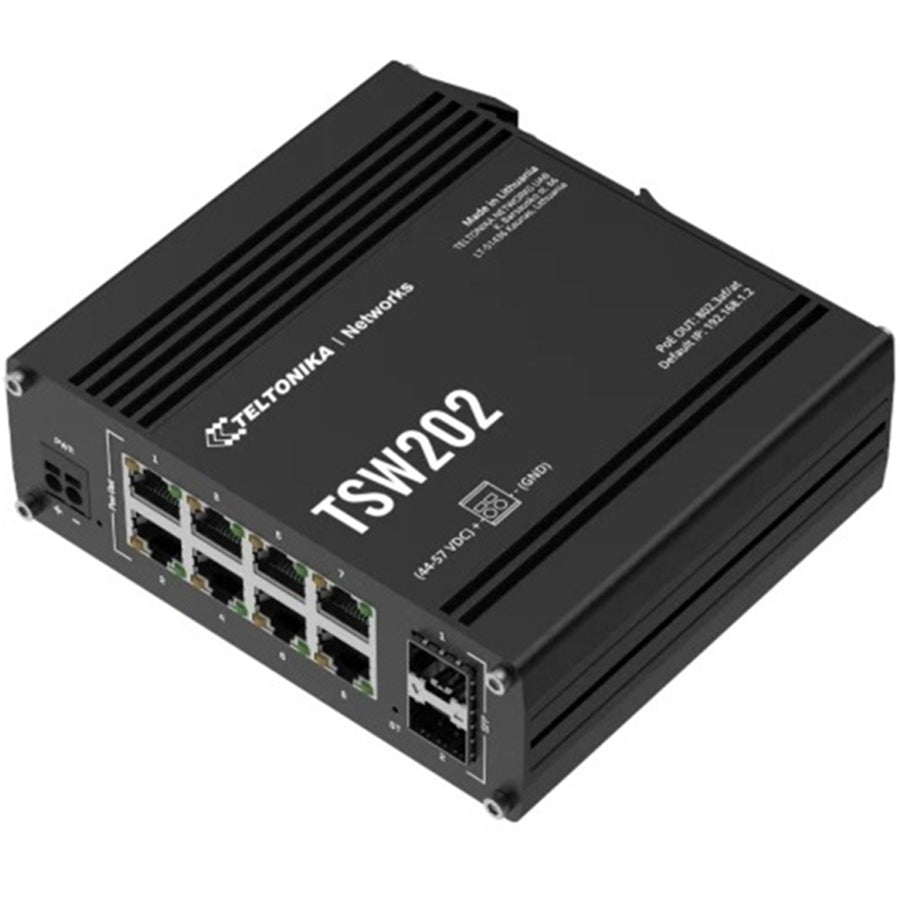

TSW202 - Teltonika TSW202 DIN Rail Mountable Managed PoE+ Switch with 8 x 1Gbps ETH-ports and 2 x SFP
$326.02
Free shipping over $299
Genuine product
7-day returns
TSW202 - Teltonika TSW202 DIN Rail Mountable Managed PoE+ Switch with 8 x 1Gbps ETH-ports and 2 x SFP
Features
TSW202 is a managed PoE+ Ethernet switch, designed to provide granular network management capabilities while centralising power distribution. This PoE+ switch enables flexibility over management and power supply and supports protocols, including EtherNet/IP, PROFINET, and MRP. The TSW202 has 2 SFP ports and 8 Gigabit Ethernet ports providing 30 W of power each.
MANAGED SWITCH
L2 with additional L3 features for enhanced management and control
PoE+ & SFP
8 x port PoE+ switch with 2 x SFP ports for fibre optic communication
PROFINET & MORE
Supports PROFINET for automated data processing alongside other protocols, like EtherNet/IP and MRP
TSWOS
Teltonika Networks OS for switches, intuitively designed for infinite configurations
Specifications
Technical Specifications
| ETH | Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover |
|---|---|
| Fibre | 2 x SFP ports |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3z |
| Profinet | Profinet Class B conformance (available with optional order code) |
| PoE ports | Port 1 - 8 |
| PoE standards | 802.3af and 802.3at Alternative A (From batch 42)802.3af and 802.3at Alternative B (From batch 1-41) |
| PoE Max Power per Port (at PSE) | 30 W |
| Total PoE Power Budget (at PSE) | 240 W |
| Maximum Ethernet cable length | 100 m |
| EtherNet/IP | Yes |
| SNMP V2, V3 | Yes |
| LLDP | Yes |
| Network Management | 802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN |
| MRP | MRP client role, MRP manager role |
| L2 features | Loop protection, Forwarding table, VLAN, STP/RSTP |
| DHCP | DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards |
| Port Settings | Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring |
| L3 Features | Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address |
| Authentication | PAM - preshared key, Radius & TACACS+, IP & login attempts block |
| QOS | Port priority, DSCP priority, 802.1p priority, TOS |
| Scheduling method | SP/WFQ/WRR |
| Bandwidth control | Rate limiting, storm control |
| Traffic Shaper | Port-based shaping |
| Tools | Cable diagnostic, ping, traceroute, nslookup |
| Ping reboot | Capability to restart PoE in a specific port |
| RAM | 128MB, DDR3 |
| FLASH storage | 16 MB serial flash |
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW |
| RMS | Update FW/configuration for multiple devices at once |
| Keep settings | Update FW without losing current configuration |
| Operating system | TSWOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++ |
| Development tools | SDK package with build environment provided |
| Bandwidth (Non-blocking) | 20 Gbps |
| Forwarding rate | 14.88 Mpps |
| Packet buffer | 512 KB |
| MAC address table size | 8K entries |
| Jumbo frame support | 10000 bytes |
| Connector | 2-pin industrial DC power socket |
| Input voltage range | 7 - 57 VDC |
| PoE-out input voltage range | 44 - 57 VDC |
| Power consumption | Idle: < 3 W / Max: 8 W / PoE Max: 248 W |
| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| Fibre | 2 x SFP ports |
| Status LEDs | 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| Reset | Software reset button |
| Other | 1 x Grounding screw |
| Casing material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 132 x 44.2 x 122.2 mm |
| Weight | 610 g |
| Mounting options | Integrated DIN rail bracket; wall mount and flat surface (additional kit needed) |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP30 |
| Note | Power supply not included, requires SEVTTK3200 or equivalent power supply. |
