Teltonika

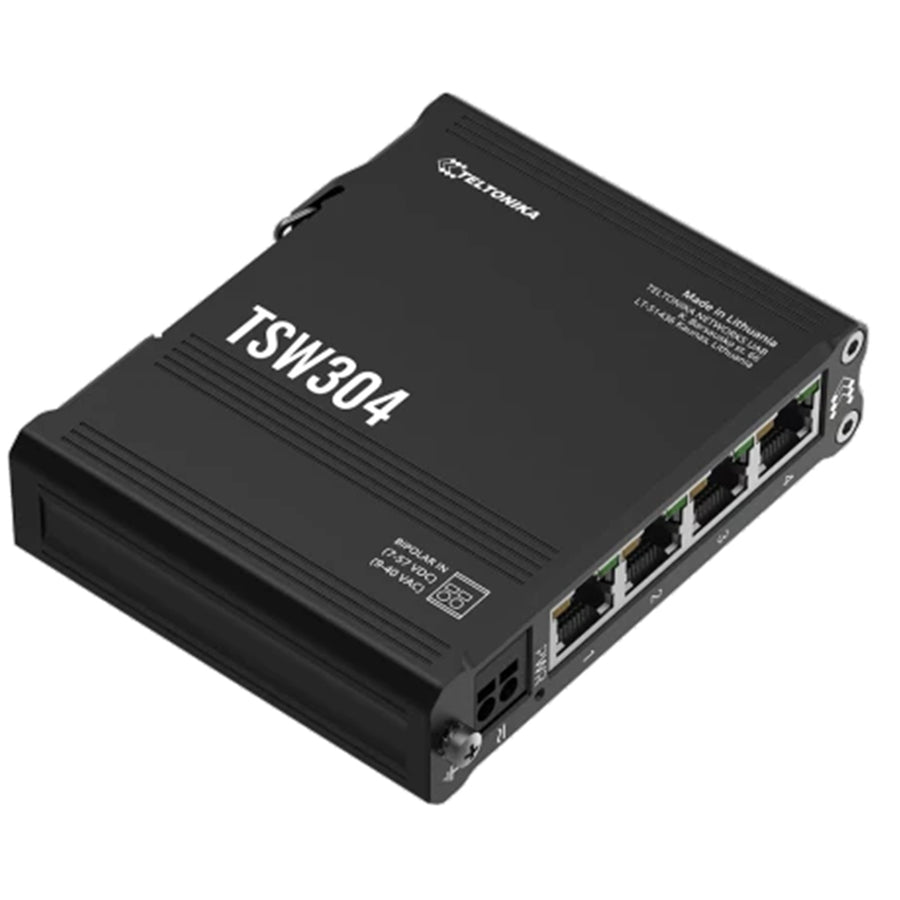

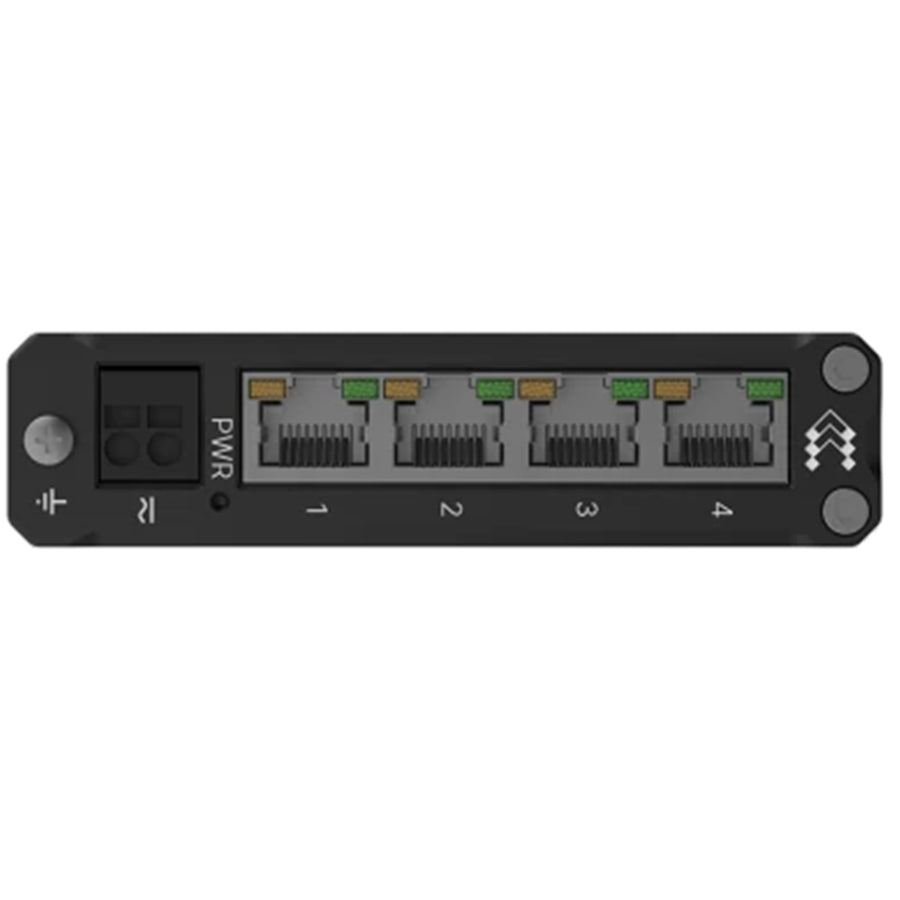

TSW304 - Teltonika TSW304 4+1 Port, Shock Resistant Unmanaged Gigabit network switch, DIN RAIL Mount
$143.86
Free shipping over $299
Genuine product
7-day returns
TSW304 - Teltonika TSW304 4+1 Port, Shock Resistant Unmanaged Gigabit network switch, DIN RAIL Mount
Features
TSW304 is the tiniest Ethernet switch in the Teltonika Networks portfolio, made with the industrial application scenarios in mind. This ultra-small device comes with an integrated DIN rail mounting option and will easily find its place in any server cabinet. Durable design and shock-resistant casing make it perfect for even the most challenging industrial environments.
MOUNTING
Integrated DIN rail bracket and surface mounting options
COMPACT
102 x 25 x 81.5 mm
GIGABIT ETHERNET
4 x Gigabit Ethernet with speeds of up to 1000 Mbps
7-57 VDC / 9-40 VAC
Wide range of supported power supply voltages
Specifications
Technical Specifications
| ETH | 4 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
|---|---|
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Profinet | Profinet Class A conformance (available with optional order code) |
| Bandwidth (Non-blocking) | 8 Gbps |
| Packer buffer | 128 KB |
| MAC address table size | 2K entries |
| Jumbo frame support | 9216 bytes |
| Connector | 2-pin industrial DC power socket |
| Input voltage range | 7 - 57 VDC; 9 - 40 VAC |
| PoE (passive) | Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC |
| Power consumption | Idle: 0.26 W / Max: 1.44 W |
| Ethernet | 4 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 8 x ETH status LEDs, 1 x Power LED |
| Power | 1 x 2-pin industrial DC power socket |
| Other | 1 x Grounding screw |
| Casing material | Aluminium housing |
| Dimensions (W x H x D) | 102 x 25 x 81.5 mm |
| Weight | 210 g |
| Mounting options | Integrated DIN rail bracket; wall mount and flat surface (additional kit needed) |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP30 |
