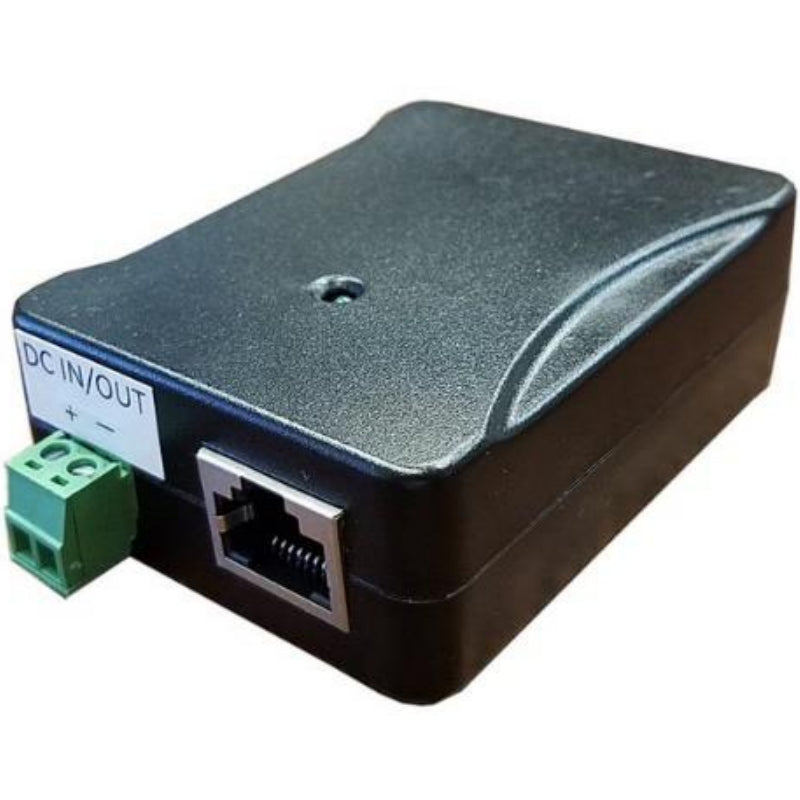

Tycon Systems POE-INJ-1000-WTx - Tycon Power Systems POE-INJ-1000-WTx Gigabit Reverse 8 Wire PoE Injector/Splitter
Tycon Systems

Tycon Systems POE-INJ-1000-WTx - Tycon Power Systems POE-INJ-1000-WTx Gigabit Reverse 8 Wire PoE Injector/Splitter

SKU: POE-INJ-1000-WTx ● In Stock
$41.00
Free shipping over $299 Genuine product 7-day returns

POE-INJ-1000-WTx

Tycon Systems POE-INJ-1000-WTx - Tycon Power Systems POE-INJ-1000-WTx Gigabit Reverse 8 Wire PoE Injector/Splitter

Description

The POE-INJ-1000-WT(x) are shielded passive power over Ethernet Inserters and Splitters that are compatible with data speeds up to 1 gigabit. The DC connector is a removeable wire terminal type power connector. The RJ45 connectors are shielded to ensure continuous shielding from power source to destination device. Power is supplied on all 8 Ethernet pins (4 Pair) This allows for transport of up to 130W over a single CAT5/6 wire up to 100m.

Gigabit PoE Injector/Splitter with LED for power. Injects or splits DC power on all 8 wires. 1,2,7,8(-) and 3,6,4,5(+) Wire terminal connector. Black Color. 2.25A.
Features
  • High Power Shielded Design (uses all 4 pairs)
  • 10/100/1000Mb Compatible
  • Removeable Wire Terminal Connector
  • 5VDC to 58VDC Power Over Ethernet
  • Power On LED indicator

Specifications

Details
Manufacturer's Product Code POE-INJ-1000-WTx
DC Input Voltage 5V to 58VDC
Data Speeds 10/100/1000Mb
DC Input Connector Removeable Wire Terminal Connector – Maximum Wire Size 14AWG
Maximum PoE Current 2.25A 130W Max
RJ45 PoE Pinout 3,6,4,5 (V+); 1,2,7,8 (V-)
Dimensions (LxWxH) 71 x 53 x 24mm
Weight 65g
