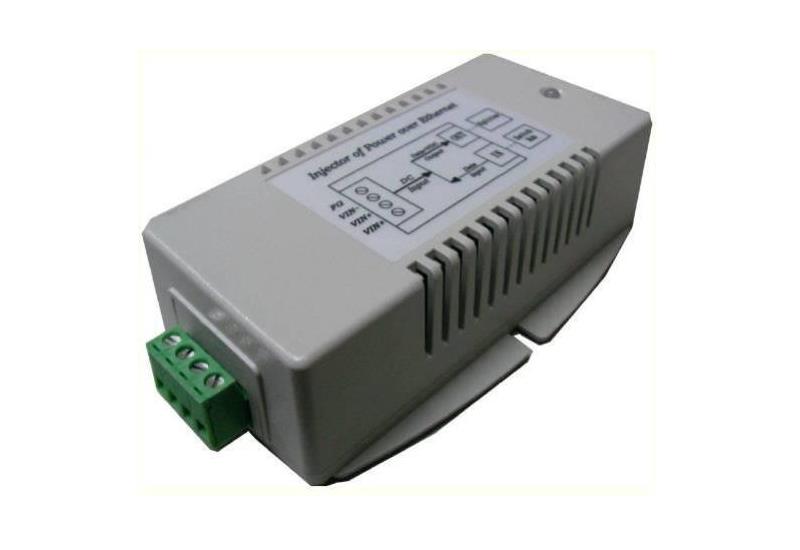

Tycon Systems TP-DCDC-2456GVHP - Tycon 18-36VDC In, 56VDC 70W Passive Out Gigabit Ethernet DC to DC Converter - airFiber Compatible (TP-DCDC-2456G-VHP)
Tycon Systems

Tycon Systems TP-DCDC-2456GVHP - Tycon 18-36VDC In, 56VDC 70W Passive Out Gigabit Ethernet DC to DC Converter - airFiber Compatible (TP-DCDC-2456G-VHP)

SKU: TP-DCDC-2456GVHP ● In Stock
$285.00
Free shipping over $299 Genuine product 7-day returns

TP-DCDC-2456GVHP

Tycon Systems TP-DCDC-2456GVHP - Tycon 18-36VDC In, 56VDC 70W Passive Out Gigabit Ethernet DC to DC Converter - airFiber Compatible (TP-DCDC-2456G-VHP)

Description

The Tycon Power Gigabit compatible TP-DCDC-2456G-VHP is a special very high power DC to DC converter / POE inserter designed especially for Ubiquiti airFiber antenna systems and other systems which require high power passive POE such as Axis High Power POE PTZ security cameras. The unique POE inserter supplies 56VDC POE power on all 8 Ethernet wires. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.
Features
  • Input Voltage 24VDC (18-36VDC)
  • 8 wire 56VDC Passive POE Output
  • High Power Output to 70W
  • Dual DC Inputs for Connecting 2 Power Sources
  • Gigabit Data Throughput
  • Low self consumption power (<2W)
  • Short Circuit, Over Current and Reverse/Over Voltage Protection
  • Industrial Temperature Range
  • Applications: 24VDC Remote Power Systems, Ubiquiti airFiber™ Antennas Axis, Q6032-E, Q6034-E and Q6035-E PTZ Security Cameras

Specifications

Details
Manufacturer's Product Code TP-DCDC-2456G-VHP
DC Input Voltage 18VDC to 36VDC
DC Input Connector Removable Screw Type Compression Wire Terminal (12 AWG Max)
DC Output Voltage 56VDC (Passive 8 Wire)
Data in & Data/POE Output Connector RJ45 (Shielded)
Output Current (max) 1.25A Total
Output Power (max) 70W Total
Self Consumption Power 2W
Dimensions (LxWxH) 125 x 75 x 38mm
