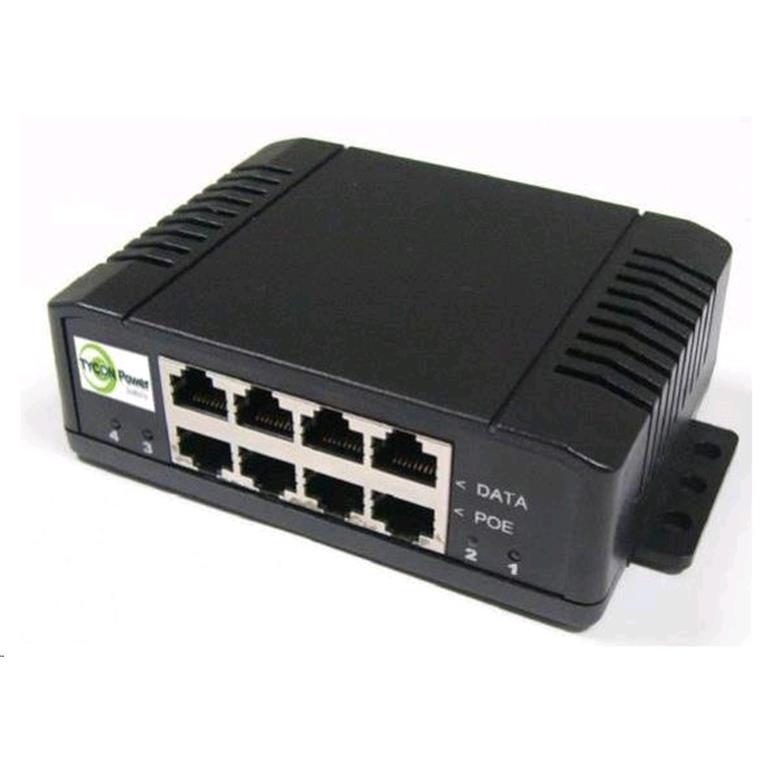

Tycon Systems TP-MS4X4 - Tycon High Power 4 Port Midspan PoE Injector

The TP-MS4x4 mid span POE power sources are used for supplying POE and data to multiple devices from a central location such as an operations room or equipment cabinet. The POE devices feature a separate data-in port coupled with a data out/POE port. The POE function is considered Passive POE and supports Gigabit Ethernet. The Mid span features Universal Voltage (UniVolt™) POE outputs where the POE voltage equals the input voltage. All ports can have the same POE voltage or you can assign different voltages to different ports. This is useful for powering different devices with different POE voltage requirements. The Mid span also allows some or all POE ports to be reverse voltage POE which is required by some Passive POE devices like Canopy and EnGenius.

- POE DC Voltage (11V-57V) is supplied on pins 4,5 (V+) and 7,8 (V-)
- Maximum power output per port is 2A
- Individual outputs are over current, over/under voltage and short circuit protected
- DIN Rail mountable with the include DIN Rail brackets
- Great for use with Ubiquiti and MikroTik RouterBOARD long range wireless access points.
