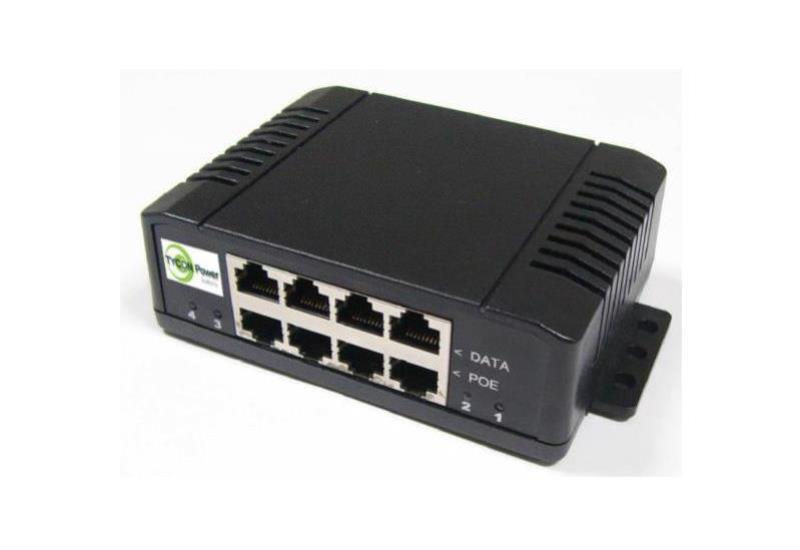

Tycon Systems TP-MS4X4 - Tycon Power Systems High Power 4 Port Universal Voltage Gigabit Ethernet Midspan PoE Injector (TP-MS4X4)

TP-MS4X4

Tycon Systems TP-MS4X4 - Tycon Power Systems High Power 4 Port Universal Voltage Gigabit Ethernet Midspan PoE Injector (TP-MS4X4)

The Tycon Power TP-MS4x4 mid span POE power sources are used for supplying POE and data to multiple devices from a central location such as an operations room or equipment cabinet. The POE devices feature a separate data-in port coupled with a data out/POE port. The POE function is considered Passive POE and supports Gigabit Ethernet. The Mid span features Universal Voltage (UniVolt™) POE outputs where the POE voltage equals the input voltage. All ports can have the same POE voltage or you can assign different voltages to different ports. This is useful for powering different devices with different POE voltage requirements. The Mid span also allows some or all POE ports to be reverse voltage POE which is required by some Passive POE devices like Canopy and EnGenius.

Details
Manufacturer's Product Code	TP-MS-4X4
DC Input Voltage	11VDC to 57VDC (Negative common)
DC Input Connector	Removable Screw Type Compression Wire Terminal (12 AWG Max)
PoE Method	Passive POE
Data in & Data/POE Output Connector	RJ45 (Shielded)
Self Consumption Power	<5W
Interfaces	4 data-in; 4 data/POE out
Maximum POE Power	Up to 1A Per Port
Dimensions (LxWxH)	90mm x 118mm x 40mm
