Tycon Systems TP-POE-PL-PL-10G - Tycon Power Systems TP-POE++10G
Tycon Systems

Tycon Systems TP-POE-PL-PL-10G - Tycon Power Systems TP-POE++10G

SKU: TP-POE-PL-PL-10G ● In Stock
$91.00
Free shipping over $299 Genuine product 7-day returns

TP-POE-PL-PL-10G

Tycon Systems TP-POE-PL-PL-10G - Tycon Power Systems TP-POE++10G

Description

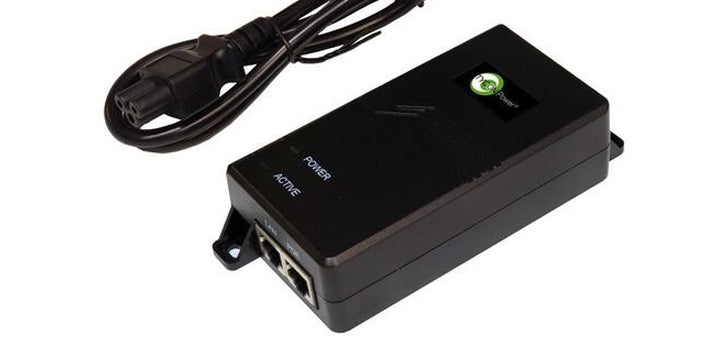

Tycon Power Systems TP-POE++10G 56V 60W 4 pair PoE++ 10Gbps Ethernet Injector. The TP-POE++10G is a compact 10/100/1000/10000MB (10G) desktop PoE++ inserter with 120/240VAC auto-ranging input. The inserter has an output that is 4 pair: Mode A (1,2+ 3,6-) and Mode B (4,5+ 7,8-) 802.3at PoE++ at up to 56W.
Features
  • 10/100/1000/10000Mb Data Rate
  • CAT6 (or higher) for 10G
  • Compact Size, Shielded RJ45 Jacks
  • I.T.E. Power Supply, UL Listed

Specifications

Details
Product Code TP-POE++10G
AC Input Voltage 100-240VAC 50/60Hz
Output PoE Voltage 56VDC +/-2V, 802.3at PoE++, 4 Pair: Mode A (Pins 1,2+ 3,6-) and Mode B (Pins 4,5+ 7,8-)
Maximum Load 1A (56W) Max
Protections Short Circuit, Overcurrent, Surge/ESD (4kV)
Efficiency 84% Minimum
Ripple and Noise 200mV p-p
Data Rate 10/100/1000/10000Mbps (10Gb)
No Load Consumption 1W Max
Operating Temperature -20 to +50°C
Storage Temperature -30 to +80°C
Operating Humidity 5% to 90% non condensing
Size (L x W x H) 5.5 x 2.5 x 1.4” (138.5 x 62.5 x 35.3mm)
Weight 8.1oz (230g)
MTBF 100,000 Hrs
Certifications CE, FCC
Connectors RJ45 Shielded Jacks
Ethernet Cable Compatibility CAT6a 10G to 55m; CAT6e 10G to 80m, 5G to 100m
