Features

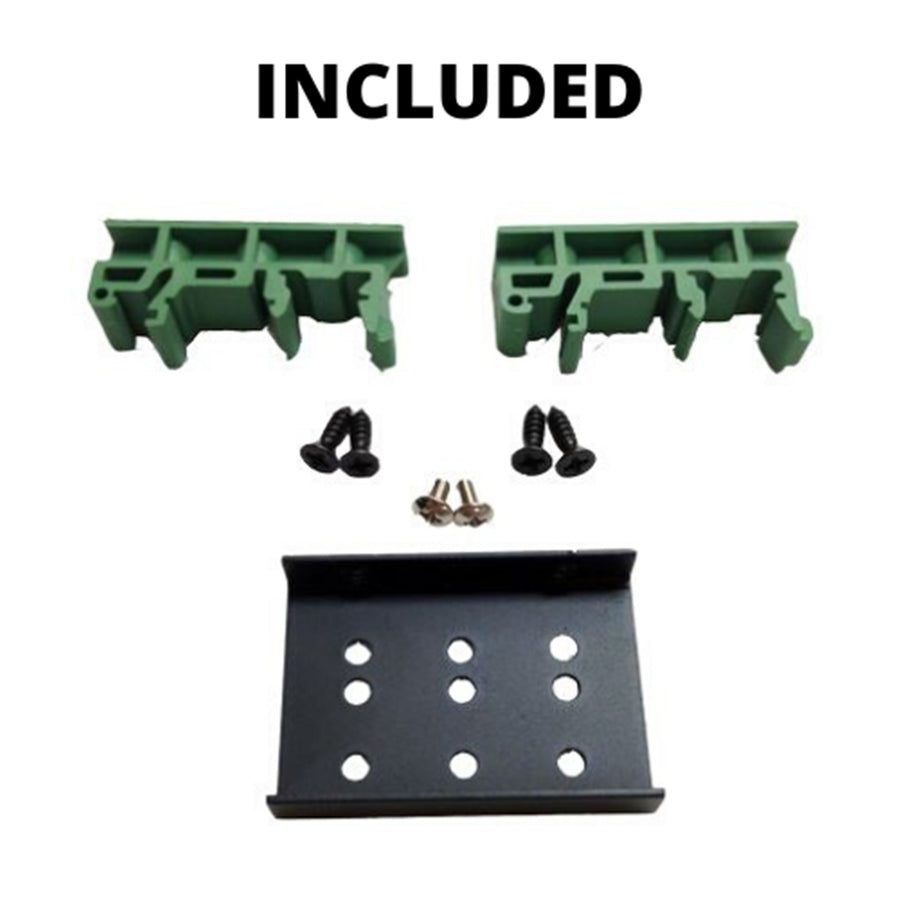

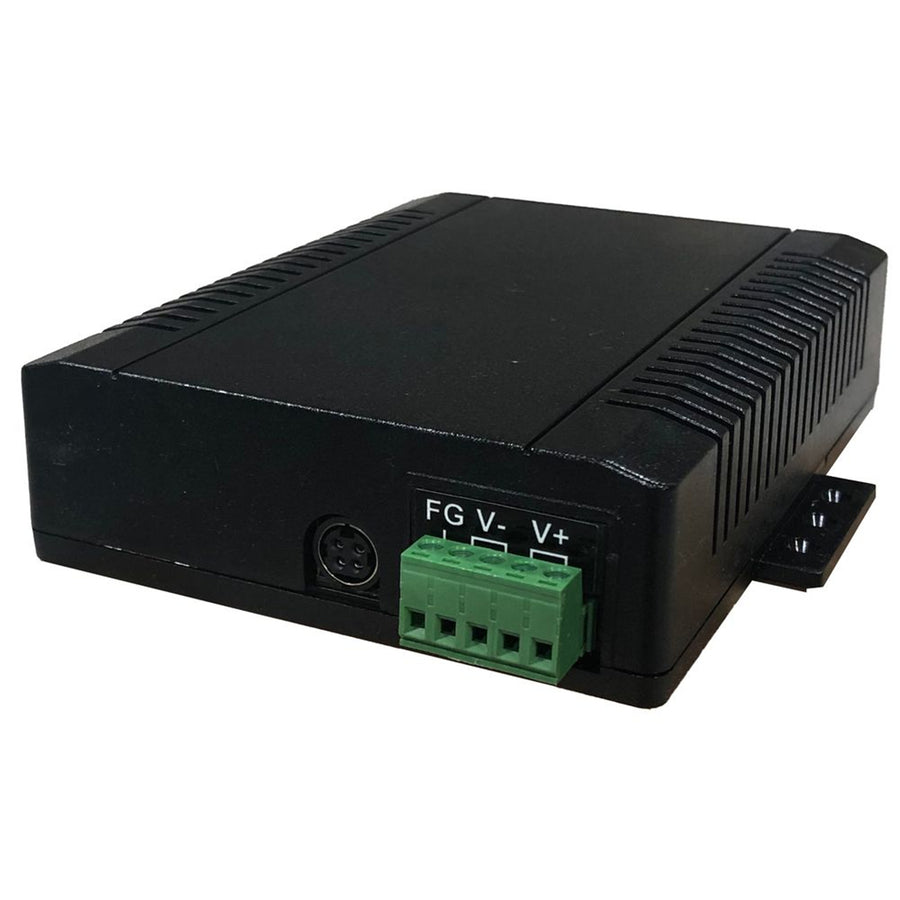

The Tycon TP-SW5G-NC Universal Voltage 10/100/1000MB POE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). When powering the Switch via the uplink port the universal voltage input is disabled. All the Switches have DIN Rail mounts included for convenient DIN rail mounting.
- High Power 10/100 and 1000Mb POE Switch
- Remotely Power Equipment thru CAT5 Cable up to 100m
- Up to 35W per Port
- Automatic MDI/MDI-X Crossover
- Automatic Speed and Duplex Sensing
- K Self Learning MAC Address Table
- Compact Size
- High Temperature Operation
- Applications: Wireless Access Points and Client Devices, IP Phone and Security Camera Systems, Power multiple devices from 1 data cable
Specifications
Technical Specifications
| DC Input Voltage | 12V to 57VDC, Dual DC Inputs, Reverse Polarity Protected. |
|---|---|
| DC Input Connector | Removable Screw Type Compression Wire Terminal (12 AWG Max) |
| PoE Method | Passive POE |
| Data in & Data/POE Output Connector | RJ45 (Shielded) |
| Self Consumption Power | < 5 Watts |
| Ethernet Speed | 10/100Mbps |

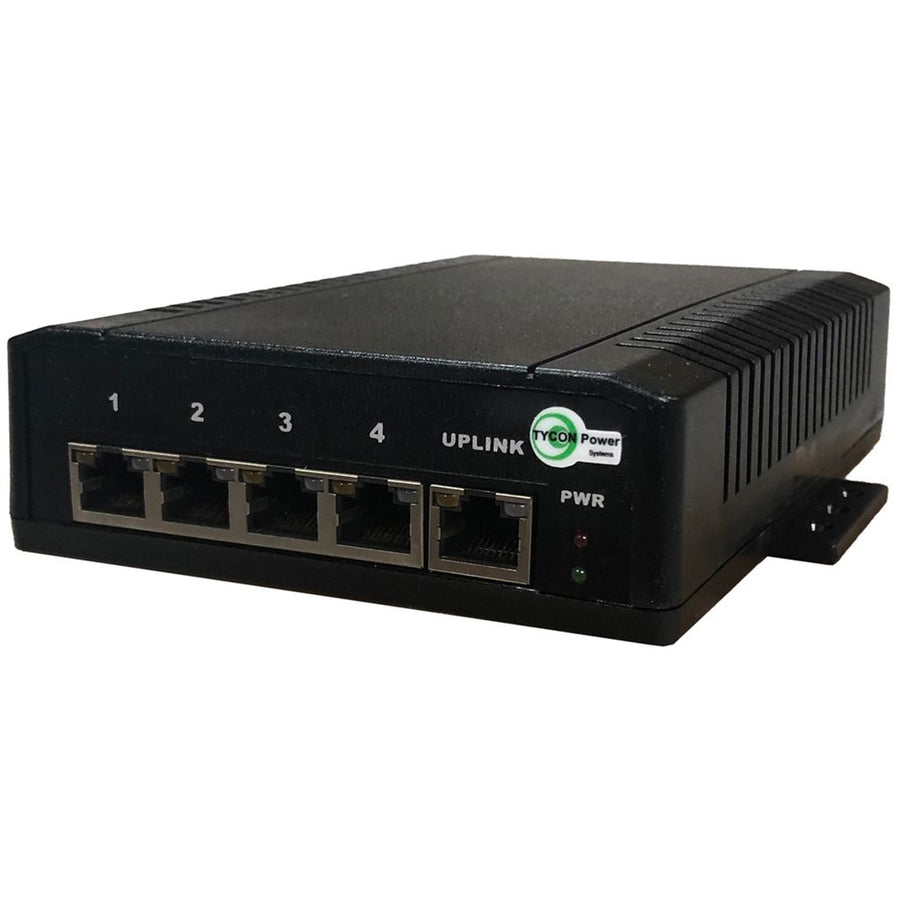

| Interfaces | 1 data only and 4 data/POE, automatic crossover and polarity |
| POE Output Ports | Port 1-4, auto power management Pin assignment: TX(1,2), RX(3,6), V+(4,5), V-(7,8) |
| Maximum POE Power | 35W per port |
| Dimensions | Length 90 mmWidth 118 mmHeight 40 mm |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | Tycon Systems |
|---|---|
| Product Type | Networking > Switches |
| Weight | 0.5 kg |
