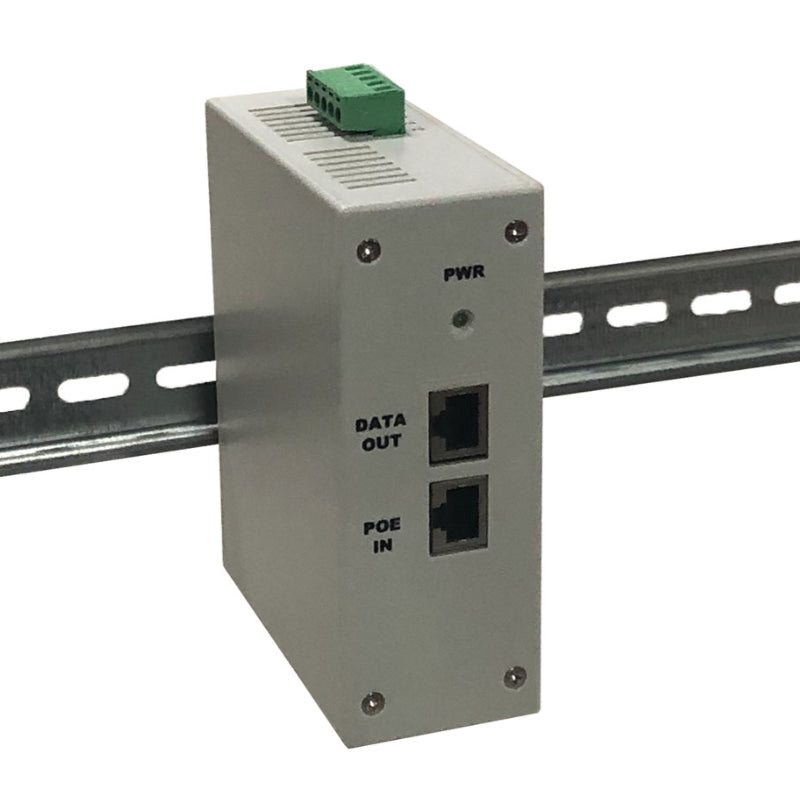

Tycon Systems TPDIN-POE-RELAY - Tycon Power TPDIN PoE Powered 10A Relay - TPDIN-POE-RELAY

TPDIN-POE-RELAY

Tycon Systems TPDIN-POE-RELAY - Tycon Power TPDIN PoE Powered 10A Relay - TPDIN-POE-RELAY

The Tycon Power TPDIN-POE-RELAY is a unique device that provides a way to control up to 10A of current from a managed PoE Switch or other PoE device. When PoE is applied to the TPDIN-POE-RELAY, the relay closes and the LED turns ON. When PoE power is removed, the relay turns off and the LED turns OFF. There are two connections, a normally closed and a normally open, so that both relay logic states can be utilized.

Many modern PoE switches allow an operator to enable or disable the PoE on a particular port. This PoE switch function can be used to control the relay.

The unit features a Gigabit Data Passthrough with surge protection to protect the data connection up to 30KV.

It mounts to a standard DIN Rail commonly used in industrial installations.

Details
Manufacturer's Product Code	TPDIN-POE-RELAY
Relay Type	NO & NC 10A 30VDC/250VAC
Relay Function	PoE ON- Relay Closed, LED ON, PoE OFF – Relay Open, LED OFF
Data PassThrough	10/100/1000Mbps
Data Protection	Pin to Pin (1-2, 3-6, 4-5, 7-8), Clamp Voltage: 3.3V, ESD, IEC61000-4-2: +/- 30KV contact and air, EFT, IEC61000-4-4: 40A (5/50us), Lightning, IEC61000-4-5: 15A (8/20us)
PoE Input Requirements	802.3af/at/bt Class 0 PoE or 24V Passive PoE
Self Consumption Power	<1W
Connections	Removable Wire Terminal
Wire Size	12AWG Max
Mounting	DIN Rail
Operating Temperature	-40C to +70C (-40F to 158F)
Humidity (RH)	0% - 90%
Dimensions (LxWxH)	125 x 102 x 46mm (4.9” x 4” x 1.8”)
Weight	260g (9.2 oz)
