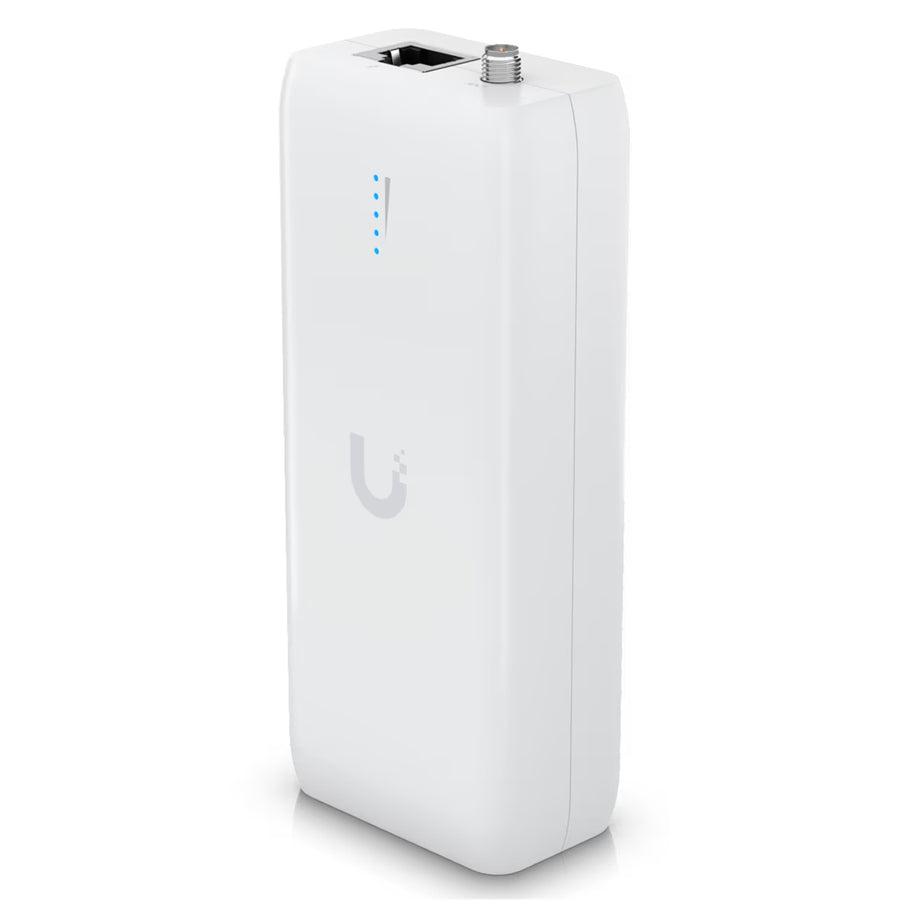

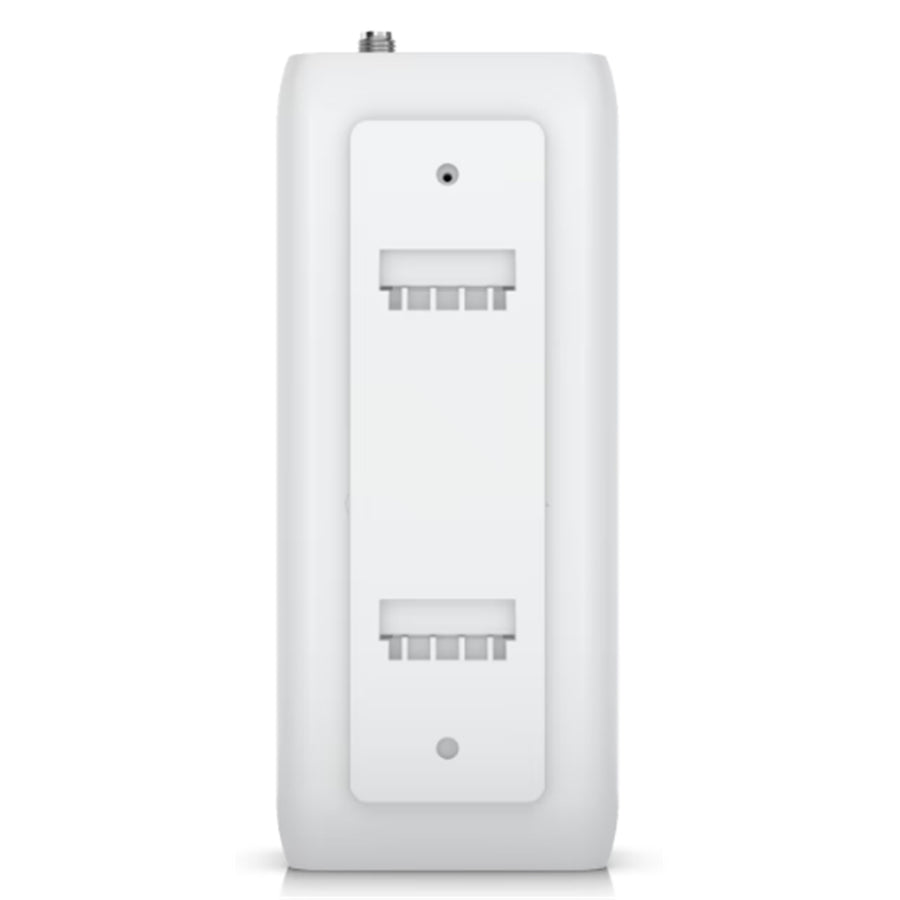

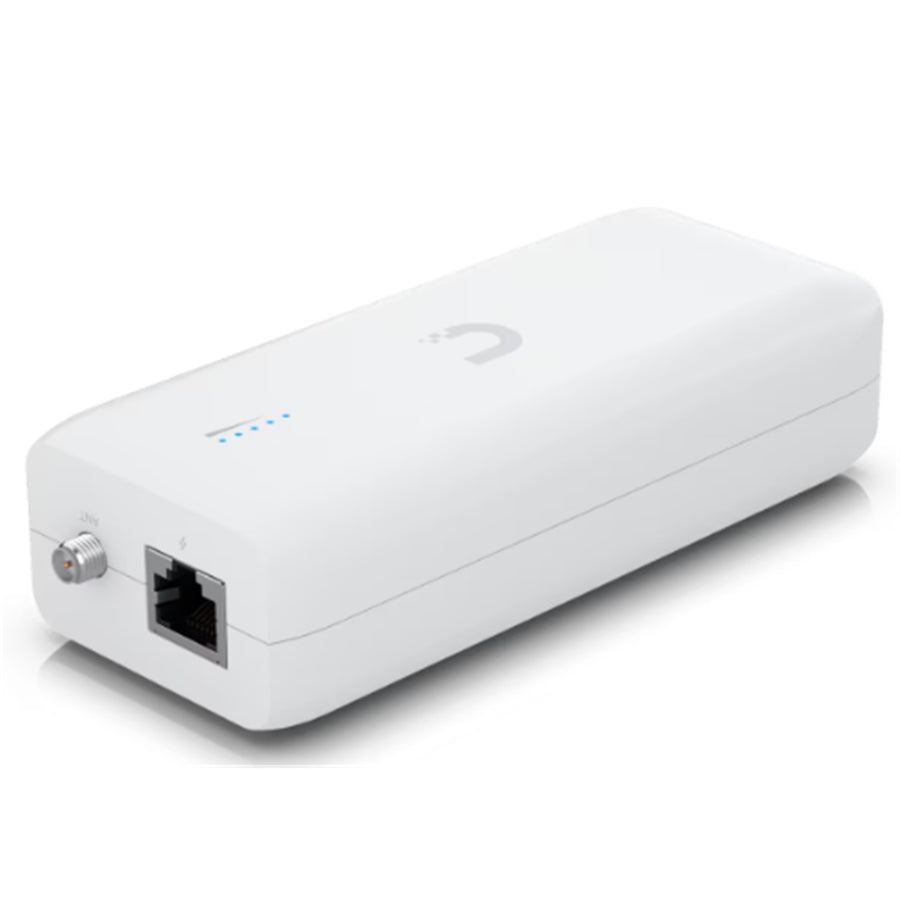

Ubiquiti UniFi Device Bridge with integrated UniFi WiFi Auto-Link

Ubiquiti UniFi Device Bridge with integrated UniFi WiFi Auto-Link

Name: Ubiquiti UniFi Device Bridge with integrated UniFi WiFi Auto-Link
Brand: Ubiquiti
SKU: UDB
Price: 294.29 NZD
Availability: InStock

SKU: UDB ● In Stock

$255.90

inc GST ▲ +GST

Free shipping over $299 Genuine product 7-day returns

Features

Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link.

Specifications

Technical Specifications

MIMO	5 GHz2 x 2
Max. Data Rate	5 GHz866.7 Mbps (BW80)
Antenna Gain	5 GHzInternal antenna: 5 dBiExternal omni antenna: 4 dB
Max. TX Power	5 GHz21 dBm
Supported Data Rates	802.11ac (WiFi 5)6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security	WPA2 AES (Always On)
Max. Power Consumption	25W (AC input)10W (Excluding PoE output)
Supported Voltage Range	100-240V AC
Networking Interface	(1) GbE RJ45 port
Antennas	(1) Internal antenna(1) RP-SMA connector for external omni-antenna
Management	WiFi
Weight	200 g (7.1 oz)
Mount Material	Polycarbonate
Enclosure Material	Polycarbonate
Button	(1) Factory-reset
LEDs	System(4) Blue: signal(1) White/blue: indicator
Channel Bandwidth	20/40/80 (MHz)
Certifications	CE, FCC, IC
NDAA Compliant	Yes
Operating Frequency	US/CA:U-NII-1 5150 - 5250 MHzU-NII-2A 5250 - 5350 MHzU-NII-2C 5470 - 5725 MHzU-NII-3 5725 - 5850 MHzWorldwide:5150 - 5875 MHz
Ambient Operating Temperature	-10 to 40° C (14 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
