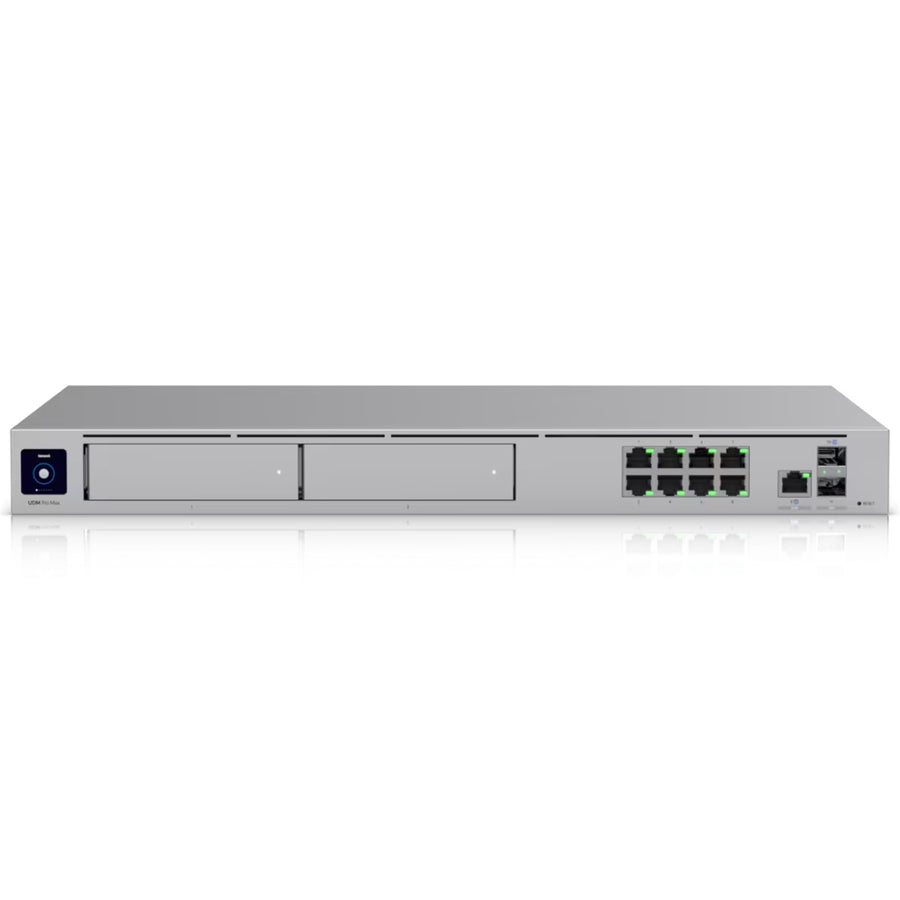

Ubiquiti UniFi (UDM-Pro-Max) Dream Machine Pro Max 10G Cloud Gateway with NVR

SKU: UDM-Pro-Max ● In Stock

$1,678.15 ~~$1,756.19~~

Free shipping over $299 Genuine product 7-day returns

Features

Dream Machine Pro Max

10G Cloud Gateway with 200+ UniFi device / 2,000+ client support, 5 Gbps IPS routing, and redundant NVR storage.

- Enhanced computing power and memory for 2x the UniFi device and client capacity of Dream Machine Pro/SE
- Includes full UniFi application suite for device management
- 5 Gbps routing with IDS/IPS
- (1) 10G SFP+*, (8) GbE RJ45 LAN ports
- (1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports
- (2) 3.5" NVR HDD bays with RAID data protection
- Built-in 128 GB SSD for NVR detection recordings
- UniFi Power Backup ready
- 1.3" touchscreen

*Pair with an official SFP+ Module or SFP+ to RJ45 Adapter for the best experience.

Specifications

Technical Specifications

Dimensions	442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight	4.7 kg (10.4 lb)
Enclosure material	Aluminium CNC, SGCC steel
Mount material	SGCC steel
Processor	Quad-core ARM® Cortex®-A57 at 2.0 GHz
System memory	8 GB DDR4
On-board storage	32 GB eMMCIntegrated 128 GB SSD
Management interface	EthernetBluetooth
Networking interface	LAN:(8) GbE RJ45 ports(1) 10G SFP+ portWAN:(1) 2.5 GbE RJ45 port(1) 10G SFP+ port
IDS/IPS throughput	5 Gbps**Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.
Power method	(1) Universal AC input, 100-240V AC, 2A Max., 50/60 Hz(1) USP-RPS DC input, 11.5V DC, 8.7A
Power supply	AC/DC, internal, 100W
Supported voltage range	100-240V AC
Max. power consumption	100W
ESD/EMP protection	Air: ± 15kV, contact: ± 8kV
LCM display	(1) 1.3" touchscreen
Button	Factory reset
Ambient operating temperature	-10° to 40° C (14° to 104° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Performance	Redundant WAN with failover and load balancingWiFi QoS with UniFi APsApplication, domain, and country-based QoSApplication and device type identificationAdditional internet failover with LTE BackupInternet quality and outage reporting
Next-generation security	Application-aware firewall rulesSignature-based IPS/IDS threat detectionContent, country, domain, and ad filteringVLAN/subnet-based traffic segmentationFull stateful firewall
Advanced networking	License-free SD-WANWireGuard, L2TP and OpenVPN serverOpenVPN clientOpenVPN and IPsec site-to-site VPNOne-click Teleport and Identity VPNPolicy-based WAN and VPN routingDHCP relayCustomizable DHCP serverIGMP proxyIPv6 ISP support
Ethernet	Green: link/activity
SFP+	Green: link/activity
HDD	White: disk activityAmber: disk error
RPS	Blue: ready
