Ubiquiti

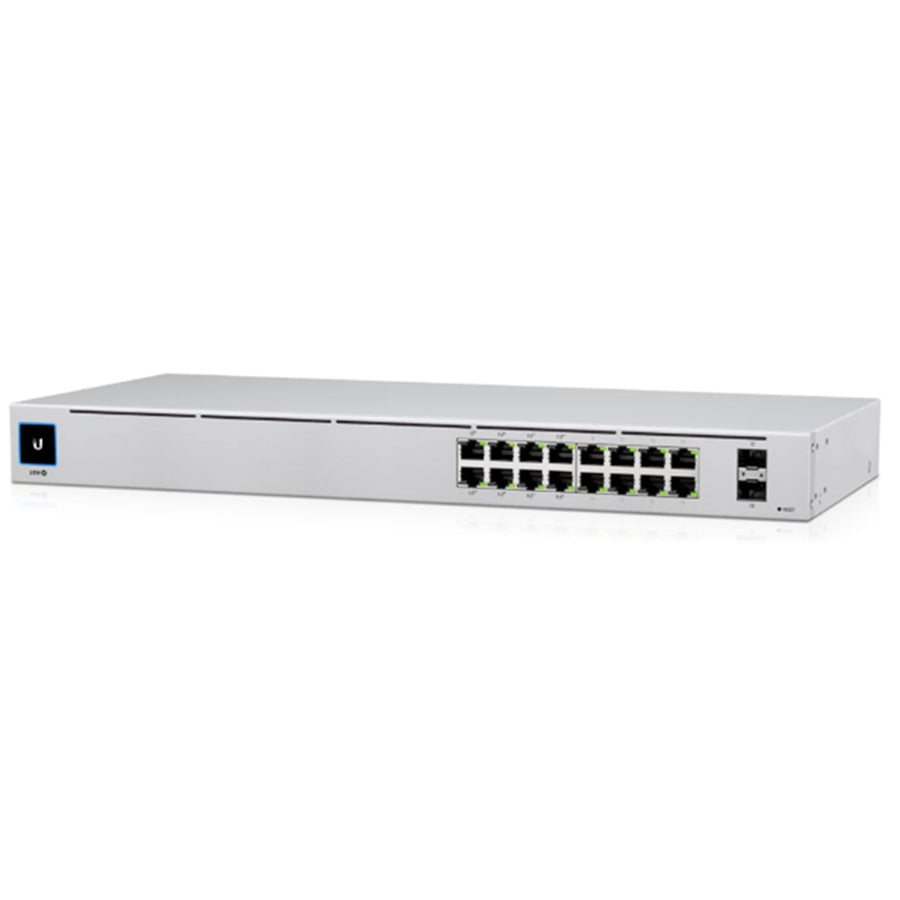

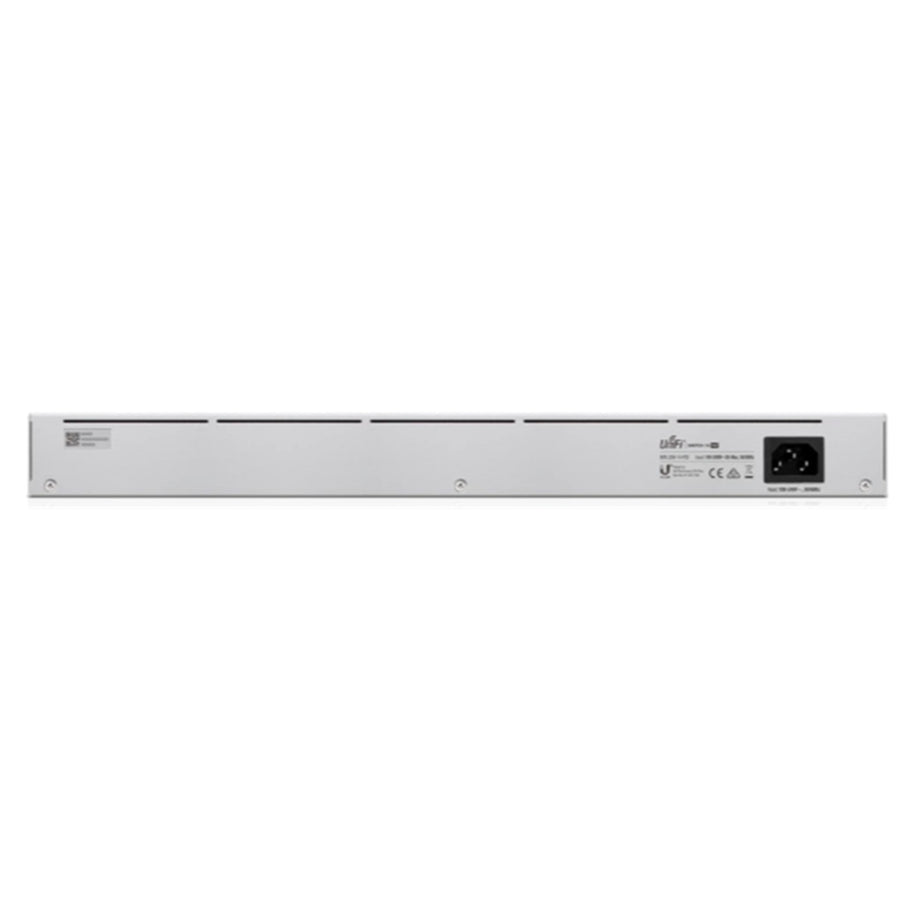

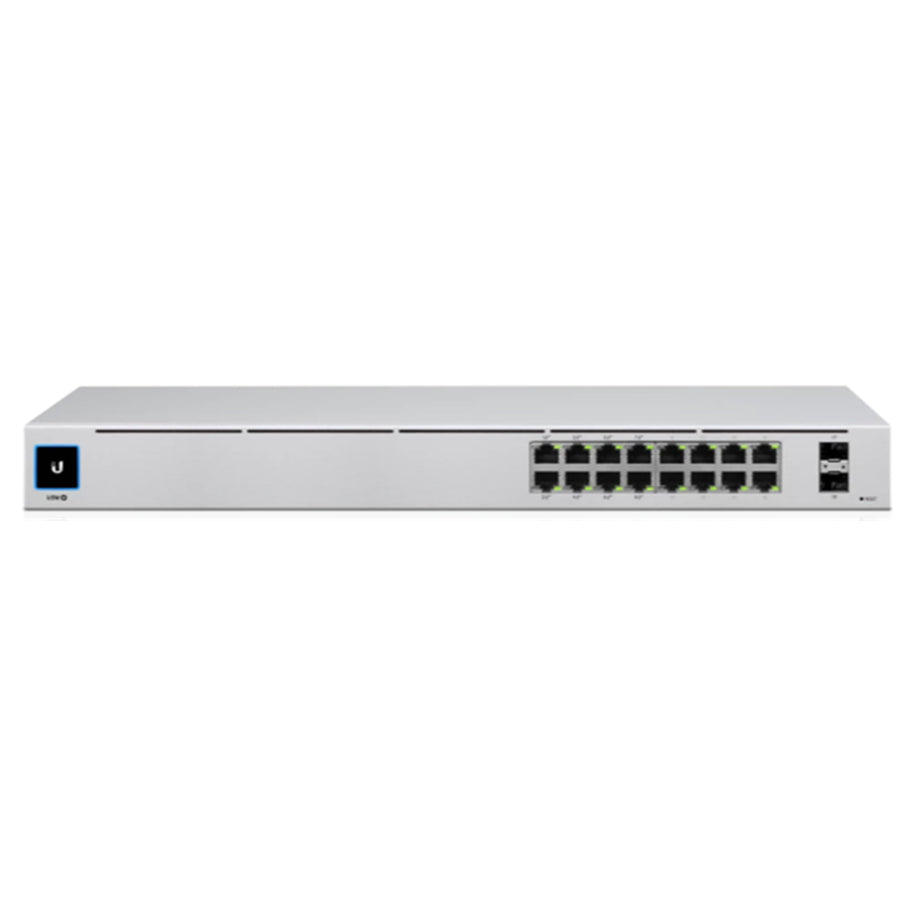

Ubiquiti UniFi USW-16-POE 18-Port Gigabit L2 Managed PoE Switch (42W) - SFP x2, 1GbE x8, 1GbE PoE+ x8

SKU: USW-16-POE ● In Stock
$781.97 $789.53
Free shipping over $299 Genuine product 7-day returns

Features

Switch 16 PoE

UniFi Switch 16 is a fully managed Layer 2 switch with (16) Gigabit Ethernet ports and (2) Gigabit SFP ports.

The USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-16-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.

Managed and configured by the UniFi Network application with UniFi mobile app support, the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network application and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

- (16) Gigabit Ethernet Ports including (8) 802.3at PoE+ Ports
- (2) 1G SFP Ports
- 1.3" touch LCM
- Managed with UniFi application
- Managed with UniFi Network Application Version: 5.11.27 or higher



Works with UniFi Network Application

- Manage your networks from a single interface.
- Enjoy intuitive configuration options, as well as robust device control and monitoring.
- Upgrade device firmware remotely.
- Easily manage network users and guests.
- Personalize the design, architecture, and privacy of guest hotspots.

Specifications

Technical Specifications

Networking (16) 10/100/1000 RJ45 Ports(2) 1G SFP Ethernet Ports
Management Ethernet In-Band
RJ45 Data Ports PoE; Speed/Link/Activity
SFP Data Ports Link/Activity
Dimensions 424.4 x 200 x 43.7 mm (16.71 x 7.87 x 1.72")
Weight 2.80 kg (6.17 lb)
With Rackmount Brackets 2.89 kg (6.37 lb)
Total Non-Blocking Throughput 18 Gbps
Switching Capacity 36 Gbps
Forwarding Rate 26.78 Mpps
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply AC/DC, Internal, 60W
Supported Voltage Range 100 to 240VAC
Max. Power Consumption (Excluding PoE Output) 18W
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
Total Available PoE 42W
PoE Interfaces Ports 1-8POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-)
Max. PoE Wattage per Port by PSE 802.3at, 32W
Voltage Range 802.3af Mode 44-57V
Voltage Range 802.3at Mode 50-57V
