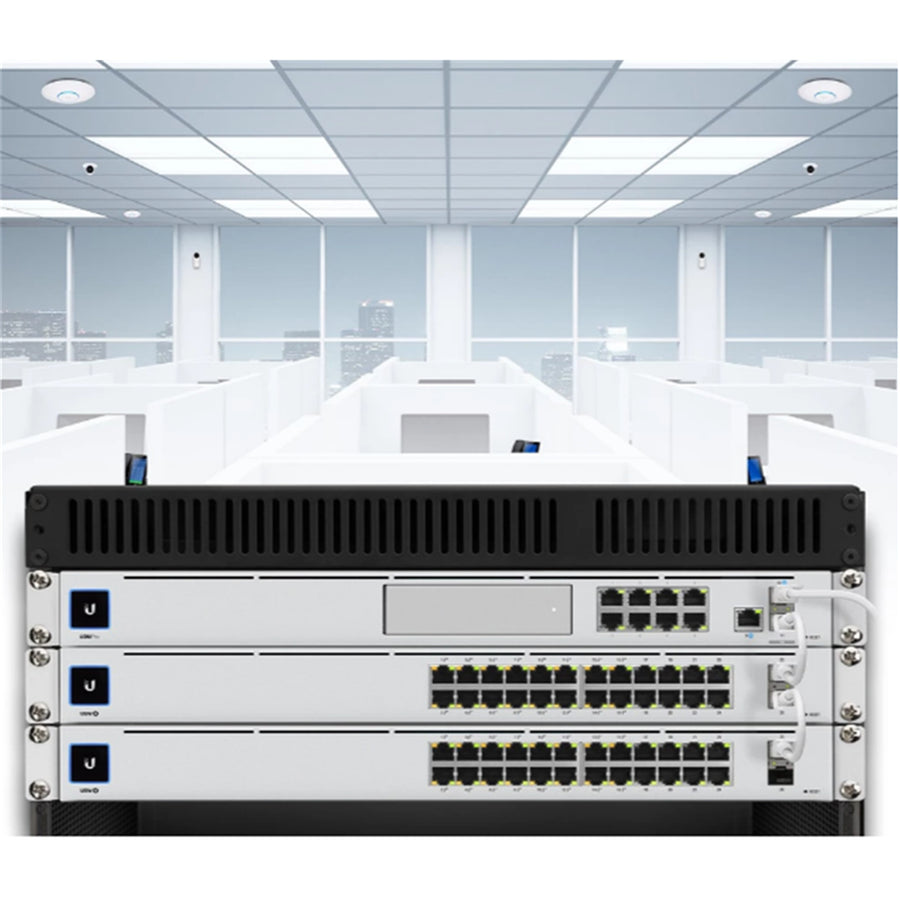

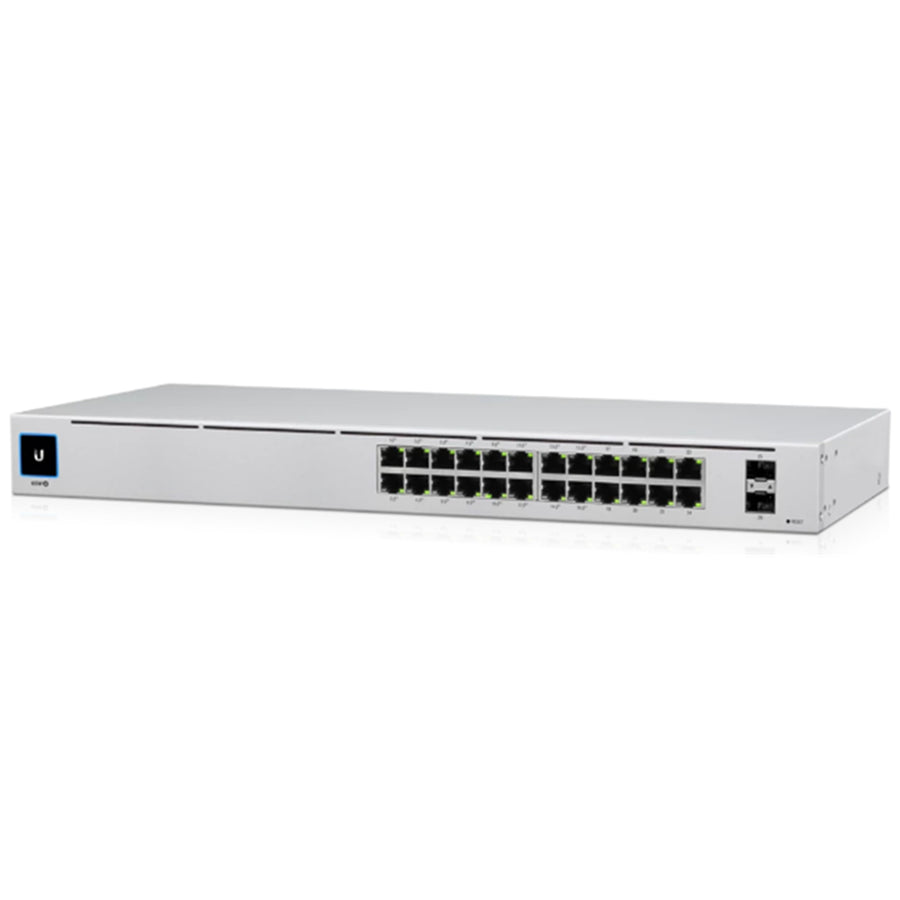

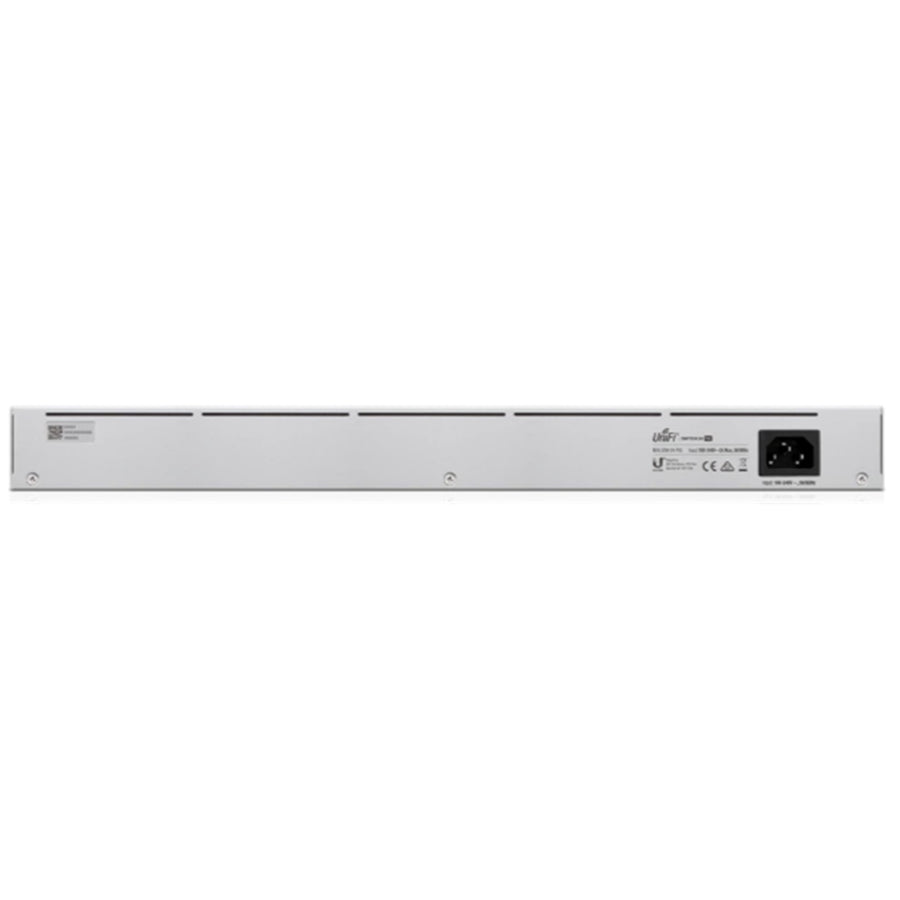

Ubiquiti UniFi USW-24-POE 26-Port Gigabit L2 Managed PoE Switch (95W) - SFP x2, 1GbE x8, 1GbE PoE+ x16
Features
The USW-24-POE is a configurable Gigabit Layer 2 switch with twenty-four Gigabit Ethernet ports including sixteen auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-24-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Specifications
Technical Specifications
| Manufacturer's Code | USW-24-POE-AU |
|---|---|
| Dimensions | 442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72") |
| Weight | 3.00 kg (6.61 lb), With Brackets 3.09 kg (6.81 lb) |
| Interfaces Networking | (24) 10/100/1000 RJ45 Ports, (2) 1G SFP Ethernet Ports |
| Management | Ethernet In-Band |
| Total Non-Blocking Throughput | 26 Gbps |
| Switching Capacity | 52 Gbps |
| Forwarding Rate | 38.69 Mpps |
| Power Method | 100-240VAC, 50/60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 120W |
| Voltage Range | 100 to 240VAC |
| Max Power Consumption (Excluding PoE Output) | 25W |
| LEDs | System Status, RJ45 Data Ports PoE; Speed/Link/Activity, SFP Data Ports Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| Total Available | PoE 95W |
| PoE Interfaces Ports | 1-16 POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-) |
| Max. PoE Wattage per Port by PSE | 802.3at 32W |
| Voltage Range | 802.3af Mode 44-57V, 802.3at Mode 50-57V |
| Brand | Ubiquiti |
|---|---|
| Product Type | Networking |
