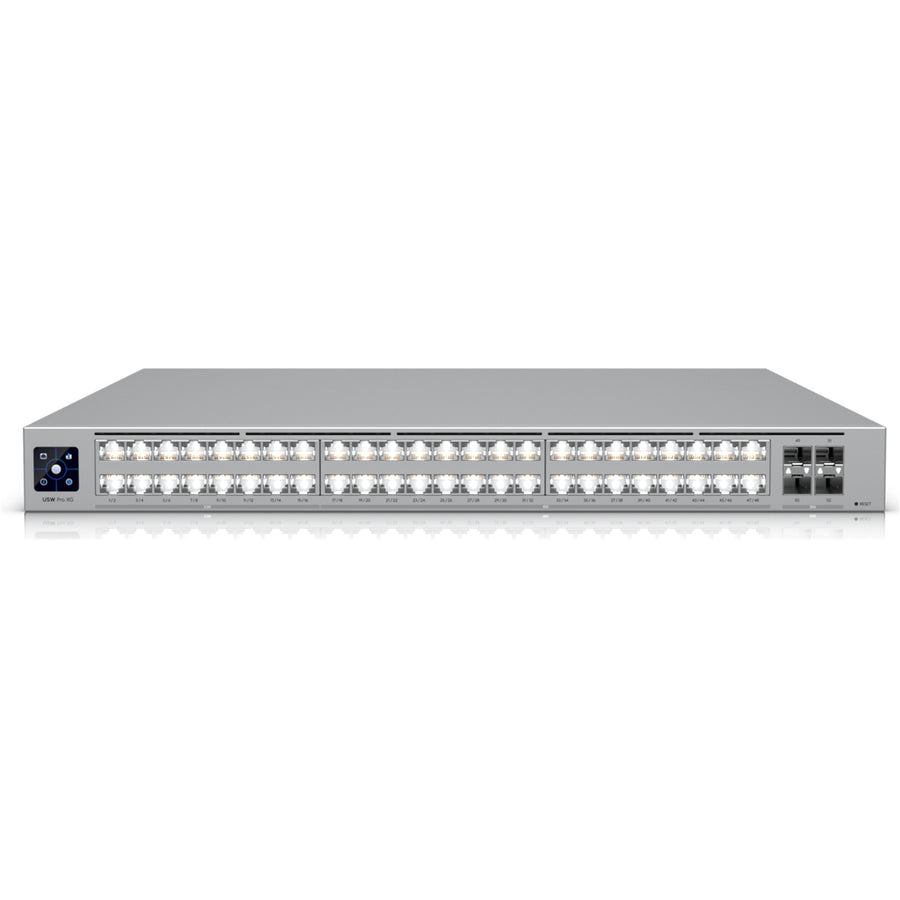

Ubiquiti Unifi USW-Pro-XG-48-PoE 52-Port 25G L3 Managed Etherlighting PoE Switch (1080W) - SFP28 x4, 10GbE PoE+++ x32, 2.5GbE PoE+++ x16

Name: Ubiquiti Unifi USW-Pro-XG-48-PoE 52-Port 25G L3 Managed Etherlighting
Brand: Ubiquiti
SKU: USW-Pro-XG-48-PoE
Price: 6537.93 NZD
Availability: InStock

SKU: USW-Pro-XG-48-PoE ● In Stock

$6,537.93 ~~$6,552.45~~

Free shipping over $299 Genuine product 7-day returns

Features

Professional-grade, 48-port Layer 3 Etherlighting™ PoE+++ switch with (32) 10 GbE, (16) 2.5 GbE PoE, and (4) 25G SFP28 ports.

Specifications

Technical Specifications

Dimensions	442 x 480 x 44 mm(17.4 x 18.9 x 1.7")
Port Layout	2.5 GbE RJ4516 (All PoE+++)(2.5G/1G/100M/10M)10 GbE RJ4532 (All PoE+++)(10G/5G/2.5G/1G/100M/10M)25G SFP284(25G/10G/1G)
Max. PoE Output	Up to PoE+++
Total PoE Availability	200-240V AC: 1080W100-120V AC: 972W
Redundancy	DC Power Backup
Layer 3	Yes
Form Factor	Rack mount (1U)
Etherlighting™	Yes
Switching Capacity	920 Gbps
Total Non-Blocking Throughput	460 Gbps
Forwarding Rate	684 Mpps
Supported VLANs	1,000
MAC Address Table Size	128,000
L3 Table Size	ARP Entries128,000IPv4 Routes256,000
Packet Buffer Size	8 MB
Access Lists	IPv4256MAC256
DHCP Server (Local Networks)	Yes
DHCP Relay	Yes
Inter-VLAN Routing (Local Networks)	Yes
Static Routing (Local Networks)	Yes
LACP Port Aggregation	Yes
STP & RSTP	Yes
QoS (DSCP)	Yes
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)	Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	Yes
IGMP Snooping	Yes
802.1X Control	Yes
MAC-Based ACLs & Device Isolation	Yes
DHCP Snooping & Guarding	Yes
Egress Rate Limit	Yes
Flow Control	Yes
Storm Control	Yes
Multicast & Broadcast Rate Limiting	Yes
MAC Address Blocking	Yes
IP-Based ACLs & Network Isolation	Yes
MAC-Based Port Restriction	Yes
Port Isolation	Yes
Port Mirroring	Yes
Jumbo Frames	Yes
LLDP-MED	Yes
Voice VLAN	Yes
Loop Protection	Yes
PoE Ports	PoE+++48
Max. PoE Wattage per Port by PSE	PoE15.4WPoE+30WPoE++60WPoE+++90W
Max. Power Consumption	200W (Excluding PoE Output)200-240V: 1,280W /100-120V AC: 1,172W (Including PoE Output)
Power Method	(1) Universal input, 100-240V AC, 50/60 Hz(1) USP RPS DC input
Power Input Method	AC input
Power Supply	AC/DC, internal, 1,350W
Supported Voltage Range	100-240V AC
Management	EthernetAR
Weight	Without mounting brackets: 8.7 kg (15.4 lb)With mounting brackets: 8.8 kg (15.7 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	482.6 mm (19") four-post racksPosts depths ranging from 600 to 1,066 mm (23.6-42")
LCM Display	1.3" touchscreen
ESD/EMP Protection	Air: ± 30kV, contact: ± 20kV
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Ethernet	Yes
SFP28	Yes
NDAA Compliant	Yes
Certifications	CE, FCC, IC
Application Requirements	UniFi NetworkVersion 9.1.120 and later
