Ubiquiti

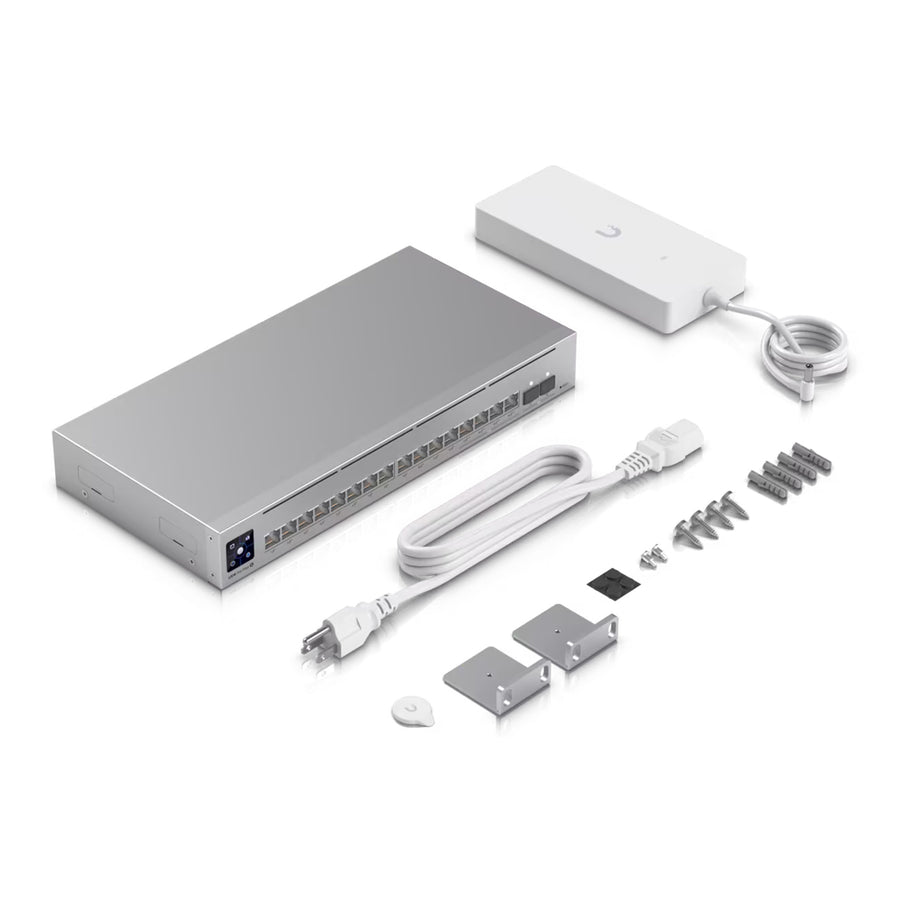

Ubiquiti USW-PRO-MAX-16-POE - UniFi 16-port Layer 3 PoE++ Switch with Etherlighting 2.5GbE
$997.00
Free shipping over $299
Genuine product
7-day returns
Ubiquiti USW-PRO-MAX-16-POE - UniFi 16-port Layer 3 PoE++ Switch with Etherlighting 2.5GbE
Features
Ubiquiti UniFi USW Pro Max 16 PoE
Specifications

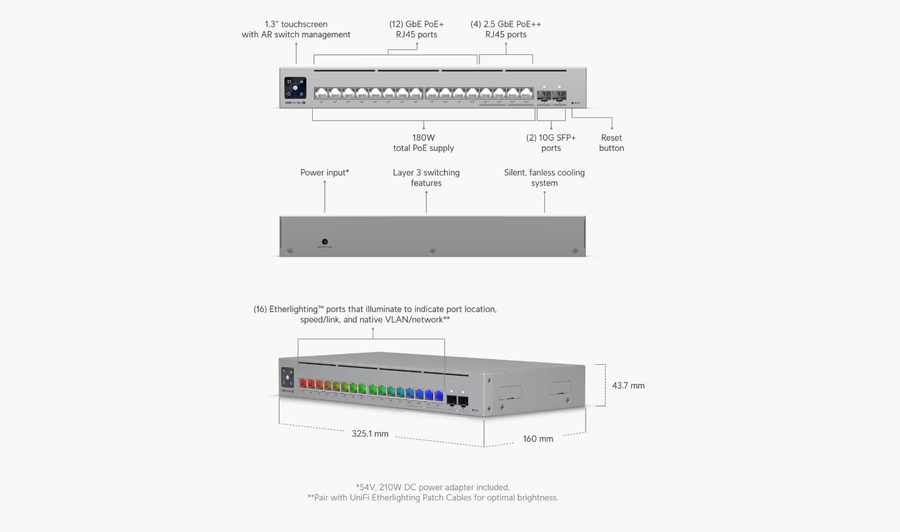

Technical Specifications
| Dimensions | 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7") |
|---|---|
| Weight | 2.1 kg (4.6 lb) |
| Enclosure material | SGCC steel |
| Management interface | Ethernet In-Band |
| Networking interface | (12) GbE RJ45 ports(4) 1/2.5 GbE RJ45 ports(2) 10G SFP+ ports |
| PoE interface | (12) PoE/PoE+ (Pins 1, 2+; 3, 6-)(4) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput | 42 Gbps |
| Switching capacity | 84 Gbps |
| Forwarding rate | 62.496 Mpps |
| Power method | DC adapter |
| Power supply | 54V, 210W |
| Max. power consumption | 30W (Excluding PoE output) |
| Total available PoE | 180W |
| Max. PoE wattage per port by PSE | PoE: 15.4WPoE+: 30WPoE++: 60W |
| Voltage range PoE mode | PoE: 44-57VPoE+/PoE++: 50-57V |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Layer 2 features | IGMP snoopingSTP / RSTP with priorities and port-level disablePort isolationStorm controlVoice VLANPort mirroringLACP port aggregationMulticast / broadcast rate limitingMAC address blockingFlow control802.1X controlJumbo framesProprietary loop protectionDHCP snooping / guardingEgress rate limitLLDP-MEDPort restricted by MACDevice isolation with ACLs |
| Layer 3 features | DHCP for locally-managed networksDHCP relayInter-VLAN routing between networks on same switchStatic routing between local networksNetwork isolation with ACLs |
| Ethernet | LocatingSpeed/linkNative VLAN/network |
| SFP+ | LocatingSpeed/linkNative VLAN/network |
| UniFi Network | Version 8.1.127 and later |
