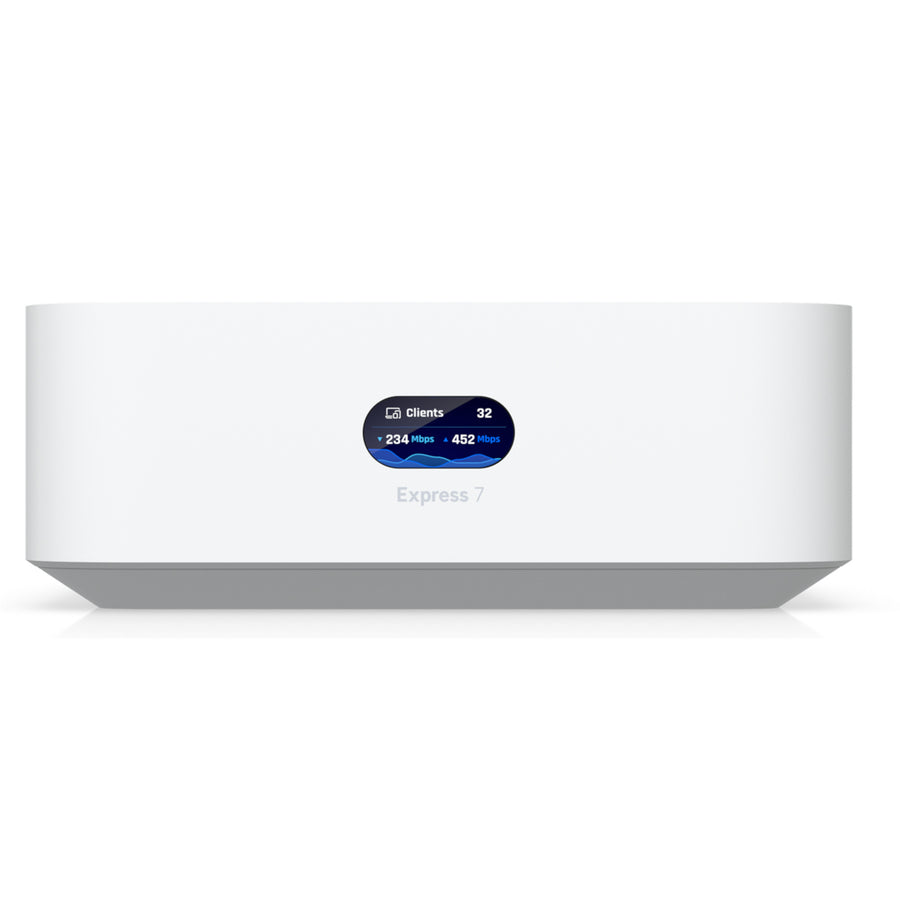

Ubiquiti UX7 - UniFi Express Cloud Gateway WiFi 7 Router 10GigE
$502.82
Free shipping over $299
Genuine product
7-day returns
Ubiquiti UX7 - UniFi Express Cloud Gateway WiFi 7 Router 10GigE
Features
Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.
Specifications
Technical Specifications
| Dimensions | 117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'') |
|---|---|
| Network | Yes |
| Managed UniFi Devices | 30 |
| Simultaneous Users Connected | 300 |

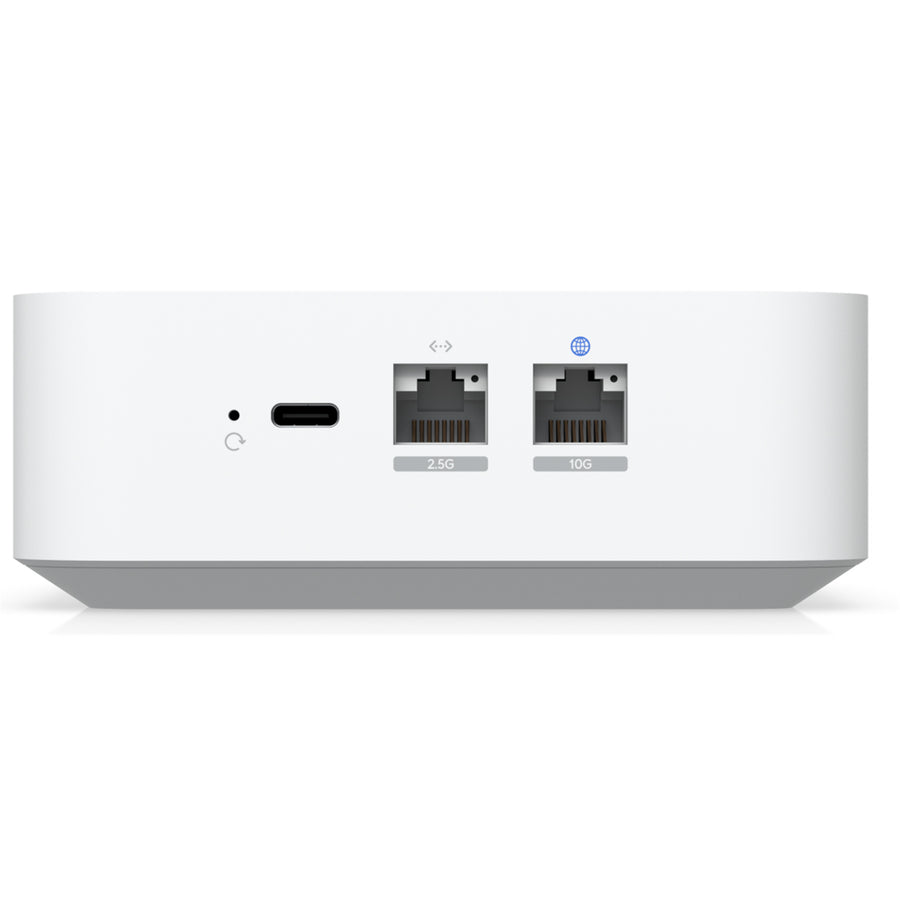

| Default WAN Ports | (1) 10 GbE RJ45 |
| LAN Ports | (1) 2.5 GbE RJ45 |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Compact desktop |
| Stateful Firewall | Yes |
| Application-Aware Layer 7 Firewall | Yes |
| DPI & Traffic Identification | Yes |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | Yes |
| Content Filtering | Yes |
| Intrusion Prevention (IPS/IDS) | Yes |
| Ad Blocking | Yes |
| IDS/IPS Signatures | 20,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation | Yes |
| License-Free SD-WAN | Yes |
| Site Magic | Yes |
| IPsec | Yes |
| OpenVPN | Yes |
| Identity Endpoint One-Click VPN | Yes |
| Teleport Zero-Configuration VPN | Yes |
| WireGuard | Yes |
| OpenVPN | Yes |
| L2TP | Yes |
| OpenVPN | Yes |
| WireGuard | Yes |
| Dynamic Routing/ OSPF | Yes |
| Advanced QoS | Yes |
| Multicast DNS (mDNS) | Yes |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | Yes |
| Integrated RADIUS Server | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Additional Internet Failover with UniFi LTE Backup | Yes |
| Internet Quality and Outage Reporting | Yes |
| Policy-based WAN and VPN Routing | Yes |
| Customizable DHCP Server | Yes |
| IPv6 ISP Support | Yes |
| IGMP Proxy | Yes |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
| Throughput | 6 GHz5.7 Gbps5 GHz4.3 Gbps2.4 GHz688 Mbps |
| MIMO | 6 GHz2 x 2 (DL/UL MU-MIMO)5 GHz2 x 2 (DL/UL MU-MIMO)2.4 GHz2 x 2 (DL/UL MU-MIMO) |
| Antenna Gain | 6 GHz6 dBi5 GHz7 dBi2.4 GHz4 dBi |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max. BSSIDs | 4 per Radio (Gateway Mode)4 per Radio (AP Mode) |
| Supported Data Rates | 802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps802.11b1, 2, 5.5, 11 Mbps802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)802.11ax (WiFi 6/6E)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)802.11be (WiFi 7)7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| Max. Power Consumption | 22W |
| Power Method | USB type C (5V DC/5A) |
| Power Supply | USB type C (5V DC/5A) (Adapter included) |
| Max. TX Power | 6 GHz24 dBm5 GHz26 dBm2.4 GHz23 dBm |
| Supported Voltage Range | 100-240V AC |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | 422 g (14.9 oz) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management | EthernetBluetooth |
| Ethernet | Yes |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Button | (1) Factory-reset |
| VLAN | 802.1Q |
| Guest Traffic Isolation | Yes |
| UniFi Network | Version 9.0.108 and later |
