Ubiquiti
UDB-Switch - Ubiquiti UniFi Device Bridge 8 Port Multigigabit PoE+ Switch with Wi-Fi 7 Connectivity
$750.21
Free shipping over $299
Genuine product
7-day returns
UDB-Switch - Ubiquiti UniFi Device Bridge 8 Port Multigigabit PoE+ Switch with Wi-Fi 7 Connectivity
Features
Device Bridge Switch UDB-Switch (35W)
Compact PoE+ switch* with (1) 10 GbE port, (7) 2.5 GbE ports, and 6 GHz-ready WiFi 7 bridging integration for seamless, high-capacity wireless uplink to UniFi WiFi.
*The Device Bridge Switch provides 35W of PoE power with the included 60W adapter

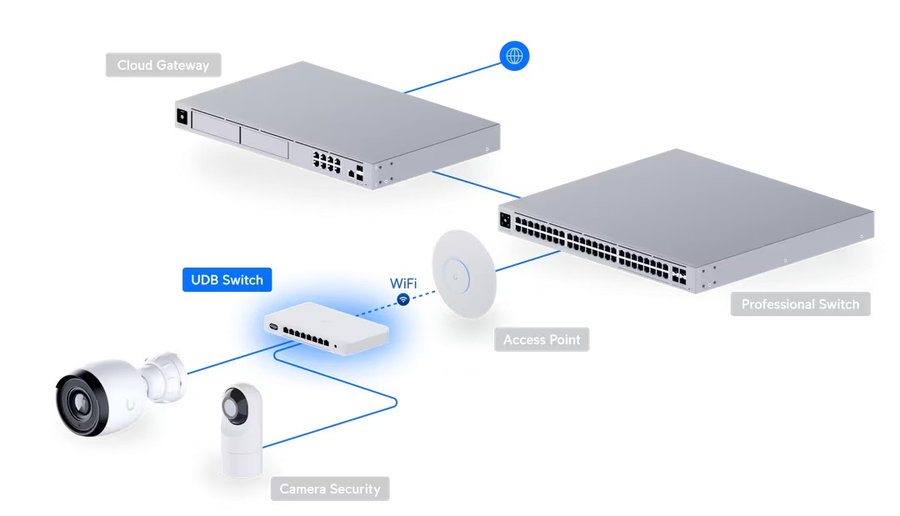

Deployment
Specifications
Technical Specifications

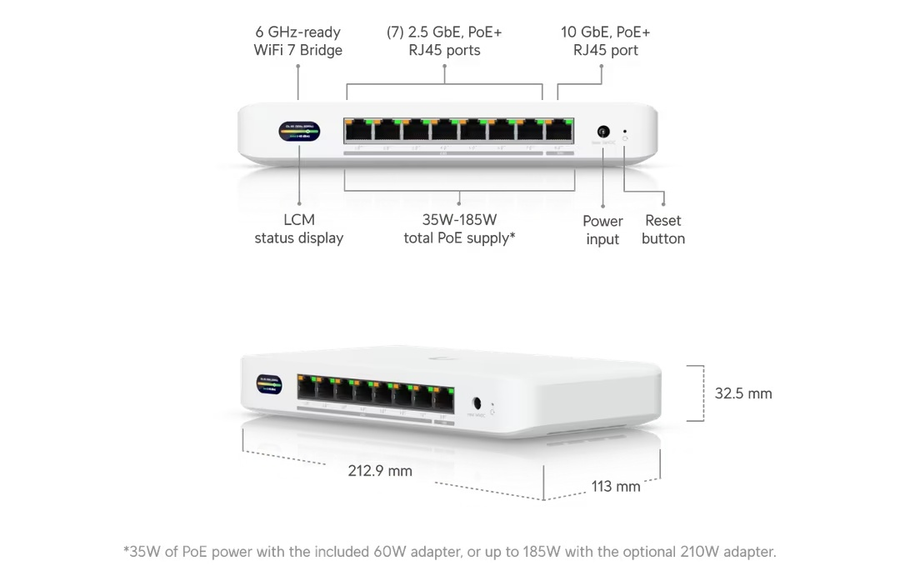

| Dimensions | 212.9 x 113 x 32.5 mm(8.4 x 4.4 x 1.3") |
|---|---|
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |

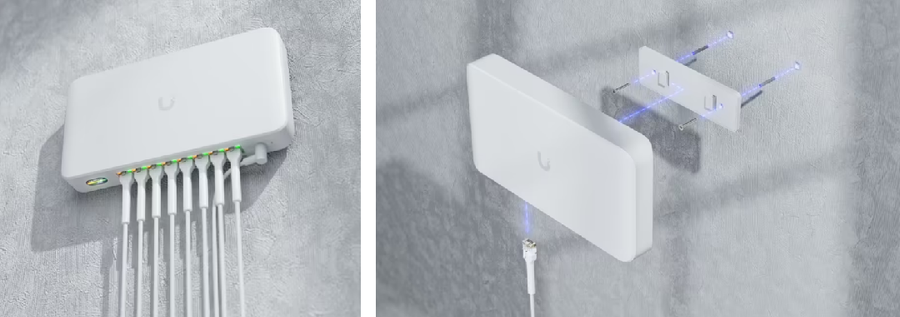

| Mounting Locations | Desktop, wall |
| Power Method | DC jack (54V DC/1.1A) |
| Power Supply | 54V DC/1.1A (Adapter included) |
| MIMO | 6 GHz2 x 25 GHz2 x 2 |
| Max. Data Rate | 6 GHz5.8 Gbps (BW320)5 GHz4.3 Gbps (BW240) |
| Antenna Gain | 6 GHz8 dBi5 GHz8 dBi |
| Max. TX Power | 6 GHz23 dBm5 GHz26 dBm |
| Max. Conducted TX Power | 26 dBm (Combined) |
| Supported Data Rates | 802.11be (WiFi 7)6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA3 SAE (Always On) |
| Max. Power Consumption | 25W (Excluding PoE output) |
| Supported Voltage Range | 42.5-57V DC |
| Networking Interface | (1) 10 GbE RJ45 port(7) 2.5 GbE RJ45 ports |
| PoE Interface | (8) PoE+ ports |
| Max. PoE Wattage per Port | 30W |
| Total PoE Availability | 60W AC adapter input: 35W210W AC adapter input: 185W |
| Antennas | (1) Internal |
| Management | EthernetWiFi |
| Channel Bandwidth | 20/40/80/160/240/320 MHz |
| Weight | Device: 548 g (1.21 lb)With mount: 563 g (1.24 lb) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Button | (1) Factory reset |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Operating Frequency | Worldwide:5150-5875 MHz5945-7125 MHz |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Application Requirements | UniFi NetworkVersion 10.0.156 or later. |
