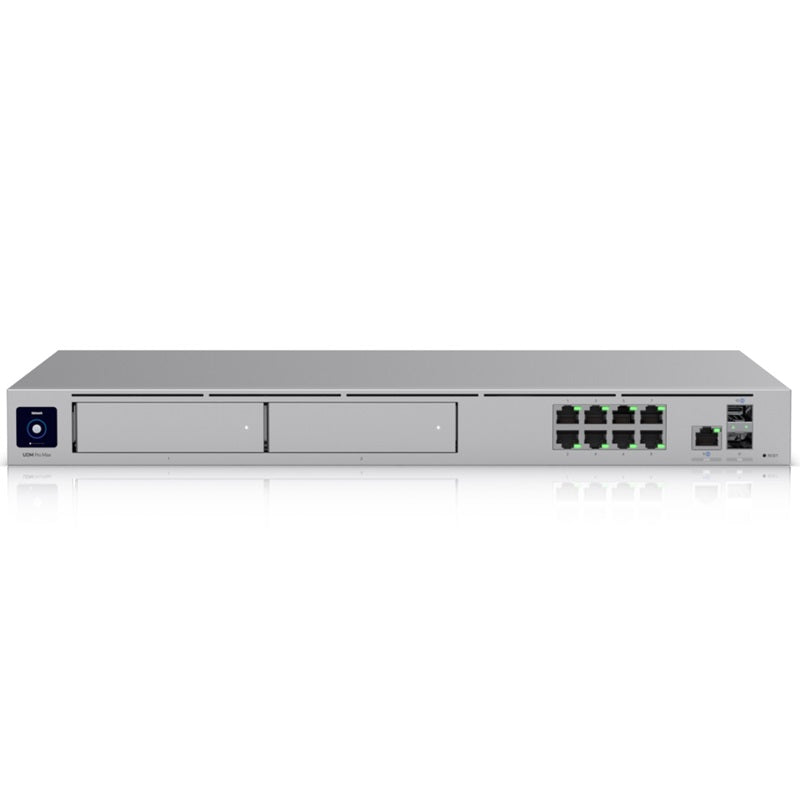

UDM-Pro-Max - Ubiquiti UniFi UDM-Pro-Max Dream Machine Pro Max 10 Gbps Multi-WAN Large Scale UniFi Management Gateway
Ubiquiti

UDM-Pro-Max - Ubiquiti UniFi UDM-Pro-Max Dream Machine Pro Max 10 Gbps Multi-WAN Large Scale UniFi Management Gateway

SKU: UDM-Pro-Max ● In Stock
$1,517.55
Free shipping over $299 Genuine product 7-day returns

UDM-Pro-Max

UDM-Pro-Max - Ubiquiti UniFi UDM-Pro-Max Dream Machine Pro Max 10 Gbps Multi-WAN Large Scale UniFi Management Gateway

Description

Ubiquiti UniFi UDM-Pro-Max Dream Machine Pro Max professional-grade, rack-mount Cloud Gateway with 10 Gbps performance, multi-WAN load balancing, and two NVR drive bays designed for large-scale, multi-application UniFi sites.

Enhanced computing power and memory for 2x the UniFi device and client capacity of Dream Machine Pro/SE
Features
  • Includes full UniFi application suite for device management
  • 5 Gbps routing with IDS/IPS
  • (1) 10G SFP+*, (8) GbE RJ45 LAN ports
  • (1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports
  • (2) 3.5" NVR HDD bays with RAID data protection
  • Built-in 128 GB SSD for NVR detection recordings
  • 1.3" touchscreen
  • Great for Hyperfibre connections

Specifications

Details
Manufacturer's Code UDM-Pro-Max-AU
Processor Quad-core ARM® Cortex®-A57 at 2.0 GHz
System memory 8 GB DDR4
On-board storage 32 GB eMMC
Integrated 128 GB SSD
Management interface Ethernet, Bluetooth
Networking interface LAN: (8) GbE RJ45 ports, (1) 10G SFP+ port; WAN: (1) 2.5 GbE RJ45 port, (1) 10G SFP+ port
IDS/IPS throughput 5 Gbps* Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.
Power method (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz, (1) USP-RPS DC input, 11.5V DC, 8.7A
Power supply AC/DC, internal, 100W
Supported voltage range 100—240V AC
Max. power consumption 100W
ESD/EMP protection Air: ± 15kV, contact: ± 8kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Gateway Performance Redundant WAN with failover and load balancing, WiFi QoS with UniFi APs, Application, domain, and country-based QoS, Application and device type identification, Additional internet failover with LTE Backup, Internet quality and outage reporting
Next-generation security Application-aware firewall rules, Signature-based IPS/IDS threat detection, Content, country, domain, and ad filtering, VLAN/subnet-based traffic segmentation, Full stateful firewall
Advanced networking License-free SD-WAN, WireGuard, L2TP and OpenVPN server, OpenVPN client, OpenVPN and IPsec site-to-site VPN, One-click Teleport and Identity VPN, Policy-based WAN and VPN routing, DHCP relay, Customizable DHCP server, IGMP proxy, IPv6 ISP support
Ethernet LED Green: link/activity
SFP+ LED Green: link/activity
HDD LED White: disk activity, Amber: disk error
RPS Blue: ready
Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight 4.7 kg (10.4 lb)
Enclosure material Aluminium CNC, SGCC steel
Mount material SGCC steel
Ambient operating temperature -10° to 40° C (14° to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
