UISP-Console - Ubiquiti UISP Console with Integrated Switch and Multi-gigabit Ethernet Gateway
UISP-Console - Ubiquiti UISP Console with Integrated Switch and Multi-gigabit Ethernet Gateway
Features

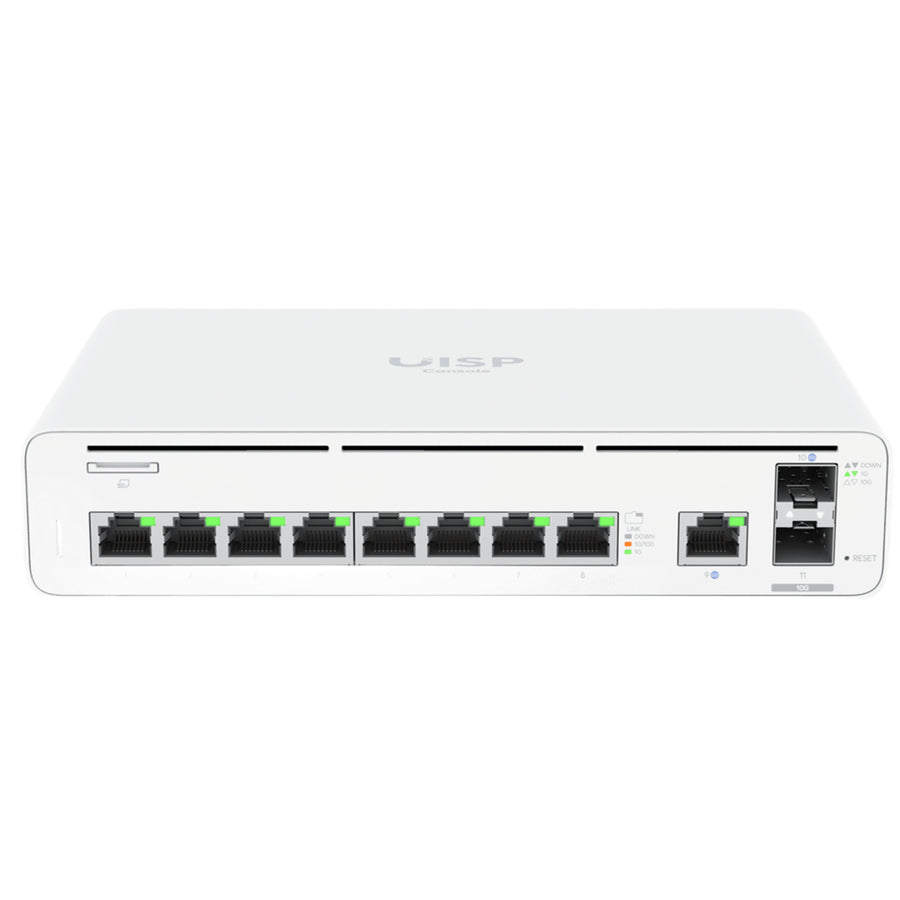

Ubiquiti UISP Console with Integrated Switch and Multi-gigabit Ethernet Gateway Router.

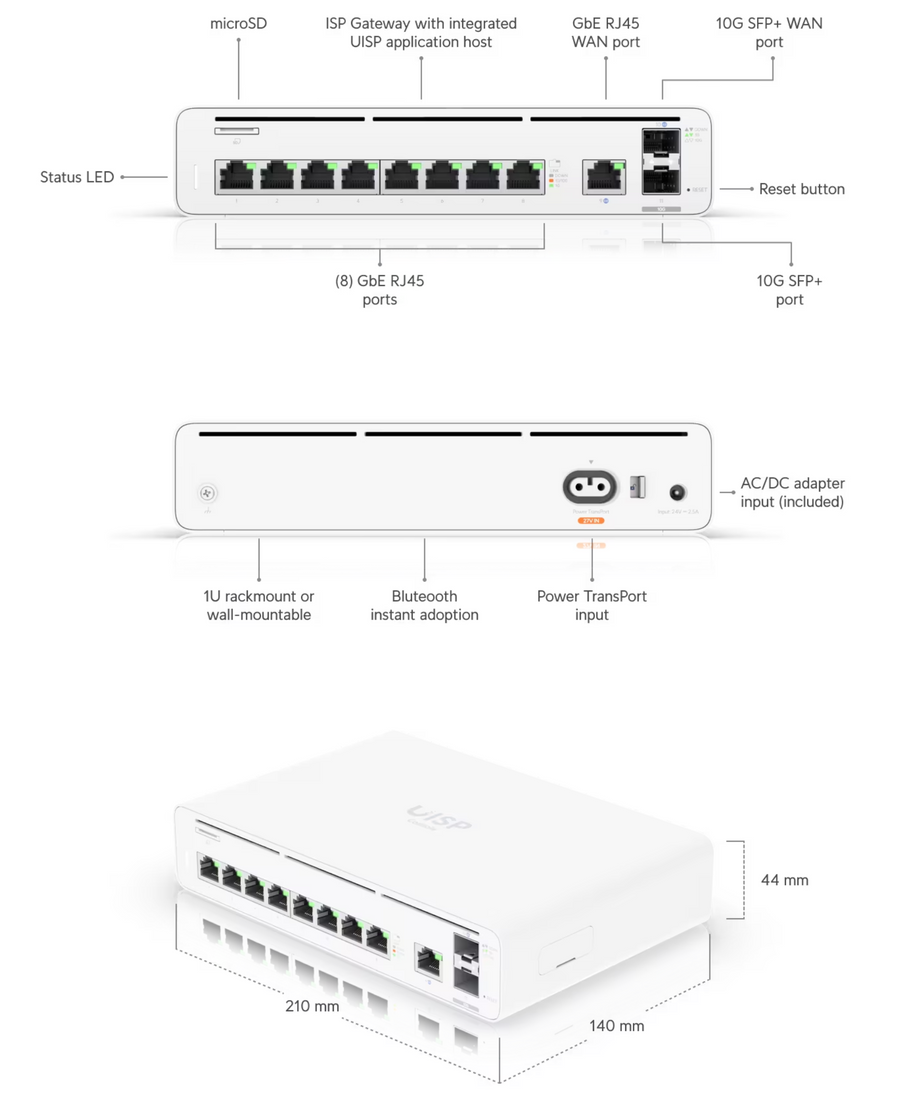

UISP Console is a high-performance gateway with (2) ber-ready SFP+ ports and (9) Gigabit RJ45 ports. It natively supports dual-WAN ports: (1) 10G SFP+ and (1) Gigabit RJ45, and has a built-in switch with (8) Gigabit RJ45 ports.
With its pre-installed UISP application, you can centrally monitor and manage all of your UISP devices.
- (9) GbE RJ45 ports
- (2) 10G SFP+ ports
- Up to 8,500 Mbps NAT throughput*
- Powered by an external AC/DC adapter (included)
- Additional Power TransPort input for DC redundancy
- 1U rack or wall-mountable (kits included)
Building Features
Specifications
Technical Specifications
| Brand | Ubiquiti |
|---|---|
| MPN | UISP-CONSOLE |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| Memory | 4 GB DDR4 |
| Onboard flash storage | 16 GB eMMC |
| Onboard storage | 28 GB SSD |
| Card slot | (1) microSD |
| Networking interface | (8) LAN: GbE RJ45 ports(1) LAN: 1/10G SFP+ port(1) WAN: GbE RJ45 port(1) WAN: 1/10G SFP+ port |
| Management interface | Ethernet In-band, Bluetooth |
| Power method | (1) External AC/DC adapter(1) Power TransPort DC input 27V DC, 1.5A |
| Power supply | 24V DC, 2.5A power adapter (included) |
| Supported voltage range | 24-28V DC |
| Max. power consumption | 30W |
| ESD/EMP protection | Air: ± 15kV, contact: ± 8kV |
| Dimensions | 210.4 x 140.2 x 43.7 mm (8.3 x 5.5 x 1.7") |
| Weight | 1.5 kg (3.2 lb) |
| Enclosure materials | SGCC steel, polycarbonate |
| Operating temperature | -10 to 50° C (14 to 122° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
