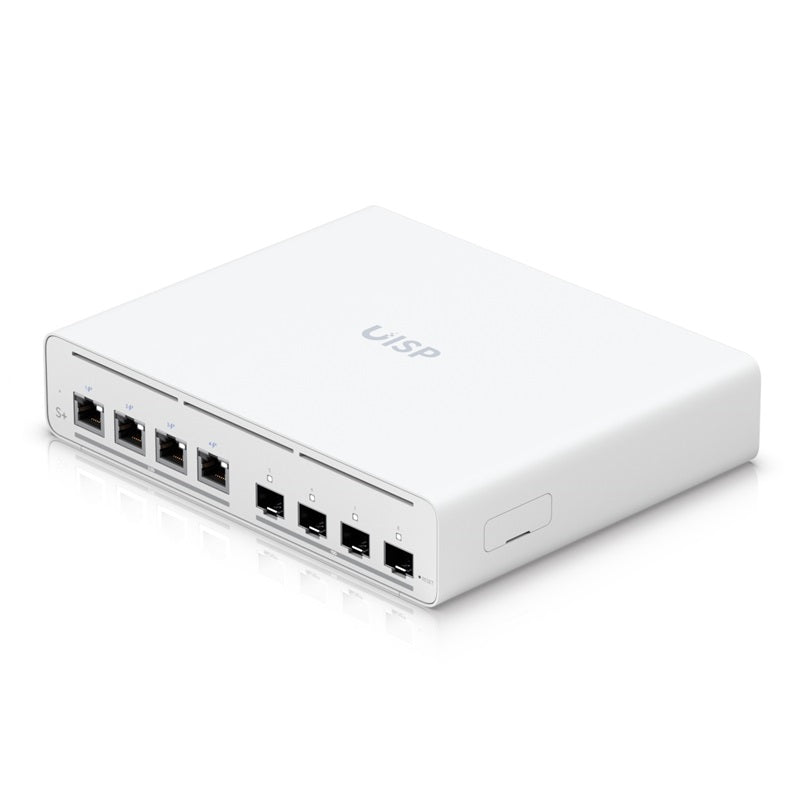

UISP-S-Plus - Ubiquiti UISP Switch Plus 2.5 GbE 160W PoE switch for ISP Applications

SKU: UISP-S-Plus ● Out of Stock

$102.90

Free shipping over $299 Genuine product 7-day returns

UISP-S-Plus

Ubiquiti UISP Switch Plus 2.5 GbE 160 Watt PoE switch for ISP Applications.

Features

(4) 2.5 GbE RJ45 ports with 27V passive PoE output
(4) 10G SFP+ ports
160W (27V) total PoE availability, 20W/port (2-pair) / 40W/port (4-pair)
Port isolation, speed limiting, and DHCP snooping functionality
(1) Power TransPort input for DC redundancy
Desk, wall, 1U rack, and outdoor mounting
Standalone management through local web interface and UISP Application integration

Details
Manufacturer's Code	UISP-S-Plus-AU
Processor	Dual-core ARM®v8 Cortex®-A55 at 1.4 GHz
Memory	1 GB DDR4
Onboard flash storage	256 MB NAND
Networking interface	(4) 1/2.5 GbE RJ45 LAN ports, (4) 1/10G SFP+ ports
Management interface	Ethernet In-band, Bluetooth
Total non-blocking throughput	50 Gbps
Switching capacity	100 Gbps
Forwarding rate	74.4 Mpps
Power method	(1) External AC/DC adapter, (1) Power TransPort DC input 27V DC, 7.04A
Power supply	27V DC, 7.04A power adapter (included), Supported voltage range 24–28V DC
Max. power consumption	25W (Excluding PoE output.)
ESD/EMP protection	Air: ± 15 kV, contact: ± 8 kV
PoE interface	(4) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-); Ports 1 to 4
Total available PoE	160W (With included power adapter.)
Max. passive PoE wattage per port	2-pair mode: 20W/27V DC, 4-pair mode: 40W/27V DC
Passive PoE voltage range	27V DC
System LED	Status
RJ45 data ports LED	PoE, Speed/link/activity
SFP+ data ports LED	Link/activity
Dimensions	210.4 x 170.2 x 43.7 mm (8.3 x 6.7 x 1.7")
Weight	1.75 kg (3.9 lb)
Enclosure materials	SGCC steel, polycarbonate/acrylonitrile butadiene styrene
Management application	UISP
Ambient operating temperature	-10 to 50° C (14 to 122° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
