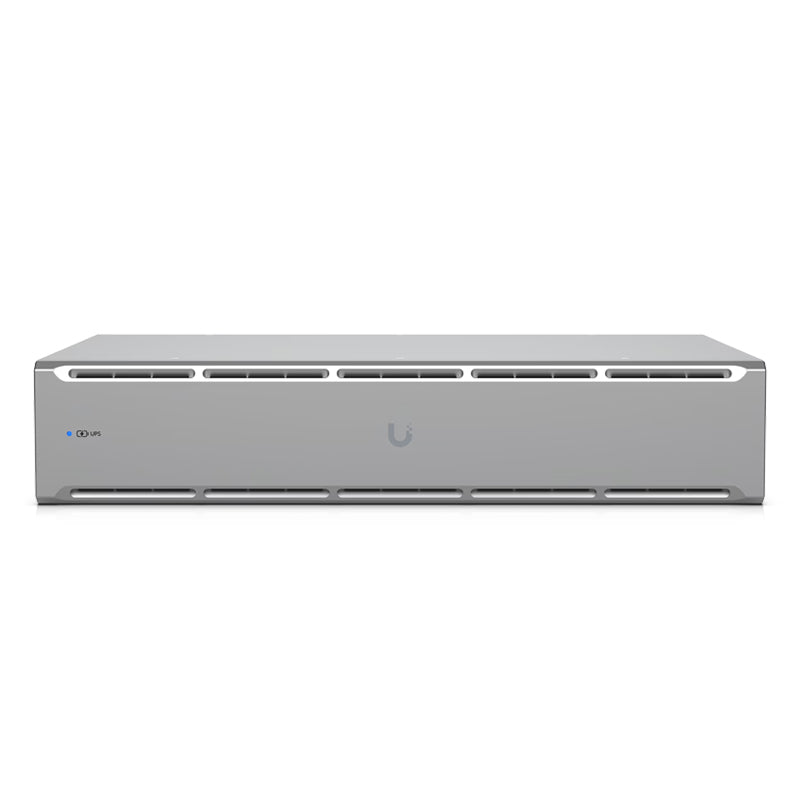

UPS-2U - Ubiquiti UniFi Managed 1500VA 2U Line interactive UPS with Surge protection, UPS-2U-EU
Ubiquiti

UPS-2U - Ubiquiti UniFi Managed 1500VA 2U Line interactive UPS with Surge protection, UPS-2U-EU

SKU: UPS-2U ● Out of Stock
$676.48
Free shipping over $299 Genuine product 7-day returns

UPS-2U

UPS-2U - Ubiquiti UniFi Managed 1500VA 2U Line interactive UPS with Surge protection, UPS-2U-EU

Description

Ubiquiti UniFi 1500VA 2U Line interactive UPS with Surge protection, UniFi managed rackmount uninterruptible power supply with 8 outlets and field replaceable battery, 216Wh, half load (500W) runtime of 8 minutes, UniFi Alarm Manager ready and NUT support for 3rd party devices.

Like all UniFi products, these UPS appliances integrate seamlessly into the UniFi Network application for simple adoption and monitoring. Built-in NUT server capability extending safe shutdown support to third-party servers as well.

Features
  • Seamlessly Integrate to UniFi Network
  • NUT Support for 3rd Party Devices

Specifications

Details
Manufacturer's Code UPS-2U-EU
Management Ethernet
Networking Interface (1) 100/10 MbE port for network connection, (2) GbE ports for surge in/out
Power (1) OVC II AC in: C14 socket, 1.8 m (5.9 ft) removable power cord, (4) Battery backup/surge protection: C13, (4) Surge protection: C13
Capacity 1,500VA/1,000W
Type Line interactive
Input Voltage Range 170–280V AC
Power Method (1) TN system, 220–240V AC, 10A Max., 50/60 Hz
Nominal Input Voltage 230V AC
Output Voltage 220–240V AC
Nominal Output Voltage 230V AC
Frequency Range AC mode: 50/60 Hz ±5 Hz (Auto sensing), Battery mode: 50 Hz ±1 Hz
AC Voltage Regulation ±10% (Battery mode)
Transfer Time 6 ms typical; 10 ms max. (Battery mode)
Wave Form Simulated sine wave (Battery mode)
Battery Type (2) Lead Acid 12V, 9Ah
Runtime Full load: 2.3 min, Half load: 8 min
Battery Charging Time 6-8 hours recovery to 90% capacity
Overload at On-Line Mode 110% 5 min go to fault, 120% go to fault immediately
Overload at Battery Mode 110% shutdown in 5 sec, 120% shutdown immediately
Short Circuit Protection at On-Line Mode Breaker, 250V AC, 10A
Output Short-Circuit Current Ipeak 444.0A, Irms 223.1A
Buttons (1) Power, (1) Factory reset
LEDs Status Off: device not turned on, Flashing white: initializing / factory default, Steady white: waiting for adoption, Steady blue: device adoption and working, Flashing blue: battery mode, Alternating white/blue: firmware upgrading, Rapid flashing blue: locate, Steady red: warning, Flashing red: low battery
Operating Altitude 3,000 m (1.9 mi)
Operating Environment Pollution Degree 2
Ambient Storage Temperature -20 to 50° C (-4 to 122° F)
Ambient Operating Temperature 0 to 40° C (32 to 104° F)
Ambient Operating Humidity 0 to 95% noncondensing
Dimensions 442.4 x 300 x 87.4 mm (17.4 x 11.8 x 3.4")
Weight 13.7 kg (30.2 lb)
Enclosure Material Galvanized steel
Form Factor Rack mount (2U)
Weatherproofing IP20
Certifications CE, IEC 62040-1
