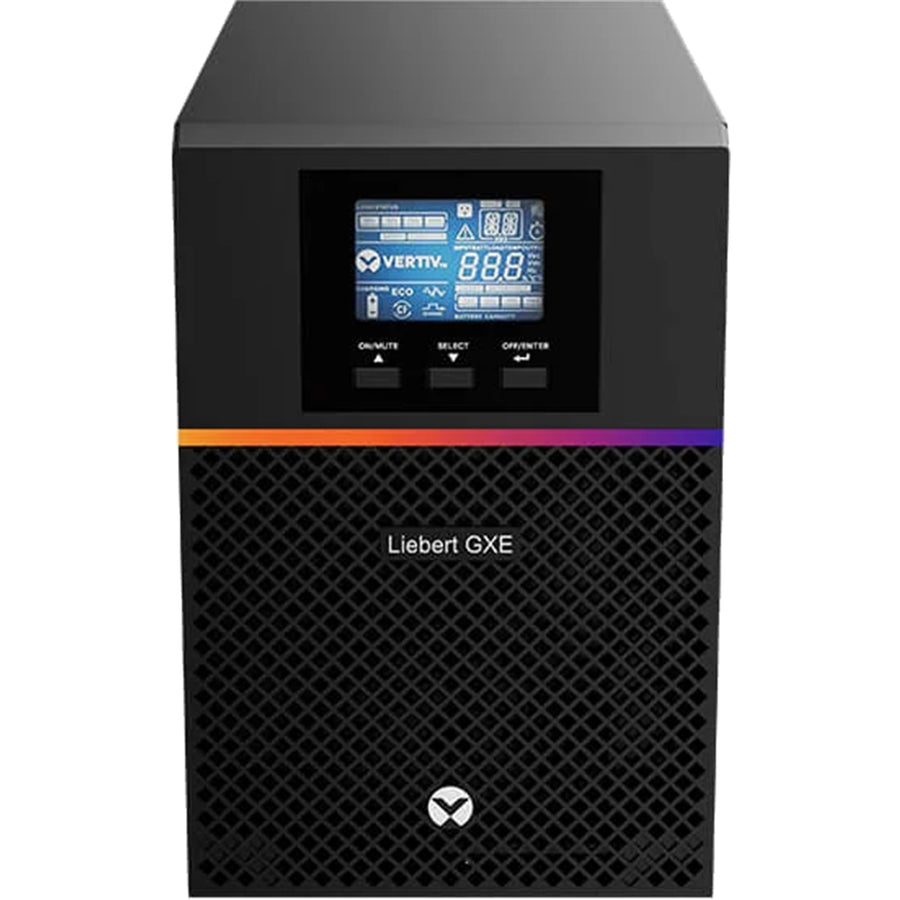

VERTIV 1203744 - UPS GXE On-Line 2000VA/1800W 230V
VERTIV 1203744 - UPS GXE On-Line 2000VA/1800W 230V
Overview
The Vertiv Liebert GXE UPS is an affordable, efficient UPS with high output power factor (0.9PF), which enables continuous and reliable power to more connected devices. With online double conversion technology, this 2kVA compact tower UPS protects devices against many disturbances. With proven reliability, it is ideal for critical applications in financial, government, and manufacturing industries. It has an intuitive LCD for local monitoring, configuration, and control. The high efficiency in both online and ECO modes of operation (up to 95% in ECO mode) for this already affordable UPS further drives energy and operational costs savings. An optional network management card allows remote management and server shutdown via the optional network card or (free) Vertiv Power Insight software. In addition to reliable power, having multiple monitoring options make this compact UPS ideal for delivering best-in-class power protection to equipment at the edge of networks or in remote sites.
- Reliable online double-conversion topology
- High output power factor (0.9) to protect more loads
- Remote management and server shutdown with the optional network management card
- Fast recharge time (<4hrs @90%)
- Hot-swappable user replaceable internal batteries without load shutdown
Technical Specifications
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 2 |
| Output power | 1800 |
| Waveform | Pure sine |
| Input operation voltage (min) | 110 |
| Input operation voltage (max) | 290 |
| Input frequency | 40 - 70 |
| Output operation voltage (min) | 220 |
| Output operation voltage (max) | 240 |
| Surge energy rating | 600 |
| Efficiency (On-line mode) | 89 |
| Efficiency (ECO mode) | 95 |
| EMI/RFI noise filtering | Y |
| Noise level | 53 |
| AC outlet types | C13 coupler |
| AC outlets quantity | 8 |
| USB port | Y |
| Emergency Power Off (EPO) connector | Y |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 4 |
| Typical backup time at full load | 3.2 |
| Typical backup time at half load | 9 |
| Battery life (max) | 5 |
| Battery recharge time | 4 |
| Form factor | Tower |
| Product colour | Grey |
| Display type | LCD |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 50 |
| Operating relative humidity (H-H) | 5 - 90 |
| Operating altitude | 0 - 2000 |
| Compliance certificates | CB,CE,RCM,REACH,RoHS,UKCA,WEEE |
| Cables included | Input power cable,Output power cable,USB cable |
| Quick installation guide | Y |
| Sustainability compliance | Y |
| Width | 160 |
| Depth | 420 |
| Height | 245 |
| Weight | 19400 |
| Package width | 235 |
| Package depth | 560 |
| Package height | 325 |
| Package weight | 20400 |
