Ubiquiti

USW-Enterprise-8-PoE - Ubiquiti UniFi Switch Enterprise 8 PoE+ Switch with 2.5Gbe and SFP+

SKU: USW-Enterprise-8-PoE ● In Stock
$1,177.70
Free shipping over $299 Genuine product 7-day returns

USW-Enterprise-8-PoE - Ubiquiti UniFi Switch Enterprise 8 PoE+ Switch with 2.5Gbe and SFP+

Features

Layer 3, PoE switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.

The Switch Enterprise 8 PoE (USW Enterprise 8 PoE) is a fully managed, Layer 3* switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.The USW Enterprise 8 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

- (1) 1.3" LCM color touchscreen with AR switch management
- (8) 2.5GbE, 802.3at PoE+ RJ45 ports
- (2) 10G SFP+ ports
- 120W total PoE supply

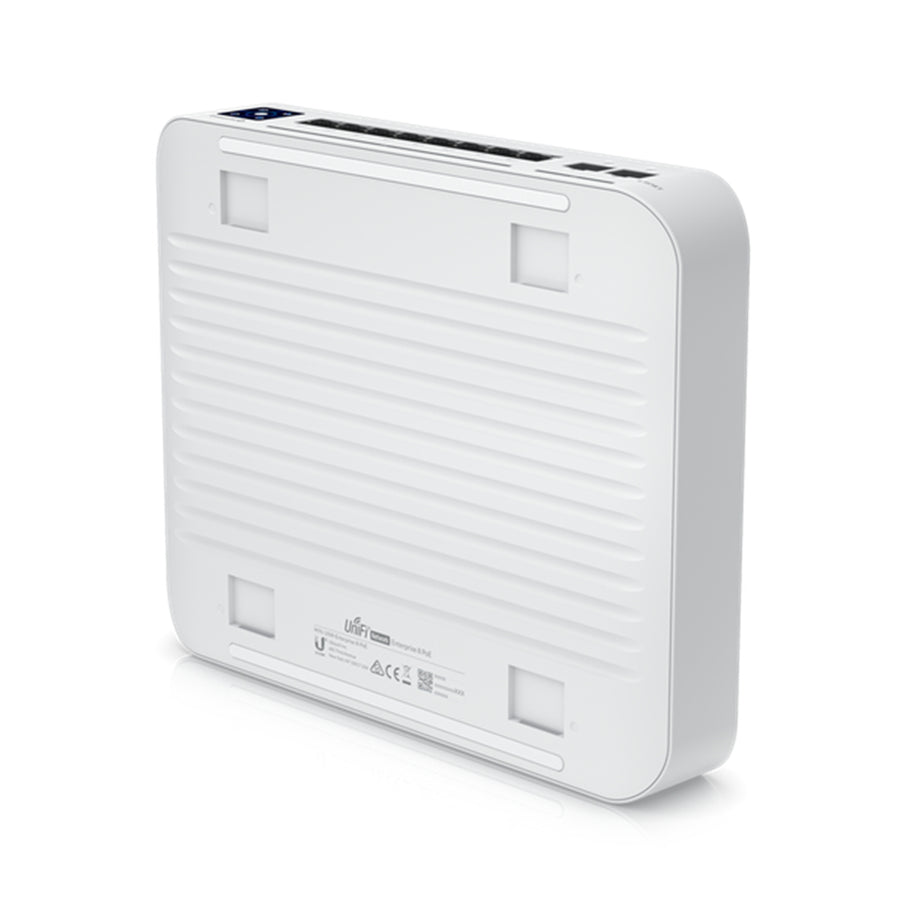

- Wall-mountable (kit included)

* Layer 3 switching will become available in a future firmware update.
Managed with the UniFi Network application: Version 6.3.51 and later

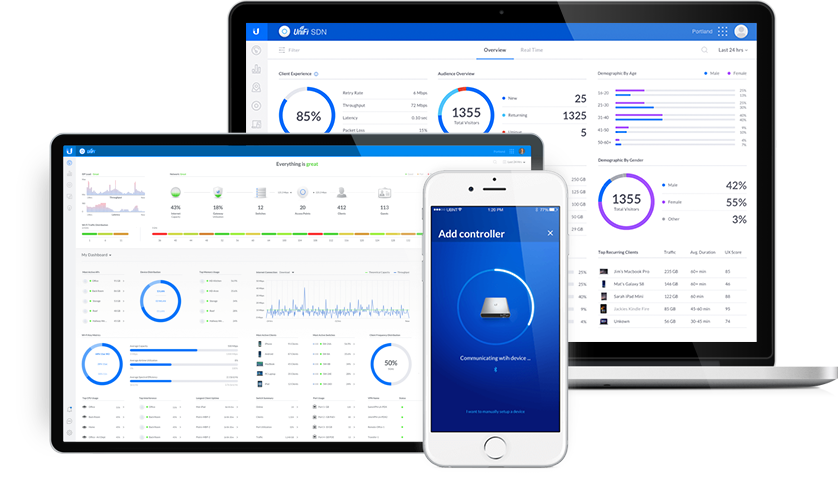

Works with the UniFi Network Application

- Centrally manage multiple networks from an intuitive interface
- Enjoy real-time device insights and deep configuration options
- Upgrade device firmware remotely
- Manage network users and guests with ease
- Personalize the design, architecture, and privacy of guest hotspots
- Set up devices quickly and manage them on the go with a powerful mobile app

Specifications

Technical Specifications

Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
Weight 2.4 kg (5.29 lb)
Enclosure Materials Polycarbonate
Mount Material Polycarbonate
Total Non-Blocking Throughput 40 Gbps
Switching Capacity 80 Gbps
Forwarding Rate 59.52 Mpps
Max PoE Power 120W
Power Method (1) 100-240VAC, 2A Max., 50/60 Hz, Universal Input
Power Supply AC/DC, Internal, 150W
Management Interface Ethernet In-Band
Networking Interfaces (8) 1/2.5 Gbps RJ45 Ethernet
SFP+ Interfaces (2) 1/10 Gbps SFP+
PoE Interfaces (8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max. PoE+ Wattage per Port by PSE 32W
Voltage Range 802.3af Mode 44 to 57V
Voltage Range 802.3at Mode 50 to 57V
Services SMB Layer 3* PoE Gigabit Ethernet Switch* Layer 3 feature will be available in the future firmware release.
LCM Display (1) 1.3" TouchscreenBootup Animation: Bootup in ProgressFirmware Upgrade Icon: Firmware UpgradingSteady White: Factory Defaults, Awaiting AdoptionSteady Blue: Device is Adopted
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
Ethernet White: Link or Activity
SFP+ White: Link or Activity
