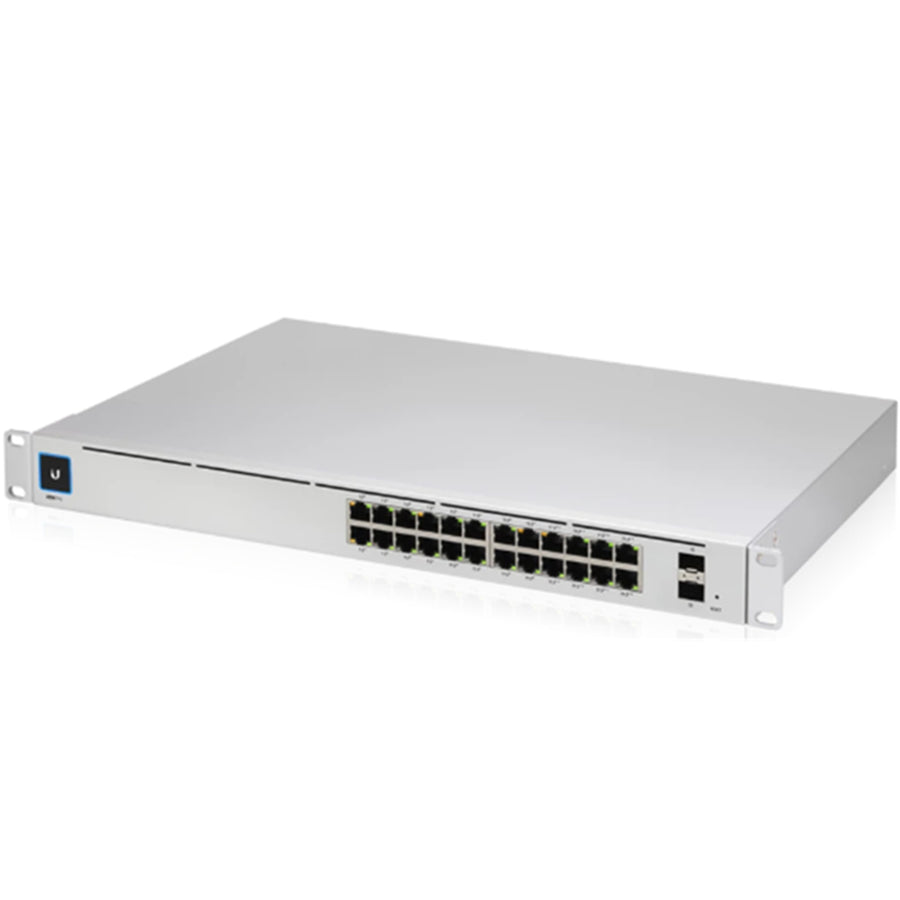

USW-Pro-24 - Ubiquiti UniFi Professional 24Port Gigabit Switch with Layer3 Features and SFP+
USW-Pro-24 - Ubiquiti UniFi Professional 24Port Gigabit Switch with Layer3 Features and SFP+
Features
The USW-PRO-24-POE is a configurable Gigabit Layer2 and Layer3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Sixteen PoE+ and eight PoE++ RJ45 ethernet ports have total 400W PoE budget, and two SFP+ ports offer 10Gbps uplink options. Near-silent cooling and a 1.3" touch LCM.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower - One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.
Synchronized LCM Displays
Touch one to wake up all the screens and view a rich set of information.
Specifications
Technical Specifications
| Model number | USW-PRO-24-POE |
|---|---|
| Placement: | rack 19" |
| Managed: | yes |
| Switching capacity (Gbps): | 88 |
| Switch throughput (Mpps): | 65,472 |
| Port Speed: | 1 Gb/s + 10 Gb/s |
| Fanless: | yes |
| Stackability: | no |
| PoE-in: | no |
| PoE-out: | 802.3at |
| PoE-out: | 802.3bt |
| PoE-out (number): | 24 |
| Display: | yes |
| Gigabit LAN: | yes |
| RJ-45: | 24 |
| SFP+: | 2 |
| RS-232 port: | no |
| PoE support: | yes |
| Power type: | internal power supply |
| Input Voltage (V): | 100 - 240 |
| Color: | silver |
| Dimensions: | 442,4 x 285,4 x 43,7 mm |
| Weight (g): | 4300 |
