Ubiquiti
USW-Pro-XG-8-PoE - Ubiquiti UniFi Professional XG 8-port 10GbE Layer 3 Etherlighting PoE++ Switch
$1,247.90
Free shipping over $299
Genuine product
7-day returns
USW-Pro-XG-8-PoE - Ubiquiti UniFi Professional XG 8-port 10GbE Layer 3 Etherlighting PoE++ Switch
Features
Specifications
Technical Specifications

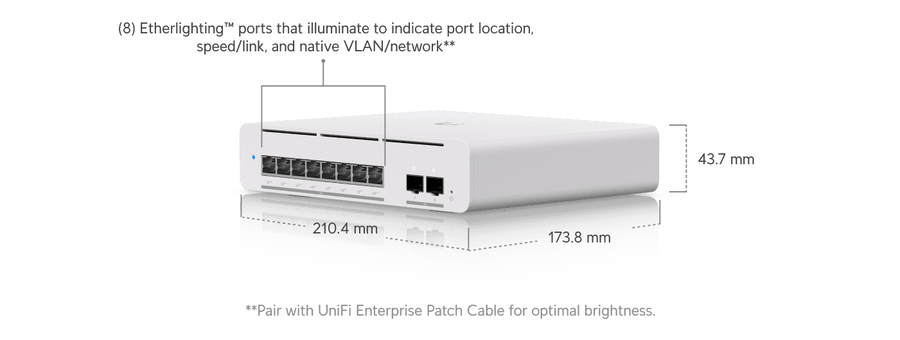

| Dimensions | 210.4 x 173.8 x 43.7 mm(8.28 x 6.84 x 1.7") |
|---|---|

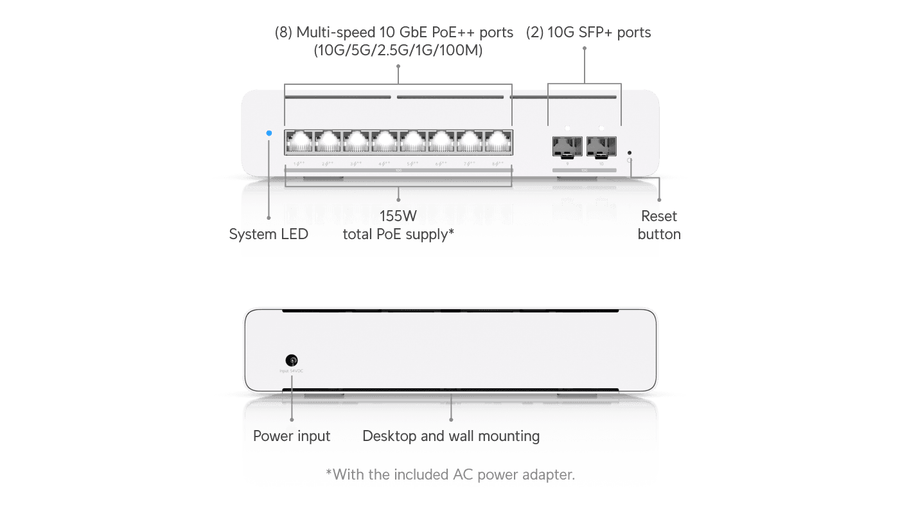

| Port Layout | 10 GbE RJ458 (All PoE++) (10G/5G/2.5G/1G/100M)10G SFP+2 (10G/1G) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 155W |
| Layer 3 | Yes |
| Form Factor | Compact desktop, wall |
| Etherlighting™ | Yes |
| Switching Capacity | 200 Gbps |
| Total Non-Blocking Throughput | 100 Gbps |
| Forwarding Rate | 149 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| L3 Table Size | ARP Entries12,000IPv4 Routes12,000 |
| Packet Buffer Size | 2 MB |
| Access Lists | IPv4128MAC128 |
| DHCP Server (Local Networks) | Yes |
| DHCP Relay | Yes |
| Inter-VLAN Routing (Local Networks) | Yes |
| Static Routing (Local Networks) | Yes |
| LACP Port Aggregation | Yes |
| STP & RSTP | Yes |
| QoS (DSCP) | Yes |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) | Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | Yes |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
| PoE Ports | PoE++8 |
| Max. PoE Wattage per Port by PSE | PoE15.4WPoE+30WPoE++60W |
| Max. Power Consumption | 61W (Excluding PoE output)220W (Including PoE output) |
| Power Method | AC/DC Adapter (included) |
| Power Input Method | DC input |
| Power Supply | AC/DC, external, 210W |
| Supported Voltage Range | 50-57V DC |
| Management | EthernetAR |
| Weight | 1.6 kg (3.5 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | Polycarbonate |
| ESD Protection | Air: ± 30kV, contact: ± 30kV |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Etherlighting™ | EthernetYesSFP+Yes |
| LEDs | SystemYes |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Application Requirements | UniFi NetworkVersion 9.0.114 and later |
