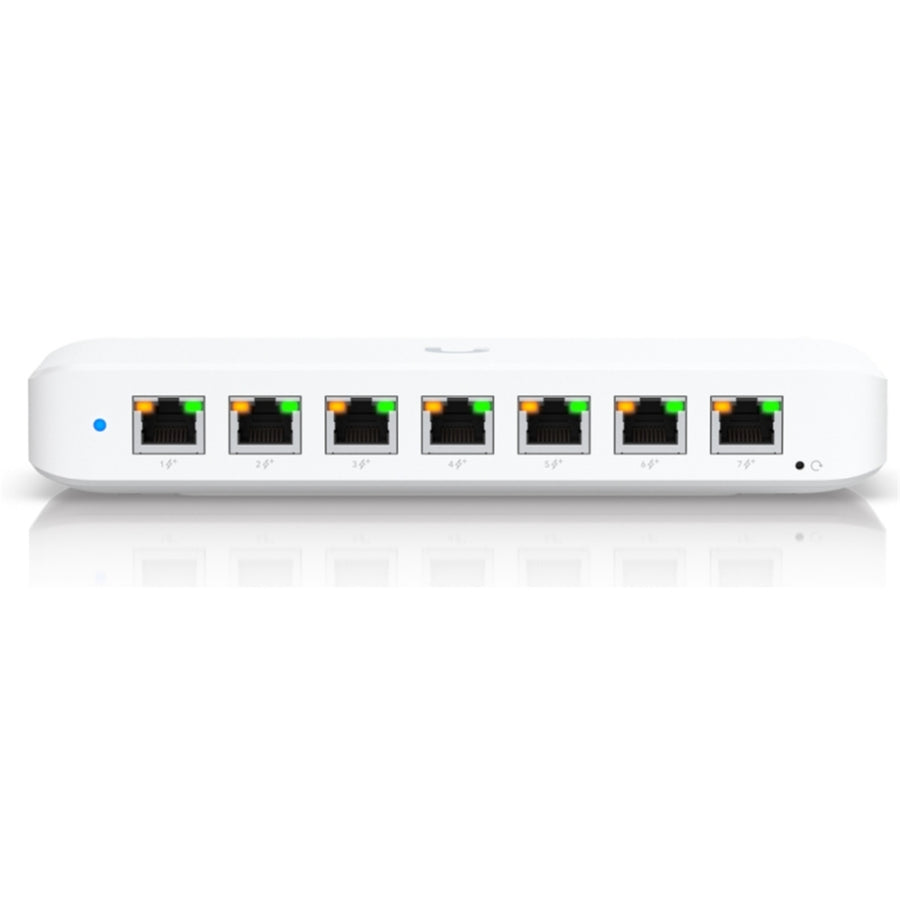

USW-ULTRA-60W - Ubiquiti UniFi Ultra 52W Compact 8-port, Layer 2 GbE PoE switch with versatile mounting options
$352.05
Free shipping over $299
Genuine product
7-day returns
USW-ULTRA-60W - Ubiquiti UniFi Ultra 52W Compact 8-port, Layer 2 GbE PoE switch with versatile mounting options
Features
A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
- (7) GbE PoE+ output ports
- (1) GbE port with optional PoE++ input*
- 52W PoE availability with the included AC power adapter
Specifications
Technical Specifications
| Dimensions | 203 x 76 x 33 mm (8 x 3 x 1.3") |
|---|---|
| Weight | Device: 320 g (11.3 oz)Wall mount: 45 g (1.6 oz)60W adapter: 330 g (11.6 oz) |
| Enclosure material | Polycarbonate |
| Management interface | Ethernet In-Band |
| Networking interface | (8) GbE RJ45 ports |
| PoE interface | (7) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 8 Gbps |
| Switching capacity | 16 Gbps |
| Forwarding rate | 11.904 Mpps |
| Power method | (1) 54V, 1.1A power adapter (Included)PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-) |
| Power supply | 54V, external, 1.1A/60W |
| Supported voltage range | 44-57V DC |
| Max. power consumption | 9W with PoE input (Excluding PoE output)8W with AC adapter input (Excluding PoE output) |
| Total available PoE | PoE++ input: 42WPoE+ input: 16W60W PoE adapter input: 42W60W AC adapter input: 52W210W AC adapter input: 202W**At 45° C (113° F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60° C (140° F) |
| Max. PoE+ wattage per port by PSE | 30W |
| Button | Factory reset |
| Ambient operating temperature | PoE++ input: -30 to 60° C (-22 to 140° F)60W AC adapter input: -20 to 45° C (-4 to 113° F)210W AC adapter input: -20 to 60° C (-4 to 140° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Layer 2 features | Port isolationStorm controlPort mirroringMulticast / broadcast rate limitingFlow controlJumbo framesEgress rate limit |
| System | Status |
| Ethernet | PoELink/activity |
| UniFi Network | Version 8.0.7 and later |
