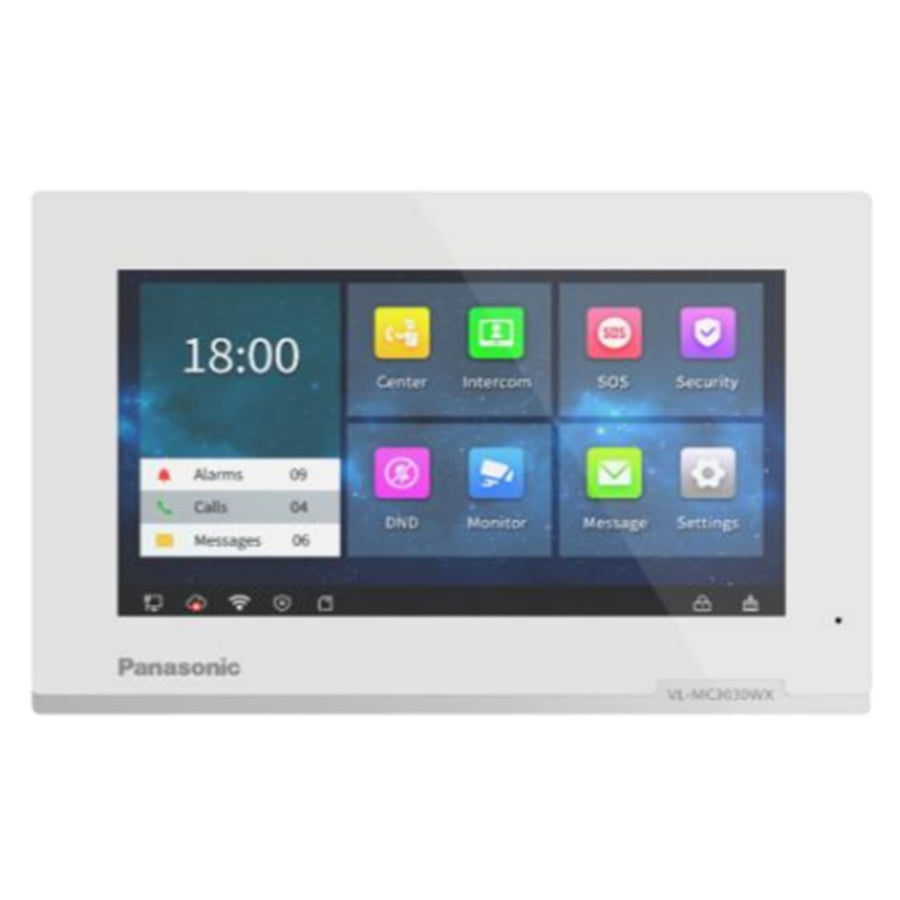

VL-MC3030WX - IP VIDEO INTERCOM COMMERCIAL MONITOR

SKU: VL-MC3030WX ● In Stock
$421.88
Free shipping over $299 Genuine product 7-day returns

VL-MC3030WX - IP VIDEO INTERCOM COMMERCIAL MONITOR

Features

Security at Every Level

Multi-tiered Security
Ensure safety at all access points - from Guard House/Reception to Lobby Entrance to Residents' Unit. Unauthorized access is intercepted with integrated video intercom devices and security cameras.



Contactless and Secure Access
QR code and facial recognition make entering your building seamless and secure. These contactless methods provide convenience and efficiency for residents and visitors alike.

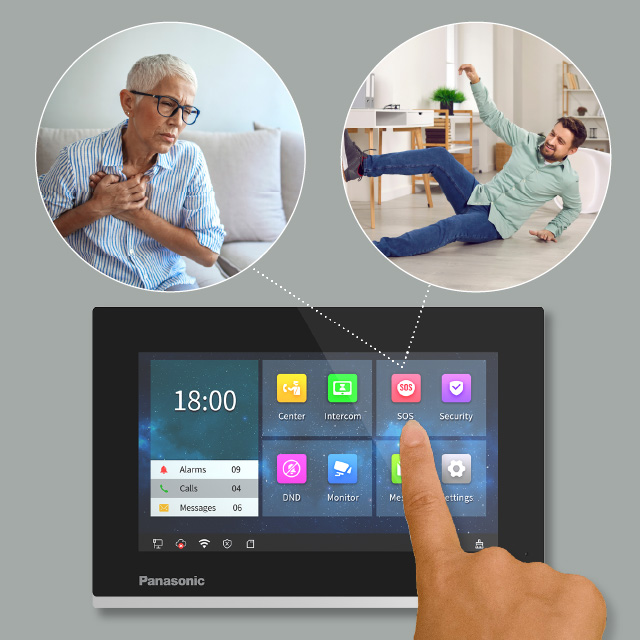

Emergency SOS Alerts
Stay safe during emergencies with a one-touch SOS button that instantly sends alerts security personnel and your family members' smartphones.



Convenient Lifestyle

Remote Control & Access
Easily manage visitor calls, unlock doors, and control elevator access from anywhere using smartphone or Room Monitor for ultimate convenience.

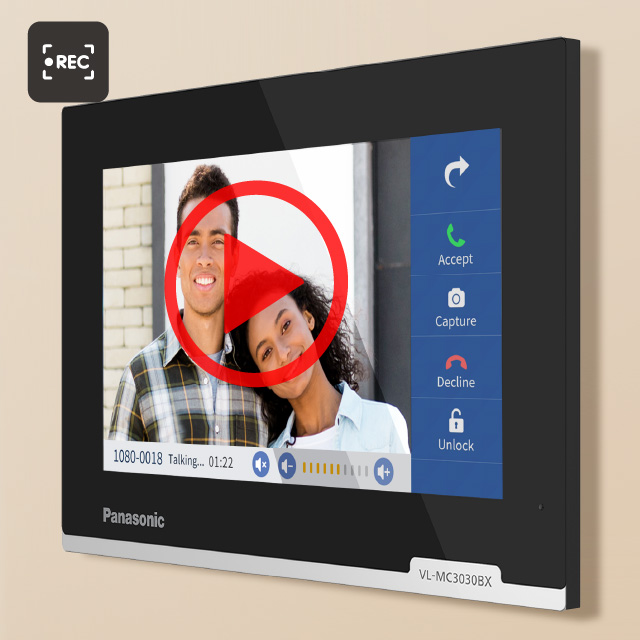

Video and Audio Recording
Record video and audio automatically during calls. You can revisit the footage for added security and peace of mind. Visitors can also leave messages.



Privacy-Control Voice Changer
Safeguard your identity with a built-in voice changer that allows real-time transformation from a female to a male voice during calls.



Elevator Access Control Integration

Contactless Guide to Your Guests and Deliveries
Using the room monitor or smartphones, residents can control the elevator to receive guests or deliveries. By specifying the exact floor, the elevator will stop accordingly so guests will easily find the unit and be prevented from roaming to other floors.



On-time Departure At Your Convenience
Residents can control the elevator even before leaving their unit to eliminate waiting time.



Seamless Connectivity

IP Video Intercom Server Options
You can choose between a local server setup for enhanced control or a cloud server for greater flexibility.

Specifications

Technical Specifications

Power Source PoE (IEEE 802.3af compliant, Class 0 device)
Operating Voltage PoE 48V or 12 to 27VDC
Current Rating POE 48V, 160mA or DC 12V, 630mA; or DC 27V, 280mA
Power Consumption Standby: 2.7W; Operating: 3.8W (excluding power out)
Installation Method Surface mount with magnet
Colour White
Dimensions (H x W x D) (Excluding protruding sections)  Approx. 130mm x 194mm x 15.9mm
Operating Temperature -25°C to +50°C
Storage Temperature -40°C to +70°C
Operating Humidity Up to 90% (non-condensing)
IP rating (Ingress Protection) IP30
IK rating (Impact Protection) -
Talking Method Hands-free
Display Language English, Chinese, Vietnamese, Indonesian and Thai
Casing Material PMMA + ABS
Weight Without package 330g
Operation system Linux
Flash 128MB
RAM 64MB
Storage (MicroSD Card) 32GB (Included)
Size 7-inch wide colour display
Operation Method Capacitive touch screen
Display Resolution 1024 x 600
Video Codec H.264 & H.265
Video Resolution VGA, 720P
Audio Compression G.711
Speaker 8Ω / 0.5W
Microphone -56 ± 2dB
Wi-Fi Supported (WLAN 2.4GHz) Wiring UTP (Cat 5e or higher)
Wiring UTP (Cat 5e or higher)
Protocol IPv4; TCP/IP; ICMP; UDP; RTSP; HTTP; DNS; RTP; RTMP; ARP; NTP
Network Interface RJ45, 10BASE-T/100BASE-TX (Auto MDI/MDI-X)
Power Out Port 12V, 200mA max (Output for alarm zone devices)
Alarm Input 8
Doorbell Port 1
Linked IP Camera 6 (Private IPC) + 12 (Public IPC)
Text Messages 100
Voice Messages 10
Intercom Logs 100
Alarm Logs 100
Recording 100*With MircoSD card (video with audio)
