MikroTik

wAPGR-5HacD2HnD_EC200A-EU - MikroTik wAP AC LTE Kit Outdoor Wi-Fi Access Point with EC200 Cat4 Modem

SKU: wAPGR-5HacD2HnD_EC200A-EU ● In Stock
$299.12
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

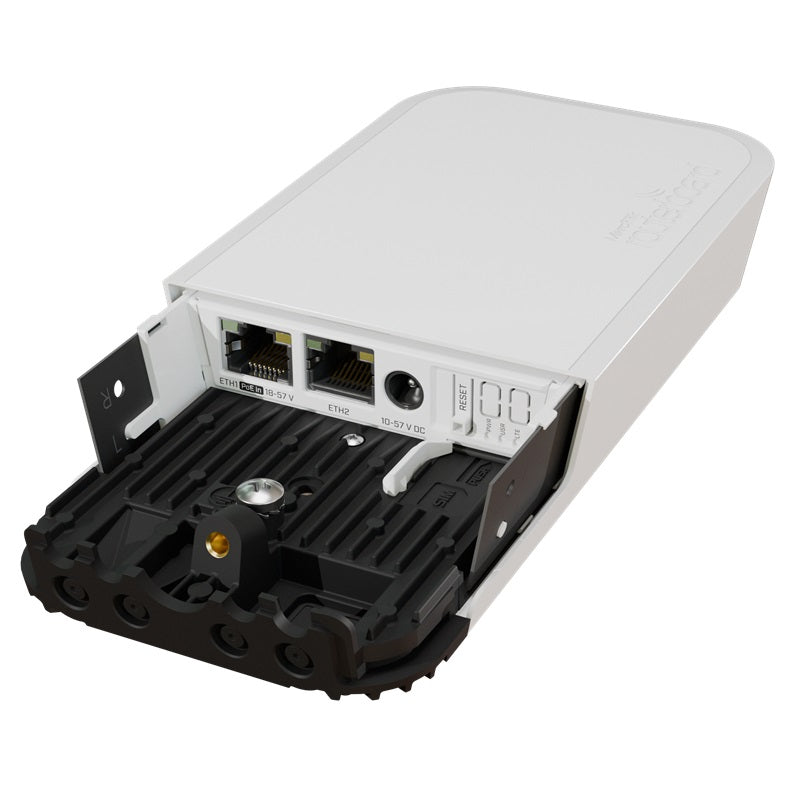

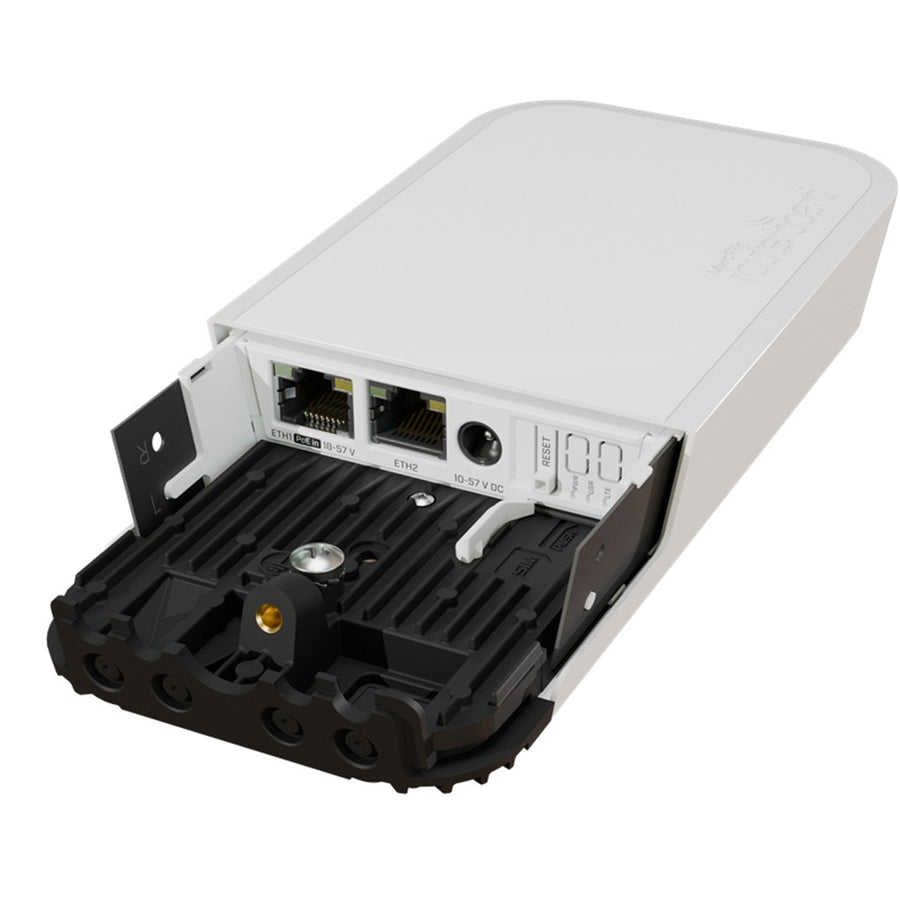

The wAP ac LTE kit is a tiny dual-band weatherproof wireless access point for installation outside your house, in the garden, on your porch, or in any other challenging environment where you need a capable wireless connection on a tight budget. Two Gigabit ports allow using the speedy built-in LTE modem as a mobile internet backup connection, in case you already have a wired ISP.

The new revision features a new LTE modem that offers improved connectivity, the addition of the popular B28 band.

wAP ac LTE kit is weatherproof and can be fixed to any external wall from the inside of the case - for extra security and less visible attachments. The bottom part can also be secured with a special anti- vandal screw, which can only be opened by the owner.

There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP attracts less attention and blends into any environment.

- RouterOS V7
- Extensive LTE Band Support
- Durable and Compact Outdoor Enclosure
- Micro-SIM Slot
- 2 x Gigabit Ethernet

Specifications

Technical Specifications

MPN wAPGR-5HacD2HnD_EC200A-EU
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency auto MHz
Switch chip model IPQ-4018
RouterOS license 4
Operating System RouterOS v7
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
Wireless Standards 2.4GHz: 802.11b/g/n, 5GHz: 802.11a/n/ac
10/100/1000 Ethernet ports 2
Number of SIM slots 1 Modem (Micro SIM)
MiniPCI-e slots 1
PCB temperature monitor Yes
Voltage Monitor Yes
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -30°C to 60°C
IPsec hardware acceleration Yes
LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands 20 (800MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 5 (850MHz) / 28 (700MHz)
LTE TDD bands 40 (2300MHz) / 38 (2600MHz) / 41 (2500MHz)
TAC 86314105
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 10-57 V
Max power consumption 12 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 18-57 V
Package Contents 24V 0.8A power adapter, K-52 fastening set, Gigabit PoE injector, K-50 locking set, wAP desktop stand, wAP ceiling mount bracket, wAP mount, Hose clamp
