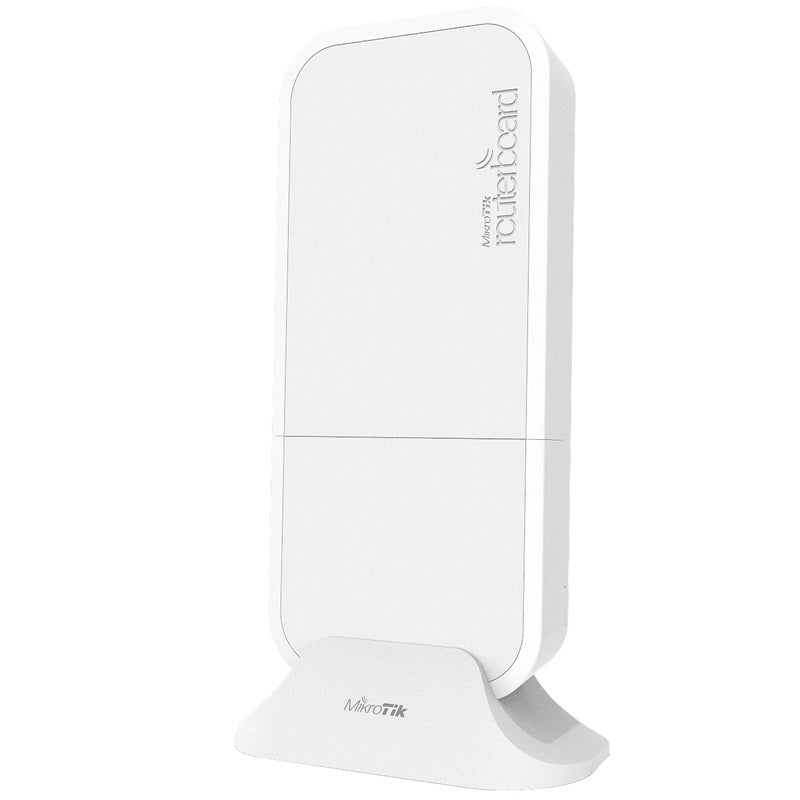

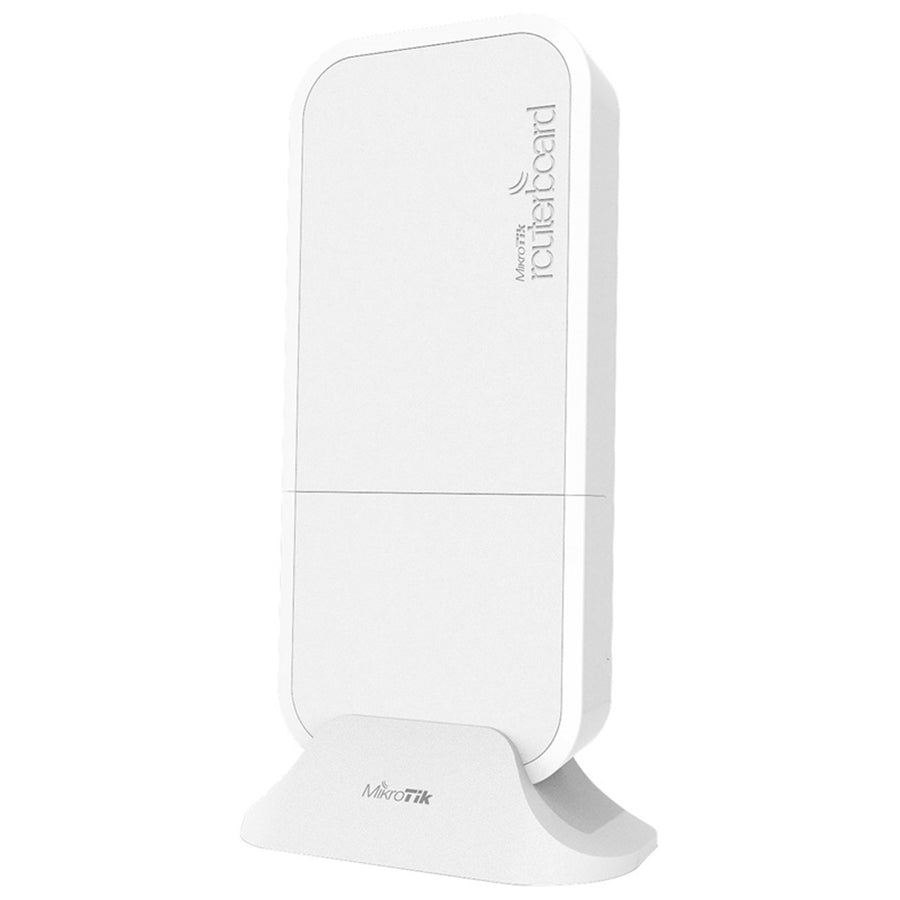

wAPR-2nD&EC200A-EU - MikroTik wAP LTE Kit 4G LTE Outdoor Wi-Fi Access Point wAPR-2nD&EC200A-EU
Features
MikroTik wAP LTE Kit 4G LTE Outdoor Wi-Fi Access Point wAPR-2nD&EC200A-EU. wAP LTE kit is a tiny weatherproof wireless access point for installation outside your house, in the garden, on your porch, or in any other challenging environment where you need a capable wireless connection on the tightest budget possible. It features an Ethernet port with passive PoE-in, but there are more ways to power this affordable access point: there's also a standard DC jack and an automotive plug.
The new revision features a new LTE modem that offers improved connectivity, the addition of the popular B28 band.
wAP LTE kit is weatherproof and can be fixed to any external wall from the inside of the case - for extra security and less visible attachments. The bottom part can also be secured with a special anti-vandal screw, which can only be opened by the owner. There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP attracts less attention and blends into any environment.
Specifications
Technical Specifications
| MPN | wAPR-2nD&EC200A-EU |
|---|---|
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) |
| LTE FDD bands | 20 (800MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 5 (850MHz) / 28 (700MHz) |
| LTE TDD bands | 40 (2300MHz) / 38 (2600MHz) / 41 (2500MHz) |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| 10/100 Ethernet ports | 1 |
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| PCB temperature monitor | Yes |
| Voltage Monitor | Ye |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |
| Number of DC inputs | 3 (DC jack, PoE-IN, Automotive) |
| DC jack input Voltage | 9-30 V DC |
| Automotive input Voltage | 9-30 V DC |
| Max power consumption | 7 W |
| Cooling type | Passive |
| PoE in | Passive PoE, 9 - 30 V DC |
| Certification | CE, E-MARK, EAC, ROHS |
| IP | 54 |
| Brand | MikroTik |
|---|---|
| Product Type | Networking > Wireless Access Points |
| Weight | 2.0 kg |
| Warranty |
|---|
