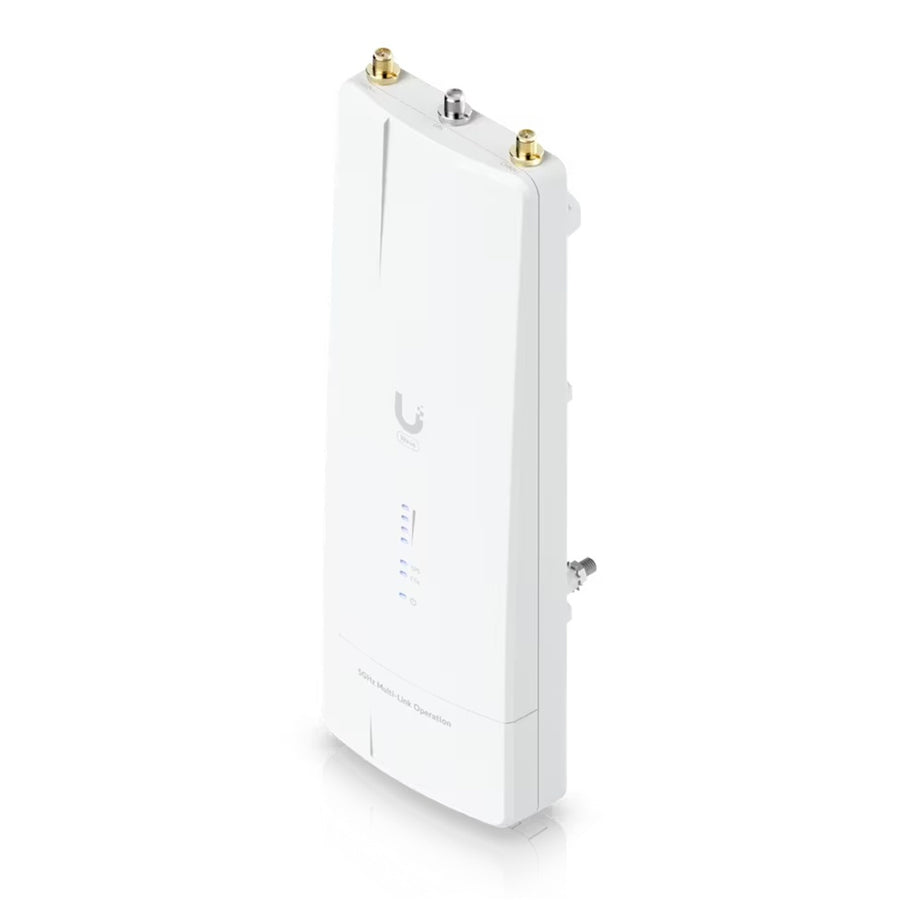

Wave-MLO5 - Ubiquiti UISP Wave MLO5 High-Performance Dual 5 GHz WiFi 7-Based PTP Radio
Features
Wave MLO5
High-performance dual 5 GHz WiFi 7-based radios with Multi-Link Operation (MLO) technology for enhanced throughput and reliable connectivity.
Specifications
Technical Specifications

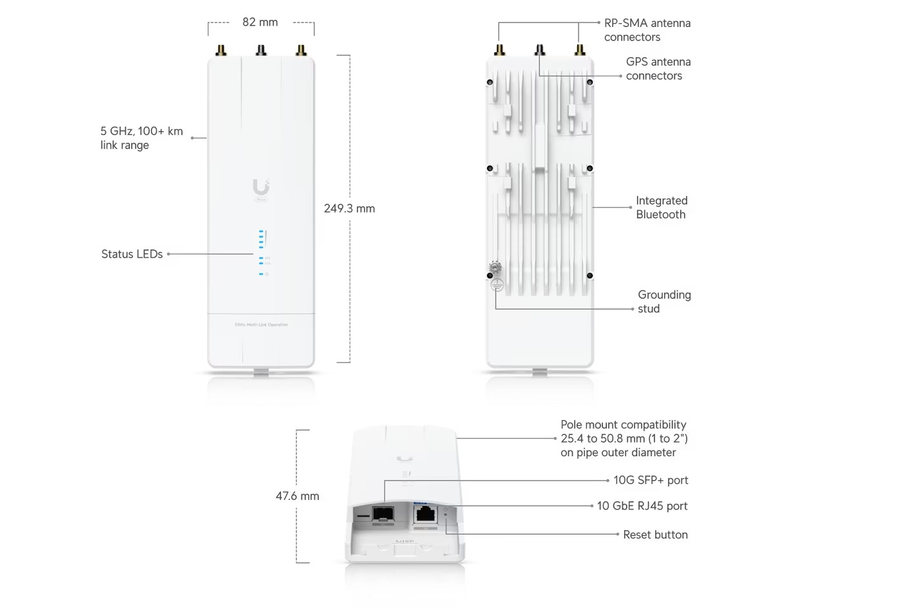

| Dimensions | 249.3 x 82 x 47.6 mm(9.8 x 3.2 x 1.9") |
|---|---|
| Weight | 575 g (1.3 lb) |
| Enclosure Material | Aluminum alloy, UV-resistant polycarbonate |
| Mount Material | Strap: stainless steelUniversal bracket: UV-resistant polycarbonate |
| Mounting | Pole Mount |
| Pole Mount Diameter | 1-2" (25.4-50.8 mm) |
| Weatherproofing | IPX6 |
| Processor | Quad-core IPQ5322 at 1.5 GHz |
| Memory | DDR4 1 GB |

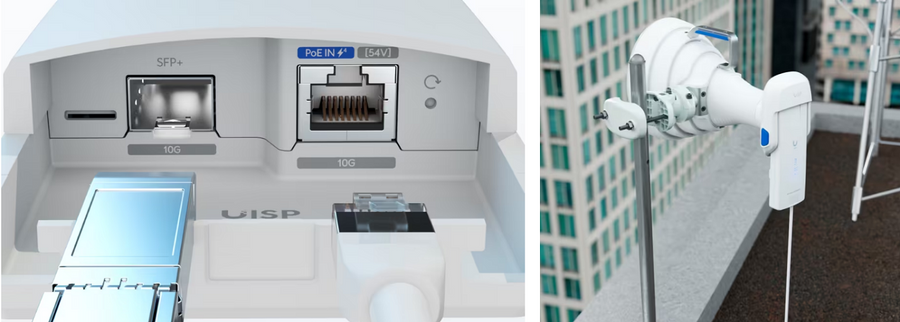

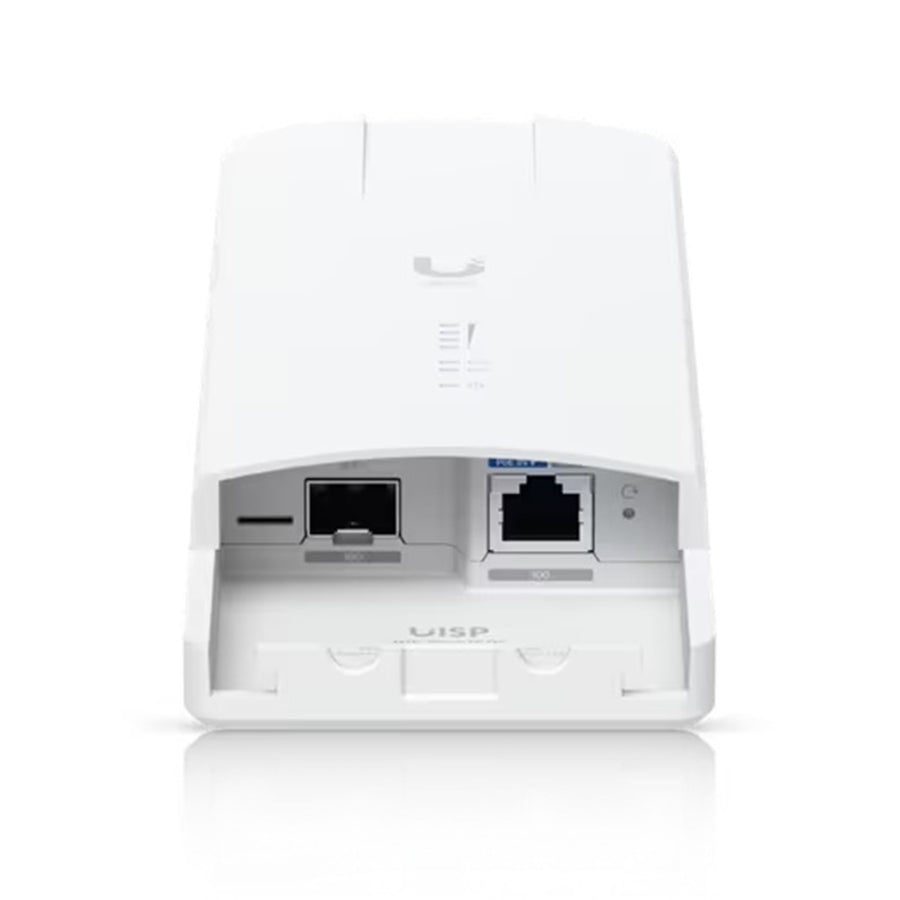

| Networking Interface | (1) 10 GbE RJ45 port(1) 10G SFP+ port |
| Max. Power Consumption | 20W |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)Passive PoE 2-pairs (4, 5+; 7, 8-), for 44-54V DC only |
| Supported Voltage Range | 44-54V DC22-27V DC |
| Power Supply | 54V DC, 0.56A, 10 GbE PoE adapter (Included) |
| MIMO | 5 GHz(2) 2 x 2 |
| Max. TX Power | 5 GHz24 dBm |
| GPS | Yes |

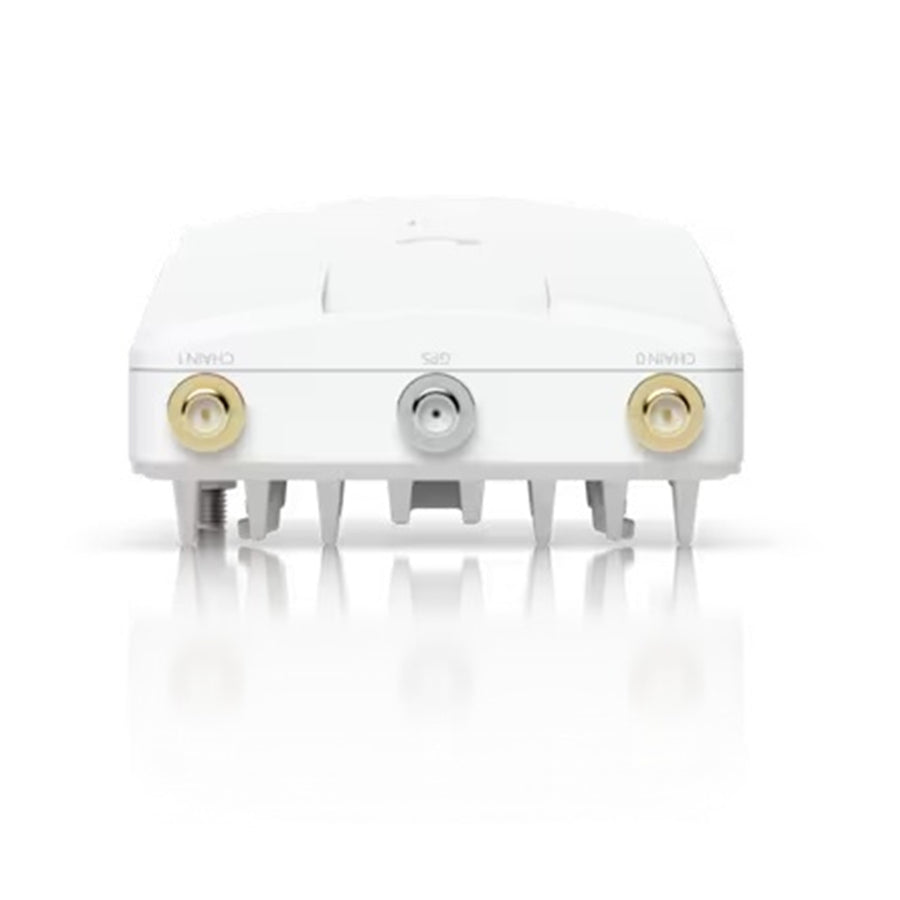

| RF Connections | (2) RP-SMA (Waterproof)(1) GPS (Waterproof) |
| Buttons | (1) Factory reset |
| LEDs | Power(1) BlueEthernet(1) BlueGPS(1) BlueSignal Strength(4) Blue |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE |
| Operating Modes | PtP |
| Services | UISP YesPing Watchdog YesNTP Client Yes |
| Utilities | Antenna Alignment YesPing YesSite Survey YesSpeed Test YesTraceroute YesDiscovery Utility Yes |
| Network | Bridge Mode |
| Total Throughput | 5+ Gbps |
| Max. Range | 100 km (62.1 mi) |
| Encryption | WPA3-PSK (AES) |
| Operating Frequency | Worldwide5180 - 5320 MHz5500 - 5700 MHz5745 - 5825 MHz |
| Channel Bandwidth | Radio 1: 20, 40, 80, 160 MHzRadio 2: 20, 40, 80, 160, 240 MHz |
| Modulation | BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (⅔), 64QAM (¾), 64QAM (⅚), 256QAM (¾), 256QAM (⅚), 1024QAM (¾), 1024QAM (⅚), 4096QAM (¾), 4096QAM (⅚) |
