WS201-915M - Milesight LoRaWAN AS923/AU915 WS201 Smart Fill Level Monitoring IoT Sensor
WS201-915M - Milesight LoRaWAN AS923/AU915 WS201 Smart Fill Level Monitoring IoT Sensor
Features

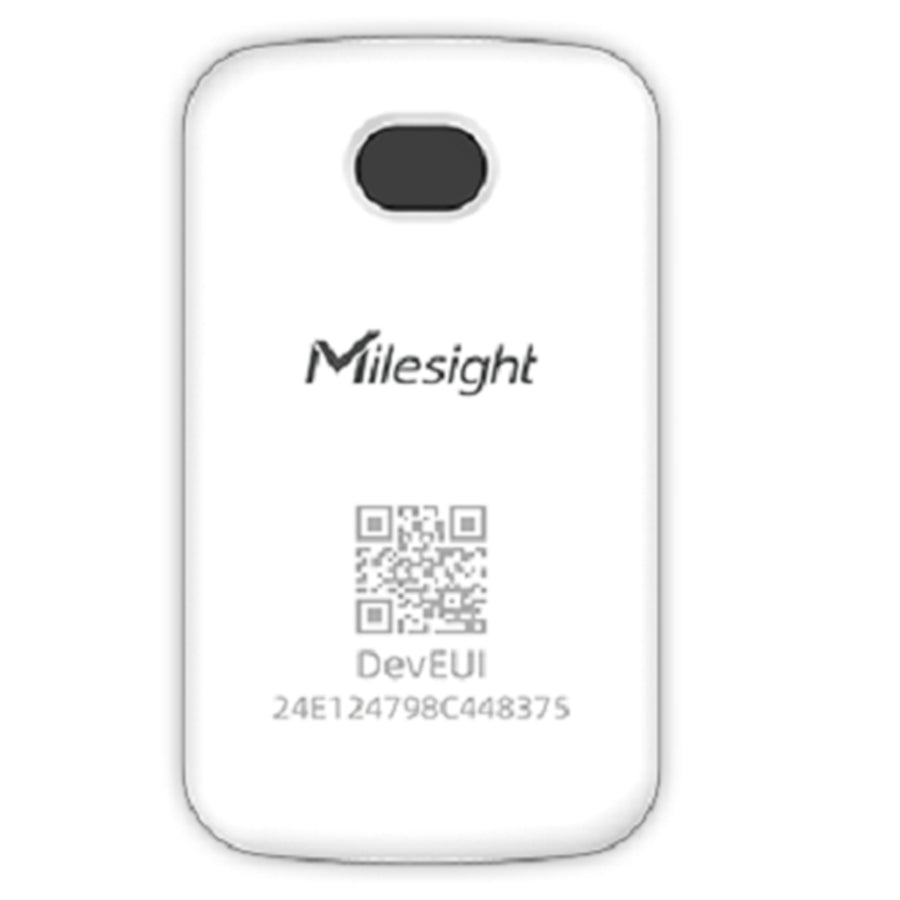

Milesight LoRaWAN AS923/AU915 WS201 Smart Fill Level Monitoring IoT Sensor. WS201 is a wireless sensor that utilizes ToF technology to monitor the fill level of containers with high accuracy. Working with Milesight LoRaWAN® gateway and Milesight IoT Cloud, WS201 allows users to remotely monitor and manage container fill levels and status in real-time.
WS201 utilizes advanced ToF (Time of Flight) technology for precise distance measurement, ensuring accurate detection of toilet paper fill levels. Additionally, it has a minimal blind zone of only 1 cm. Optimize alerts and notifications for paper supply by implementing customizable threshold levels for greater flexibility.
Perfect for smart buildings, smart city deployments or industrial use-cases.
- Suitable for Diverse Toilet Paper Dispenser
- Accurate Fill Level Monitoring with ToF Technology
- Up to 2 Years Battery Life with One Coin Cell Battery
- Wireless Deployment and Easy Maintenance
- Ultra-thin body design
- DevEUI QR code on the front for quick scanning
- Buckle-open lid design for easy maintenance
- Shelf Stock Level Monitoring
- Paper Towel Level Monitoring
Specifications
Technical Specifications
| Manufacturer's Code | WS201-915M |
|---|---|
| Protocol | LoRaWAN |
| Frequency | AU915/AS923 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -132dBm @ 300bps |
| Mode | OTAA/ABP Class A |
| ToF FoV | 25 ° |
| FoV Accuracy | ± 5 ° |
| Detection Range | 1 ~ 55 cm |
| Detection Accuracy | ± 1cm |
| Detection Resolution | 1mm (1.0 - 5.0cm), 2mm (15.0 - 35.0cm), 3mm (35.0 - 55.0cm), X = Detection Distance |
| Button | 1 × Reset Button (Internal) |
| LED Indicator | 1 × Indicator (Internal) |
| Configuration | Mobile App (via NFC) |
| Power Supply | 1 × 590mAh CR2450 Lithium Battery |
| Battery Life | up to 2 Years |
| Operating Temperature | -10°C ~ +60°C |
| Relative Humidity | ~ 95% (Non-condensing) |
| Color & Material | White, ABS + PC (Flame Retardant) |
| Ingress Protection | IP30 |
| Dimension | 66 × 38 × 12 mm (2.60 × 1.50 × 0.47 in) |
| Installation | On the flat surfaces with 3M tapes |
