CERWIN VEGA

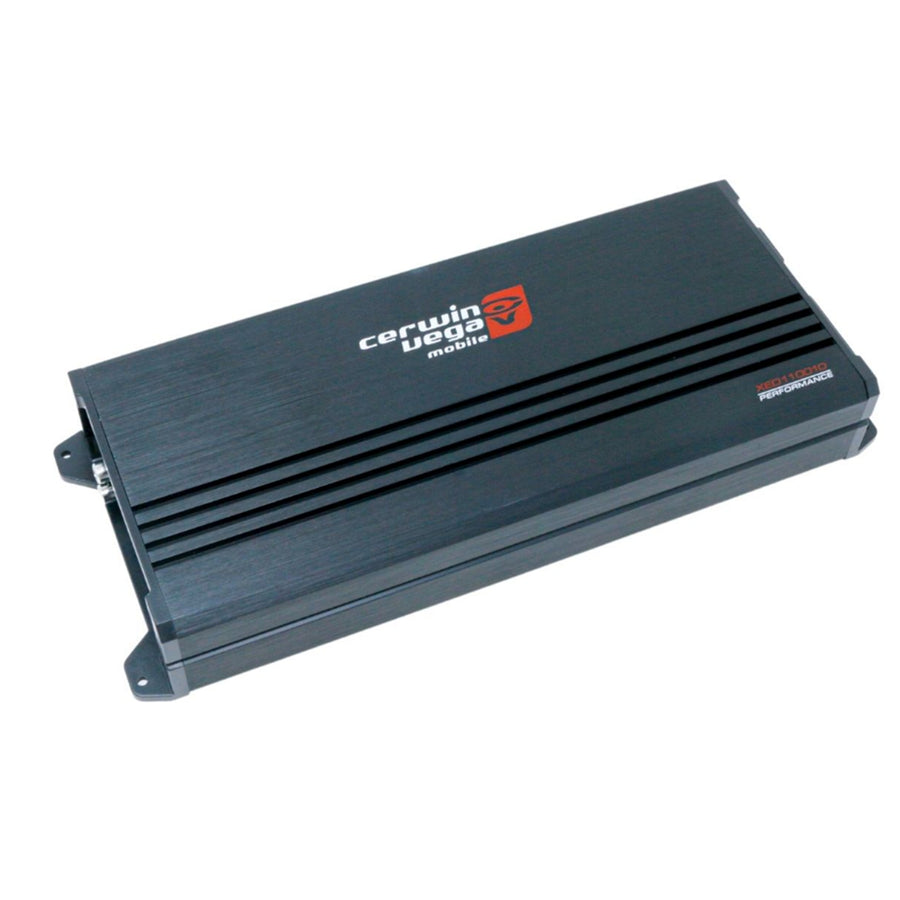

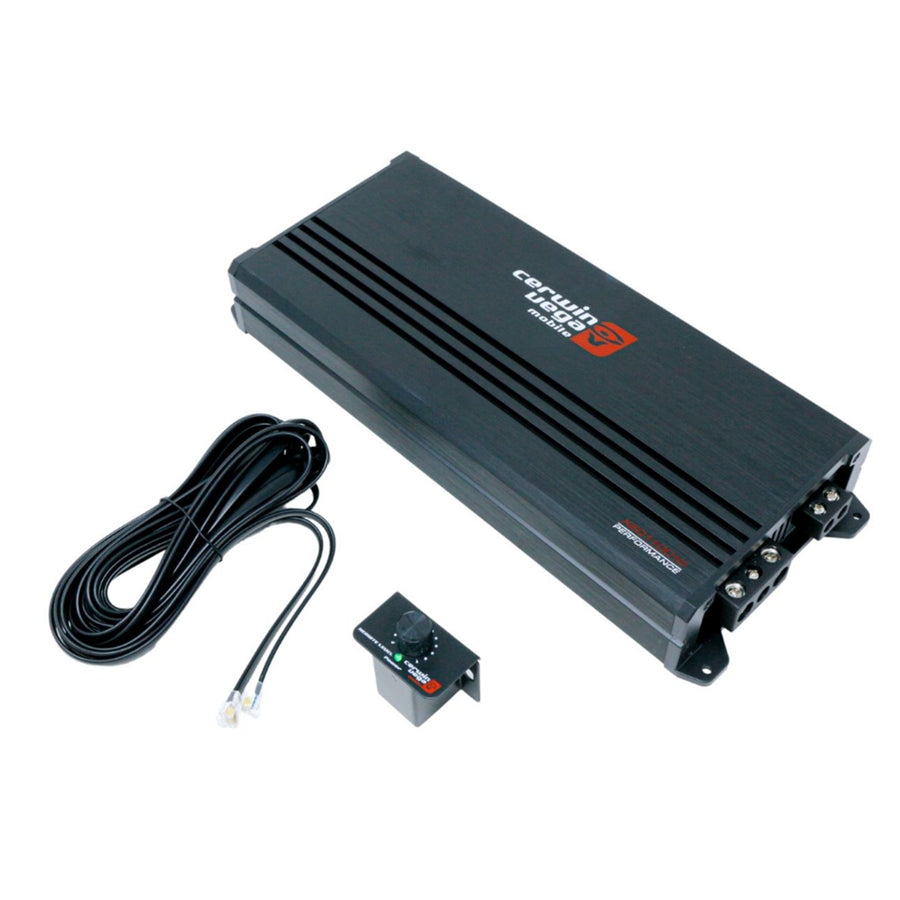

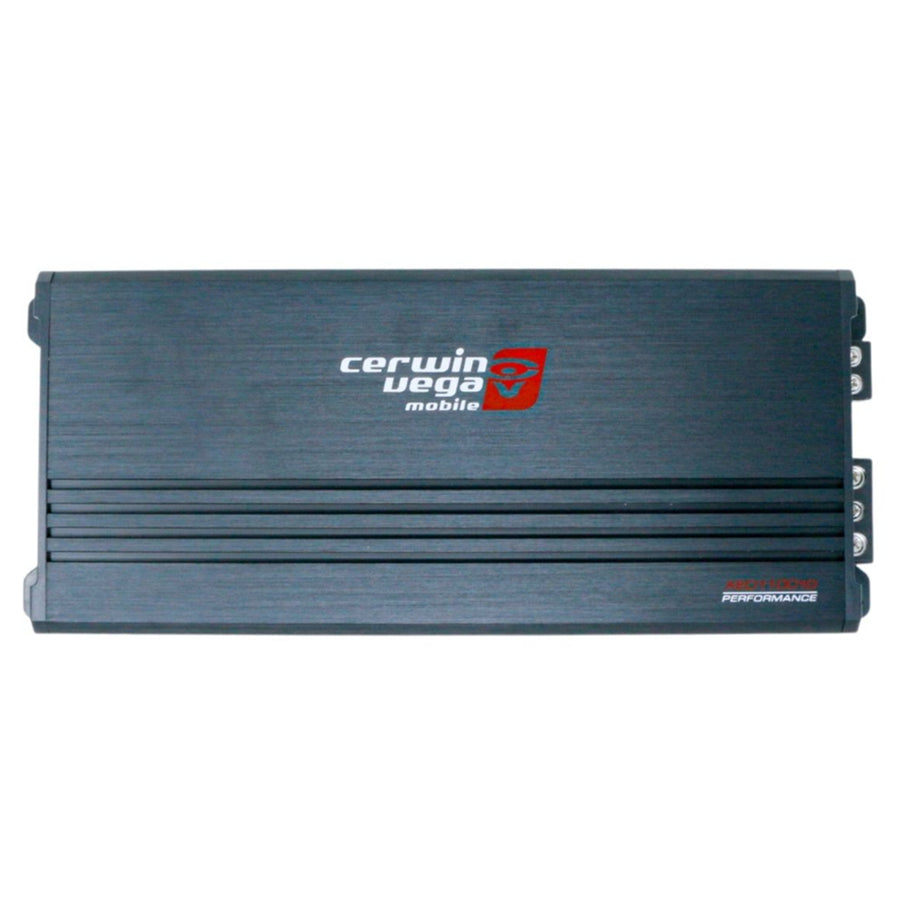

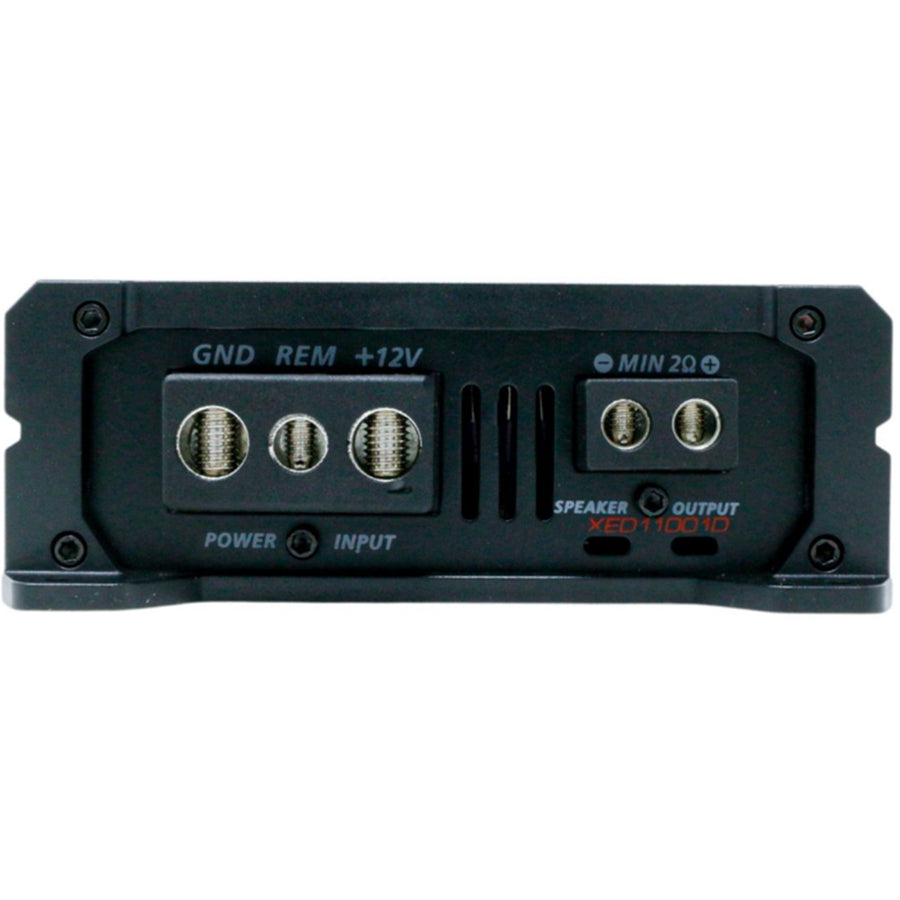

XED11001D - CERWIN VEGA AMPLIFIER XED SERIES MONO 650W RMS @ 4OHM / 1100W RMS @ 2OHM
$370.80
Free shipping over $299
Genuine product
7-day returns

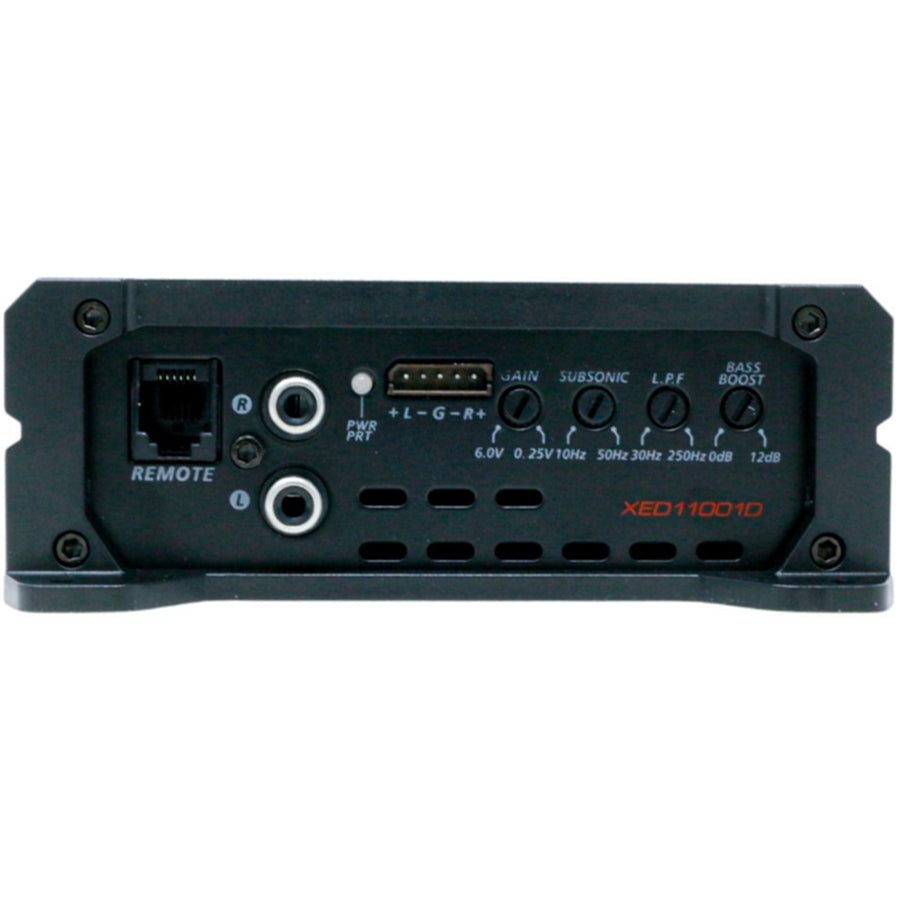

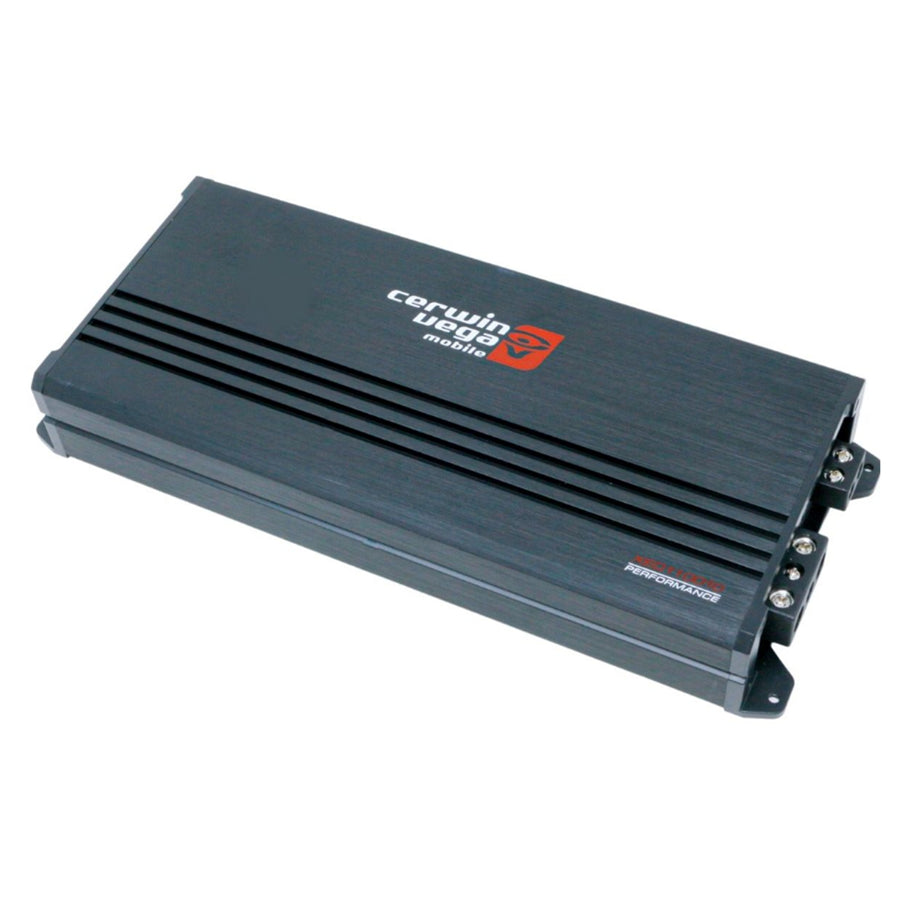

XED11001D - CERWIN VEGA AMPLIFIER XED SERIES MONO 650W RMS @ 4OHM / 1100W RMS @ 2OHM
Features
Latest High-Efficiency Class D Topology. Compact Size with Ambient backlit logo. RCA "Pass Thru" output for easy system expansion. Fully Variable Crossovers (12dB per octave). Handles HI and LO level input to 12V. 2 O Stable Stereo and 4O Mono (CH3/4) for 3 Ch mode. Proprietary Vega Bass Boost EQ Up To 12dB.
- 1100W MAX Power
- 1 Channel Amplifier
- 1100W x 1 @ 2O RMS
- 650W X 1 @ 4O RMS
- Crossover: 35Hz~250Hz (LP)
- Frequency Response: 10Hz~30KHz
- Dimensions: 10.3" x 4.7" x 1.8" ( 261.62mm x 119.38mm x 45.72mm)
Specifications
Technical Specifications
| Amplifier | 1 Channel |
|---|---|
| Description | 1100W RMS High Efficiency Class-D Mono Amplifier |
| MAX Power Rating | 1300 W MAX |
| RMS Power(2O) | 1 x 1100W |
| RMS Power (4O) | 1 x 650W |
| Types | Monoblock |
| Topology | Class D |
| Frequency Response | 10Hz~30KHz |
| Power Supply | Full PWM |
| Power Supply (Threshold) | 10.0VDC - 16.0VDC |
| Idle Current | (0.7A) |
| Distortion - THD (1KHz @4O) | <0.1% |
| Distortion - S/N Ratio (A weight @ 1W) | -85dBA |
| Distortion - S/N Ratio (A weight @ FP) | -101.1dBA |
| Input Sensitivity Low | 250mV - 6.0V |
| Input Sensitivity High | 1.1V ~> 20.0V |
| Input Impedance - Low Input Level | 20 KO |
| Input Impedance - High Input Level | 100 O |
| Output Impedance | 2O/4O |
| Damping Factor (50Hz @4O) | >70 |
| Bandwidth (-3dB) | 10Hz-250Hz |
| Crossover (-12 dB/ Oct) Variable High-Pass | N/A |
| Crossover (-12 dB/ Oct) Variable Low-Pass | 35Hz-250Hz |
| Crossover (-12 dB/ Oct) Variable Sub-Sonic | 10Hz-50Hz |
| FUSE Ratings - ATC | 3 x 35A |

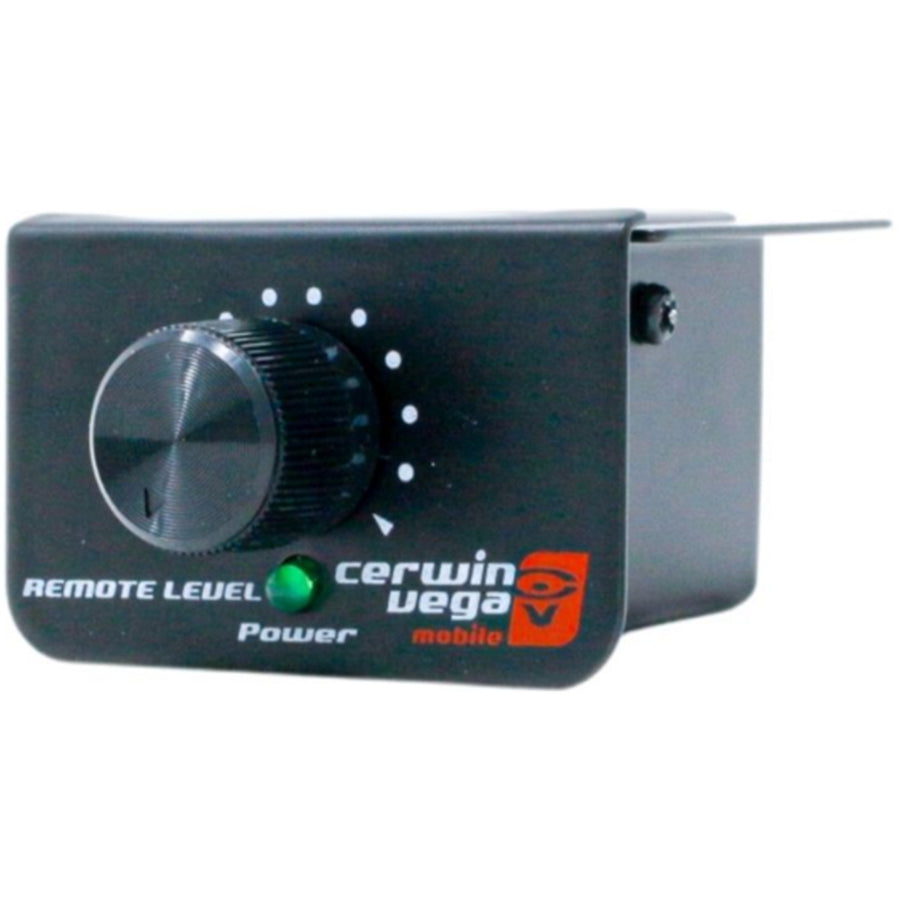

| Remote | Bass Volume Control |
| Dimension - Length x Width x Height - Inches(mm) | 11" x 4.7" x 1.8" (280 x 120 x 46.5mm) |
