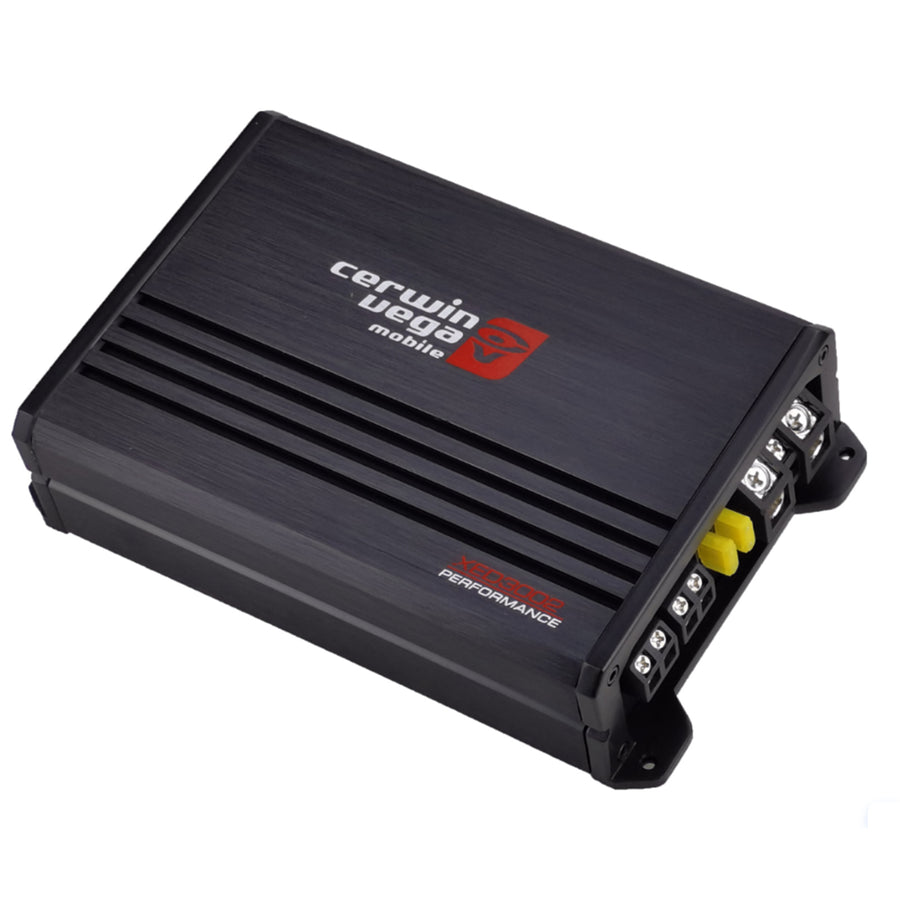

XED3002D - CERWIN VEGA AMPLIFIER XED SERIES 2 CH 80W RMS x 2 @ 4OHM / 120W RMS X 2 @ 2OHM
XED3002D - CERWIN VEGA AMPLIFIER XED SERIES 2 CH 80W RMS x 2 @ 4OHM / 120W RMS X 2 @ 2OHM
Features
XED (Xtreme Energy Design) series amplifiers are legitimately just that, extreme to the core! XED series amplifiers deliver insane power output and is clearly designed and engineered to crush the watts per dollar criteria! Utilizing the latest high efficiency Class D topology circuit design encompassed in a compact aluminum chassis, XED series amplifiers will wake up any speaker or subwoofer by delivering pure power and performance for loud continuous play.
- 300W MAX Power
- 2 Channel Amplifier
- 120W x 2 @ 2O RMS
- 80W X 2 @ 4O RMS
- 220W x 1 Bridged
- Crossover: 35Hz~250Hz (LP/HP)
- Frequency Response: 10Hz~30KHz
- Dimensions: 6.3"x 4.7" x 1.8" ( 160.02mm x 119.38mm x 45.72mm )
Specifications
Technical Specifications
| Amplifier | 2 Channel |
|---|---|
| Description | XED Series 250W RMS 2 Channel Amplifier |
| Amplifier Power | 250w MAX |
| RMS Power(2O) | 2 x 120W |
| RMS Power (4O) | 2 x 80W |
| RMS Bridge (mono 4O) | 1 x 220W |
| Types | 2-Channel |
| Topology | Class D |
| Frequency Response | 10Hz~30KHz |
| Power Supply | Full PWM |
| Power Supply (Threshold) | 10.0VDC - 16.0VDC |
| Idle Current | (0.5A) |
| Distortion - THD (1KHz@4O) | <0.1% |
| Distortion - S/N Ratio (A weight @ 1W) | -85dBA |
| Distortion - S/N Ratio (A weight @ FP) | -101.1dBA |
| Input Sensitivity Low | 250mV - 6.0V |
| Input Sensitivity High | 1.3V ~>20.0V |
| Input Impedance - Low Input Level | 20 KO |
| Input Impedance - High Input Level | 100 O |
| Output Impedance | 2O/4O |
| Damping Factor (50Hz@4O) | >70 |
| Bandwidth (-3dB) | 10Hz-30KHz |
| Crossover (-12 dB/ Oct) Variable High-Pass | 35Hz-250Hz |
| Crossover (-12 dB/ Oct) Variable Low-Pass | 35Hz-250Hz |
| Crossover (-12 dB/ Oct) Variable Sub-Sonic | N/A |
| FUSE Ratings - ATC | 20A |
| Dimension - Length x Width x Height - Inches(mm) | 6.3"x 4.7" x 1.8" (160 x 120 x 46.5mm) |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | CERWIN VEGA |
|---|---|
| Product Type | B2C - Mobile & Wearables |
| Weight | 0.5 kg |
