CERWIN VEGA

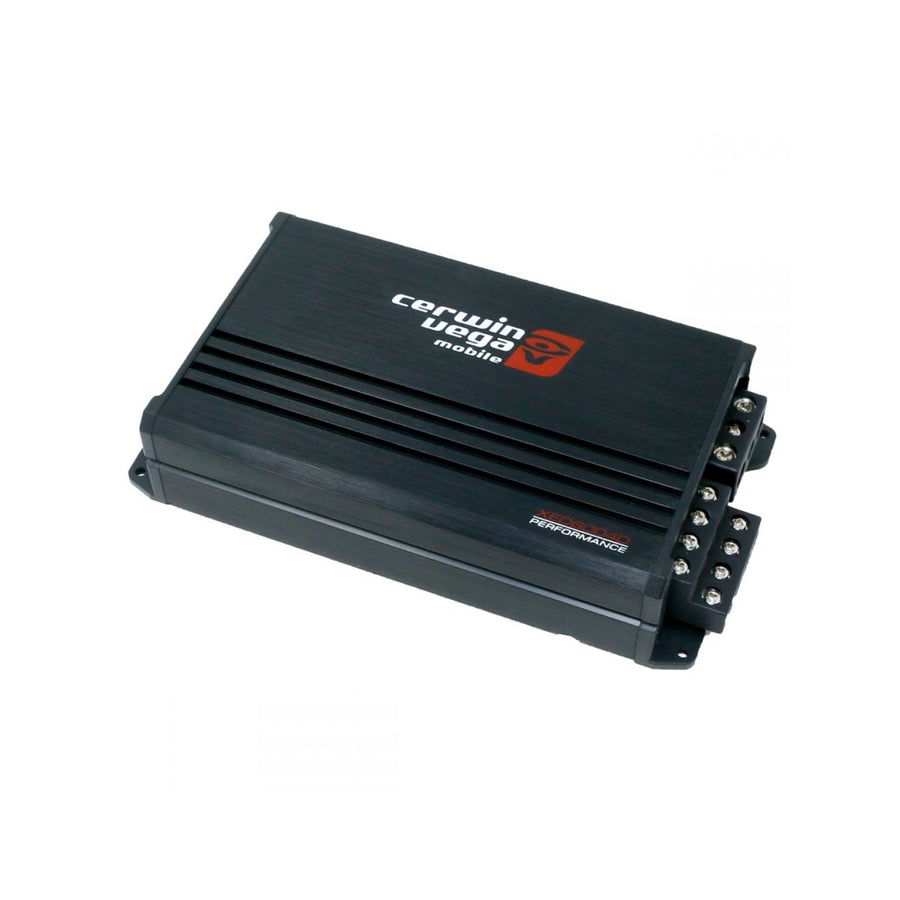

XED6004D - CERWIN VEGA AMPLIFIER XED SERIES 4 CH 80W RMS X 4 @ 4OHM / 120W RMS X 4 @ 2OHM
$319.39
Free shipping over $299
Genuine product
7-day returns
XED6004D - CERWIN VEGA AMPLIFIER XED SERIES 4 CH 80W RMS X 4 @ 4OHM / 120W RMS X 4 @ 2OHM
Features
Latest High-Efficiency Class D Topology
Compact Size with Ambient backlit logo
RCA "Pass Thru" output for easy system expansion
Fully Variable Crossovers (12dB per octave)
Handles HI and LO level input to 12V
2 O Stable Stereo and 4O Mono (CH3/4) for 3 Ch mode
Proprietary Vega Bass Boost EQ Up To 12dB
Compact Size with Ambient backlit logo
RCA "Pass Thru" output for easy system expansion
Fully Variable Crossovers (12dB per octave)
Handles HI and LO level input to 12V
2 O Stable Stereo and 4O Mono (CH3/4) for 3 Ch mode
Proprietary Vega Bass Boost EQ Up To 12dB
Specifications
Technical Specifications
| MAX Power Rating | 500 W MAX |
|---|---|
| RMS Power(2O) | 4 x 120W |
| RMS Power (4O) | 4 x 80W |
| Types | Class D |
| Power Supply | Full PWM |
| Power Supply (Threshold) | 10.0DVC - 16.0DVC |
| Idle Current | (0.7A) |
| Distortion - THD (1KHz @ 4O) | <0.1% |
| Distortion - S/N Ratio (A weight @ 1W) | -85dBA |
| Distortion - S/N Ratio (A weight @ FP) | -101.1dBA |
| Input Sensitivity - Hi/Low Input Level 1.3V | ~>20.0V / 250mV - 6.0V |
| Input Impedance- High Input Level | 100 KO |
| Input Impedance - Low Input Level | 10 KO |
| Output Impedance | 2 O |
| Damping Factor (50Hz @ 4O) | >70 |
| Bandwidth (-3dB) | 10Hz-30KHz |
| Crossover (-12 dB/ Oct) Variable High-Pass | 35Hz-250Hz |
| Crossover (-12 dB/ Oct) Variable Low-Pass | 35Hz-250Hz |
| Crossover (-12 dB/ Oct) Variable Sub-Sonic | N/A |
| FUSE Ratings - ATC | 2 x 25A |
| Dimension - Length x Width x Height - Inches(mm) | 7.1 x 4.7 x 1.8 (180 x 120 x 46.5) |
