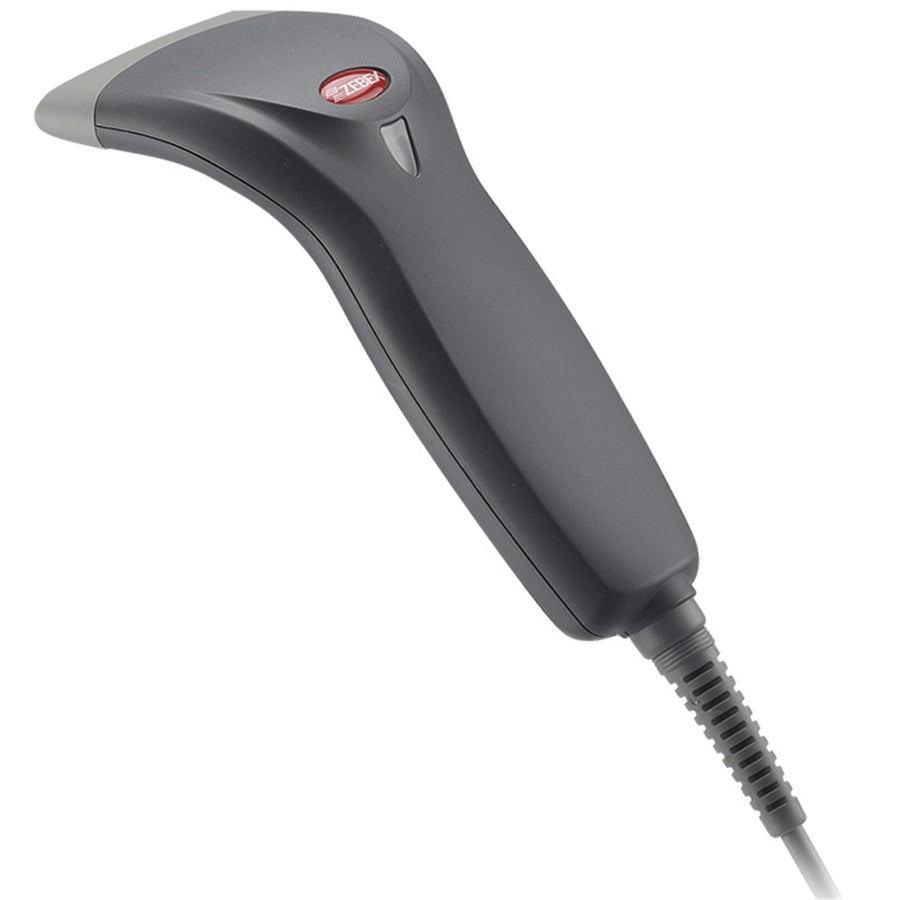

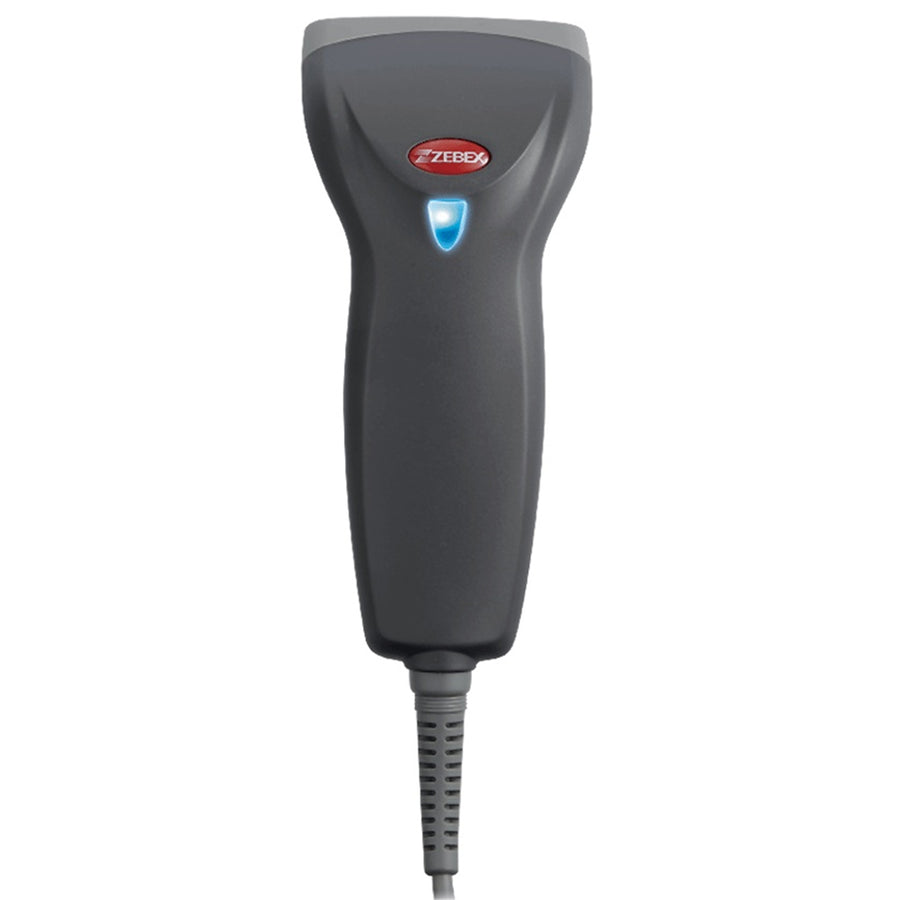

Z-3220-PLUS - Zebex Z-3220 Plus Linear Image Barcode Scanner USB Black
Z-3220-PLUS - Zebex Z-3220 Plus Linear Image Barcode Scanner USB Black
Features
Zebex Z-3220 Plus Linear Image Barcode Scanner USB - Black
The sleek new Z-3220 Plus delivers outstanding scanning performance at a competitive price.
Specially designed for first time users, the scanner is ergonomically shaped and employs a field replaceable cable allowing for fast and easy disconnection from the host. With its newly improved decoding capability, the scanner provides an exceptional first-read-rate, making it ideal for retail applications.
- Proprietary Ultrascan decoding technology
- Light and rugged design
- Advanced image capture technology
- Multi-interface communication
- Ideal for beginners
- Captures barcodes on mobile phone, tablet, or computer screens
Specifications
Technical Specifications
| Light Source | 625 nm visible LED |
|---|---|
| Optical System | Linear CCD array |
| Microprocessor | 32-bit |
| Depth of Field | Min. bar width: 3 mil4 mil: 0 - 45 mm5 mil: 0 - 70 mm7.5 mil: 0 - 80 mm10 mil: 0 - 90 mm13 mil: 0 - 100 mm20 mil: 0 - 120 mmNote: DOF may vary depending on environment condition and barcode quality. |
| Scan Rate | 250 scans per second |
| Print Contrast | 30% @ UPC/EAN 100% |
| Indicator | Two colors LED, beep |
| Beeper Operation | Programmable tone & beep time |
| System Interface | RS-232, HID USB, USB Virtual COM, OPOS, JPOS |
| Dimensions H x W x L | 161.5 × 72.5 × 55.2 mm (device only) |
| Weight (g) | 91 g (device only) |
| Cable | Standard 2M straight |
| Input Voltage | 5 VDC ±10% |
| Operating Current | 60 mA @ 5V ( Typical ) |
| Standby Current | 55 mA typical |
| EMC | CE & FCC DOC compliant, VCCI, BSMI, UKCA |
| Operating Temperature | 0 °C to +50 °C (32°F - 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F - 140°F) |
| Humidity | 5% - 95% RH (non-condensing) |
| Light Level | Max. 6,000 Lux (fluorescence) |
| Drop Durability | Designed to withstand 1.5M drops |
| 1D Barcode | UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen |
