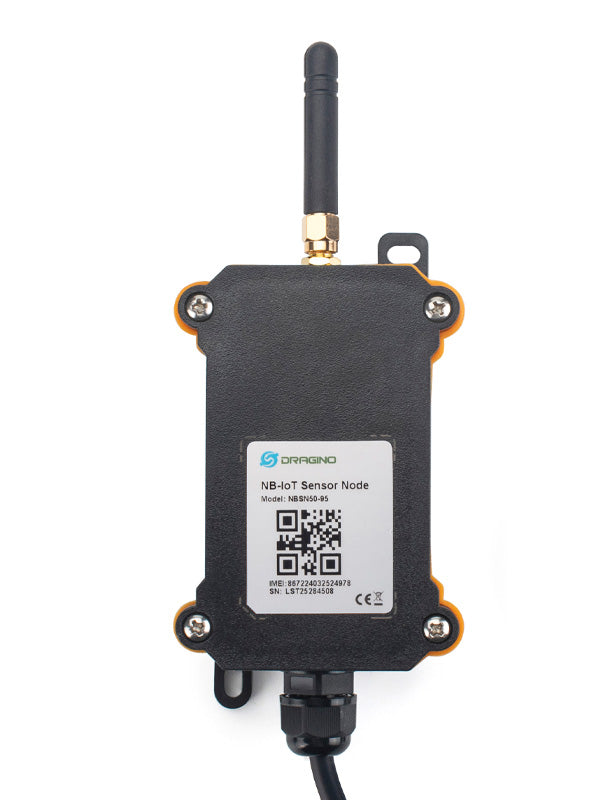

Dragino NBSN95 Waterproof Long Range Wireless NB-IoT Sensor Node

Description

The Dragino NBSN95 is a Long Range NB-IoT Sensor Node. It is designed for outdoor data logging and powered by an 8500mAh Li/SOCl2 battery for long term use and secure data transmission. System Integrators can use NBSN95 to rapidly deploy NB-IoT sensor nodes for their IoT solutions. The NBSN95 is easy to program, to create and connect things everywhere.

Narrow Band-Internet of Things (NB-IoT) is a standards-based low power wide area (LPWA) technology developed to enable a wide range of new IoT devices and services. NB-IoT significantly improves the power consumption of user devices, system capacity and spectrum efficiency, especially in deep coverage

Need help selecting the right IoT solution?

Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.

Consult with Scopious IoT today!
Features
  • STM32L072xxxx MCU
  • NB-IoT Bands: B1/B3/B8/B5/B20/B28 @H-FDD
  • Pre-load bootloader on USART1/USART2
  • MDK-ARM Version 5.24a IDE
  • I2C, LPUSART1, USB, SPI2
  • 3x12bit ADC, 1x12bit DAC
  • 20xDigital I/O
  • Open-source hardware / software
  • IP66 Waterproof Enclosure
  • Ultra-Low Power consumption
  • AT Commands to change parameters
  • Micro SIM card slot for NB-IoT SIM
  • 8500mAh Battery for long term use

Specifications

Details
Product Code NBSN95
Module Quectel BC95-G
Protocol CoAP, UDP, MQTT
Support Bands B1 @H-FDD: 2100MHz, B3 @H-FDD: 1800MHz, B8 @H-FDD: 900MHz, B5 @H-FDD: 850MHz, B20 @H-FDD: 800MHz, B28 @H-FDD: 700MHz
MCU Spec STM32L072CZT6, Flash:192KB, SRAM:20KB, EEPROM:6KB, Clock Speed: 32Mhz
Supply Voltage 1.8v ~ 3.6v
Operating Tempature -40 ~ 85°C
I/O pins Refer STM32L072CZT6 datasheet
Power Consumption STOP Mode: 10 μA @ 3.3v, See Power Analyze Document for more.
Battery Li/SOCI2 unchargable battery, Capacity: 8500mAh, Self Discharge: <1% / Year @ 25°C, Max continuously current: 500mA, Max boost current: 2A, 1 second
Device Size 14.5 x 8 x 5 cm
Device Weight 180 g
