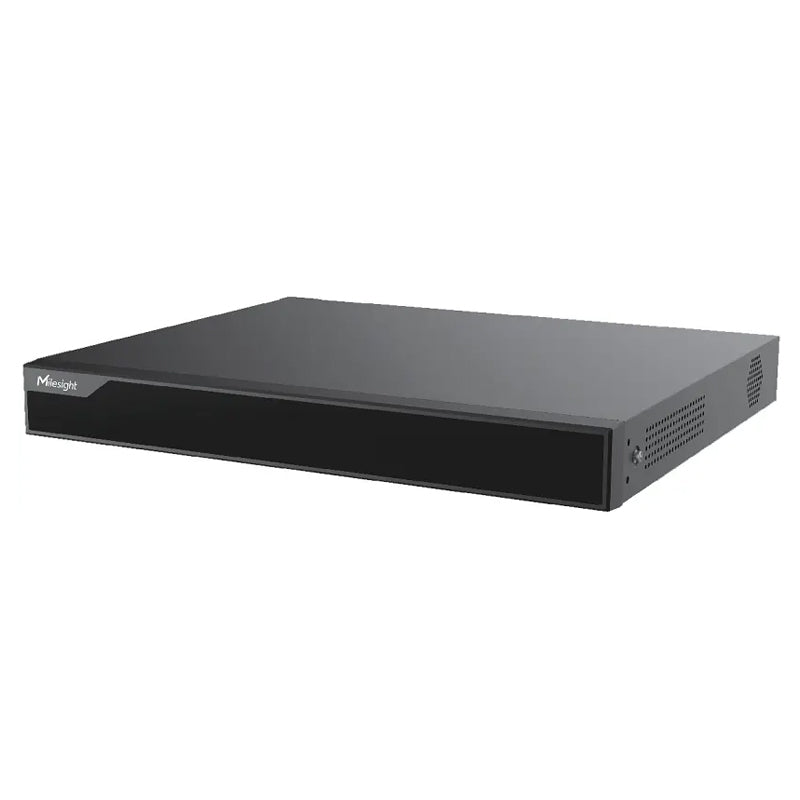

Milesight Open Vision Server Mini - All-in-one Intelligent Monitoring Workstation 16 Channel
Milesight

Milesight Open Vision Server Mini - All-in-one Intelligent Monitoring Workstation 16 Channel

SKU: SE0201-KNx ● Out of Stock
$2,024.32
Free shipping over $299 Genuine product 30-day returns

SE0201-KNx

Milesight Open Vision Server Mini - All-in-one Intelligent Monitoring Workstation 16 Channel

Description

Milesight Openvision Server is a pre-configured, plug-and-play surveillance platform that comes with Nx VMS Server embedded. Designed for fast and hassle-free deployment, it combines powerful hardware and intelligent video management software in one compact system.
Features
  • Ubuntu 22.04.4 LTS Desktop on M.2 SSD
  • Nx Witness Server Preinstalled
  • 2 SATA Disks Support
  • Calendar / Event / Bookmark / Smart Search
  • Dual Stream Recording, N+MFailover Support
  • Server Clustering Support
  • HDMI, DP Display Port Support

Specifications

Details
Product Code SE0201-K/Nx
Main Processor Intel Celeron Series, 4C 4T @2.00 GHz
Memory 2*4GB DDR4
Firmware Storage 32GB eMMC
Operating System Linux Ubuntu 22.04.5 LTS DesktopGPU Options
Auto Power On Support
Video Compression H.265, H.264, MJPEG
Recording Bandwidth Max. 144Mbps
Resolution 12MP ~ CIF
Mode Continuous, Motion, Events, Objects, Dual Stream
Edge Analytics Analytics Events:CCTV (Intrusion Detection/ Region Entrance/ Region Exit/ Advanced Motion Detection/ Line Crossing/ Loitering/ Object Left/Object Removed/ Object Counting/ Regional People Counting);LPR (Attribute Event/ Black List/ White List/ Visitor Event/ Speed Monitoring/ No Plates/ Reverse Driving);Object Detected Events (person and vehicle with attribute/ face)Smart Search:CCTV: Person (Hat, Top Clothing Color, Bottom Clothing Color),Vehicle (Vehicle Type), Face (Gender, Age, Mask, Cap, Glasses);LPR: Vehicle (Color, Vehicle Type, Brand, Speed, Direction),License Plate (Number, Color, Country, Plate Type)
Event Action Bookmark, Camera Output, Camera Recording, Do HTTP(S) Request, Execute PTZ Preset, Play Sound, etc.
Supported HDD Up to 20TB per disk
HDD Slot SATA*2
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, SNMP(Client), HTTPS, ONVIF
Compression G.711/AAC/G.722/G.726
Audio Communication 2-way
Ethernet 2*1000Mbps Ethernet Port
Display 2*HDMI Port, 1*DP Port Note: Display ports are for system setup and diagnostics only. They do not support video playback or desktop display.
Audio 1*BNC In, 1*BNC Out
USB Interface Rear panel: 2*USB 2.0, 2*USB 3.0, 1*USB-C Port
Power Supply AC 100-240V, 50-60Hz, DC 12V
Consumption ≤30W (without HDD)
Working Temperature 0°C to 35°C (32°F to 95°F)
Working Humidity 10% to 90% RH (no freezing and no condensation)
Dimension 380mm(W) X 317.6mm(D) X 51.8mm(H)
Weight 2.2 Kg
Warranty 3 Years
