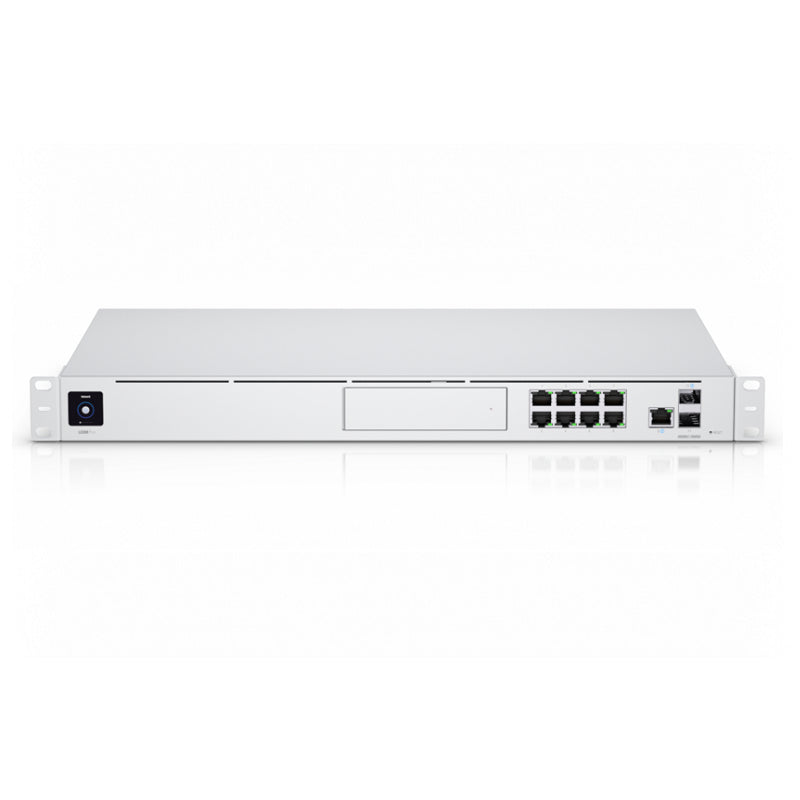

Ubiquiti UniFi Dream Machine Pro
High-Performance Ubiquiti UniFi Dream Machine Pro (UDM-Pro)
Upgrade your enterprise network with the Ubiquiti UniFi Dream Machine Pro (UDM-Pro), an all-in-one 1U rackmount 10Gbps UniFi Multi-Application System. Engineered for maximum performance and security, the UDM-Pro seamlessly integrates an advanced security gateway, 10G SFP+ WAN, an 8-port Gigabit switch, and a UniFi Protect NVR with off-the-shelf 3.5" HDD support. Ideal for small to medium-sized businesses looking for enterprise-class IPS/IDS, DPI, and Wi-Fi AI capabilities in a single unified cloud gateway.
Ubiquiti UDM-Pro 1U Rackmount 10Gbps UniFi Multi-Application System with 3.5" HDD Expansion and 8 Port Switch. UniFi Dream Machine Pro (UDM-Pro) is an all-in-one enterprise network appliance. UDM-Pro integrates all current and upcoming UniFi controllers with a security gateway, 10G SFP+ WAN, 8-port Gbps switch and off-the-shelf 3.5" HDD support.
The UDM-Pro enterprise-class security gateway combines routing, 10 Gbps SFP+ WAN, application visibility, VPN services, and 3.5 Gbps full threat management throughput into a single device.
The UDM-Pro features dual WAN ports with failover and U-LTE1 backup connectivity to ensure reliable access to the internet. UniFi SmartPower USP-RPS2 provides redundant power in the event of AC power loss.
Features
Technical Specifications
| Details | |
|---|---|
| Manufacturer's Code | UDM-Pro-AU |
| Dimensions | 442.4 x 43.7 x 285.6 mm |
| Weight | 3.90 kg or 3.99 kg With Brackets |
| Interfaces | Networking; (8) 10/100/1000 RJ45 LAN Ports, (1) 10/100/1000 RJ45 WAN Port, (1) 1/10G SFP+ LAN Port, (1) 1/10G SFP+ WAN Port |
| Management | Ethernet In-Band, (1) Bluetooth BLE |
| IDS/IPS Throughput | 3.5 Gbps |
| Processor | Quad ARM Cortex-A57 Core at 1.7 GHz |
| System Memory | 4 GB DDR4 |
| On-Board Flash Storage | 16 GB eMMC |
| Max Power Consumption | 33W |
| Voltage Range | 100 to 240VAC |
| Power Method | (1) Universal AC Input, 100-240VAC, 50/60 Hz, (1) RPS DC Input |
| Power Supply | Internal 50W/12V |
| LEDs | HDD Activity, RJ45 Link/Speed/Activity, SFP+ Link/Speed/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Operating Temperature | -10 to 40° C (14 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Brand | Ubiquiti |
|---|---|
| Product Type | Networking |
