-2%
Ubiquiti
48-port (16) 2.5 GbE (32) 10 GbE and
$4,370.43$4,471.95
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features

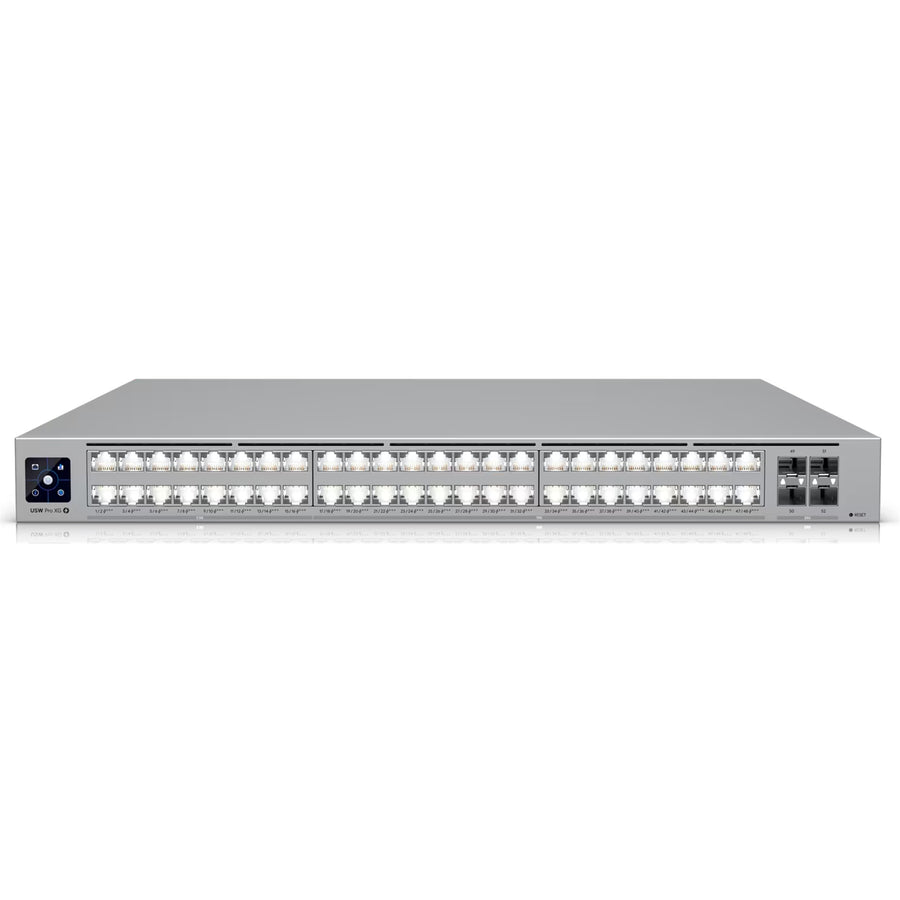

Ubiquiti UniFi Pro XG 48 Professional-grade, 48-port Layer 3 Etherlighting™ switch with (32) 10 GbE, (16) 2.5 GbE, and (4) 25G SFP28 ports
- Etherlighting™ - A Cable Management Dream - Identify native VLANs with a glance. Instantly differentiate ports by speed. Find any device in seconds.
- Ideal for 6 GHz WiFi Access Points - Featuring 2.5 / 5 / 10 GbE ports for enterprise performance.
- Power Redundancy - Keep your UniFi switches online during power failures with seamless backup and automatic failover.
Specifications
Technical Specifications
| Dimensions | 442 x 480 x 44 mm(17.4 x 18.9 x 1.7") |
|---|---|
| Port Layout | 2.5 GbE RJ45: 16 (2.5G/1G/100M/10M)10 GbE RJ45: 32 (10G/5G/2.5G/1G/100M/10M)25G SFP28: 4 (25G/10G/1G) |
| Redundancy | DC Power Backup |
| Layer 3 | Yes |
| Form Factor | Rack mount (1U) |
| Etherlighting™ | Yes |
| Switching Capacity | 920 Gbps |
| Total Non-Blocking Throughput | 460 Gbps |
| Forwarding Rate | 684 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 128,000 |
| L3 Table Size | ARP Entries: 128,000IPv4 Routes: 256,000 |
| Packet Buffer Size | 8 MB |
| Access Lists | IPv4: 256MAC: 256 |
| DHCP Server (Local Networks) | Yes |
| DHCP Relay | Yes |
| Inter-VLAN Routing (Local Networks) | Yes |
| Static Routing (Local Networks) | Yes |
| LACP Port Aggregation | Yes |
| STP & RSTP | Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | Yes |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
| Max. Power Consumption | 250W |
| Power Method | (1) Universal input, 100-240V AC, 50/60 Hz(1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 300W |
| Supported Voltage Range | 100-240V AC |
| Management | EthernetAR |
| Weight | Without mounting brackets: 7.5 kg (16.5 lb)With mounting brackets: 7.6 kg (16.8 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racksPosts depths ranging from 600 to 1,066 mm (23.6-42") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 30kV, contact: ± 14kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| LEDs | RPS |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Application Requirements | UniFi NetworkVersion 9.0.114 and later |
| Brand | Ubiquiti |
|---|---|
| Product Type | Networking > Switches |
| Weight | 5.918 kg |
| Warranty |
|---|
