-1%
EATON

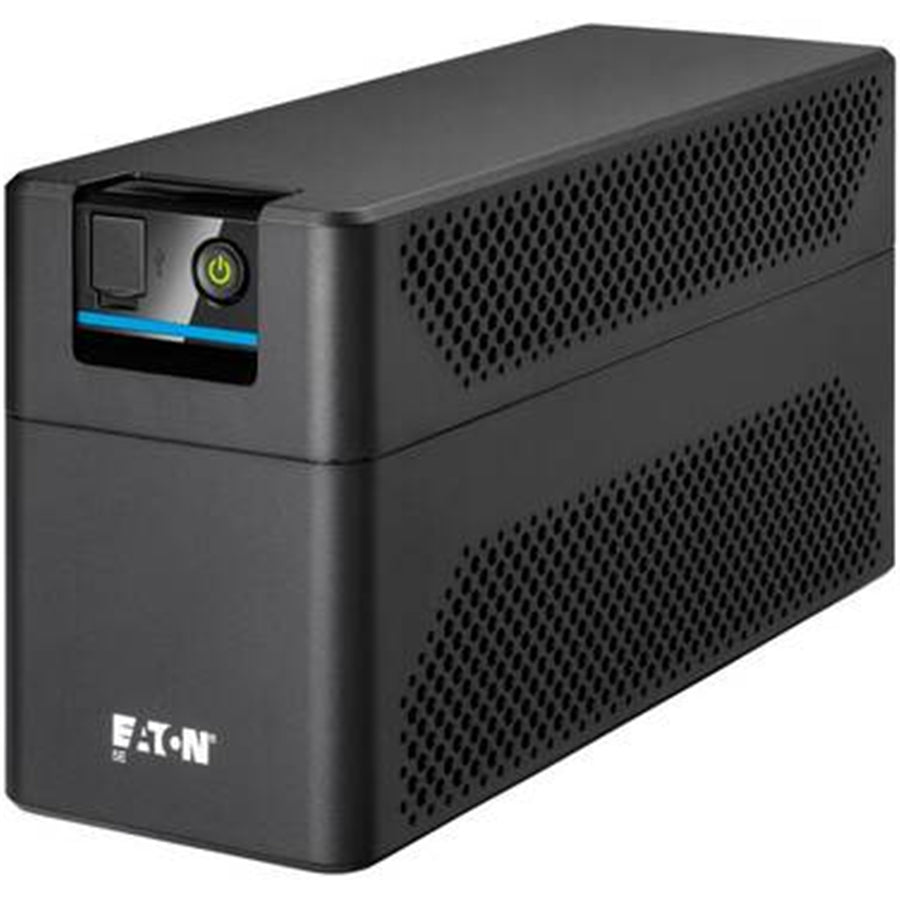

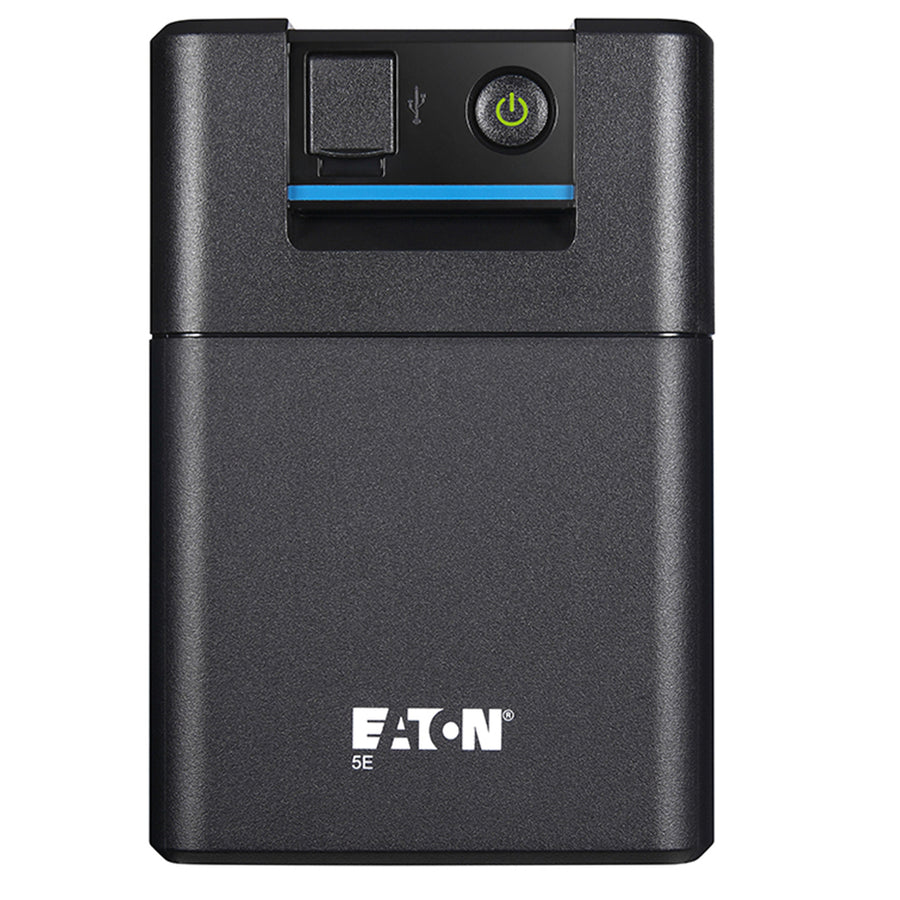

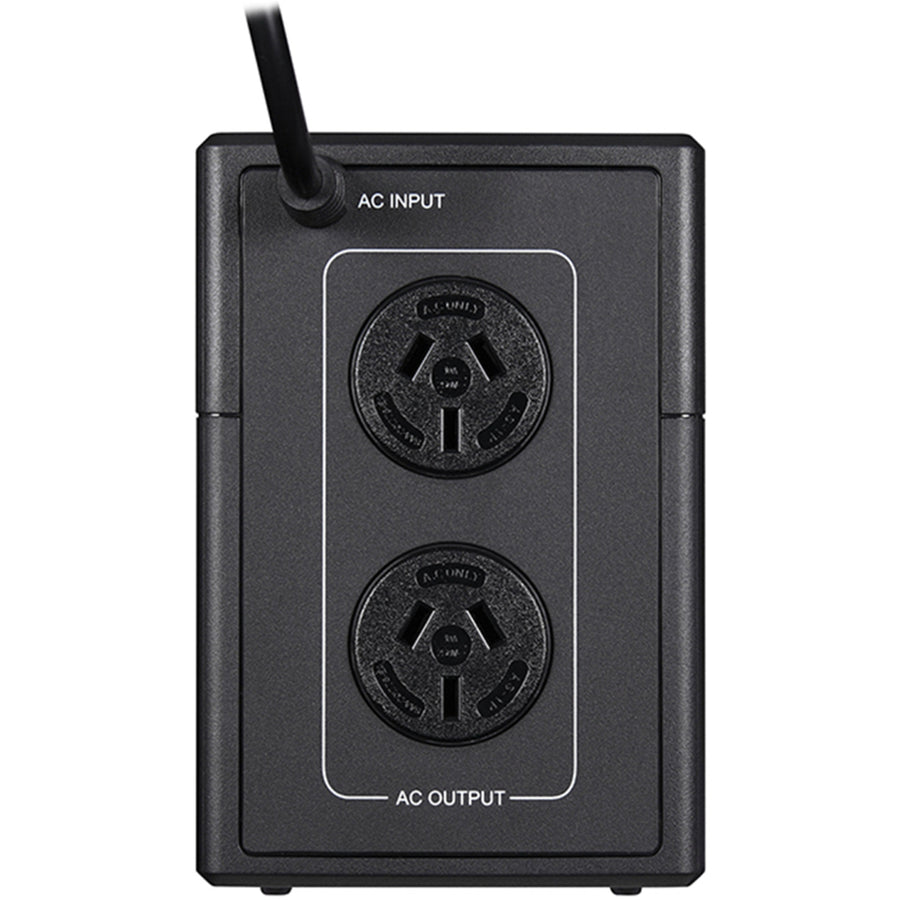

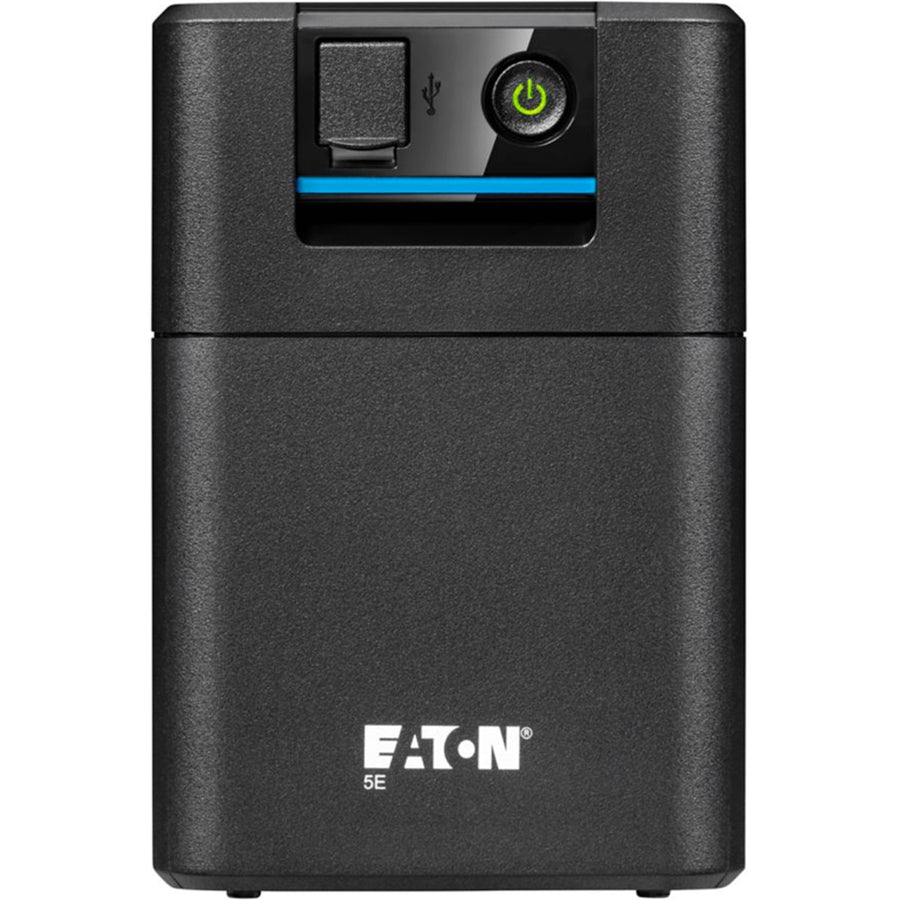

EATON 5E700UIAU - 5E GEN 2 UPS 700VA/360W Line Interactive Tower
$118.25$119.00
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
700VA Eaton 5E Gen 2 700UI UPS
700VA, Eaton 5E Gen2 UPS protects application and data against power loss, Double-boost Automatic Voltage Regulation (AVR) technology regulates grid fluctuations (under and overvoltage) to save battery power in the event of power outage, A wide product range covers the power requirements of many IT devices, Auto-restart function enables the UPS to restart automatically when mains power recovers after a total battery discharge
Specifications
Technical Specifications
| PRODUCT NAME | Eaton 5E Gen2 UPS |
|---|---|
| CATALOG NUMBER | 5E700UI |
| EAN | 3553340704178 |
| PRODUCT LENGTH/DEPTH | 288 mm |
| PRODUCT HEIGHT | 148 mm |
| PRODUCT WIDTH | 100 mm |
| PRODUCT WEIGHT | 4.18 kg |
| WARRANTY | 2 year |
| COMPLIANCES | CBLVD DirectiveEMC DirectiveRoHS DirectivePackaging DirectiveWEEE DirectiveBatteries Directive |
| CERTIFICATIONS | IEC/EN 62040-1IEC/EN 62040-2CEEACUKCACmUkrIEC/EN 62040-3 |
| SECONDARY FREQUENCY - MAX | 60 Hz |
| WATTAGE | 360 W |
| FORM FACTOR | Tower |
| INCLUDES NETWORK CARD | No |
| INPUT CONNECTION | C14 |
| INPUT VOLTAGE - MIN | 140 V |
| OUTPUT VOLTAGE - MAX | 257 V |
| SECONDARY FREQUENCY - MIN | 50 Hz |
| SOFTWARE COMPATIBILITY | Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings) |
| BATTERY TYPE | Sealed, lead-acid |
| EFFICIENCY | 95 |
| SPECIAL FEATURES | Automatic Voltage Regulation (AVR)Saves space with a compact tower designHID-compliant USB port, for automatic integration with major operating systems (Windows/Mac OS/Linux) |
| CONSTRUCTION TYPE | Free standing model |
| OUTPUT VOLTAGE - MIN | 195 V |
| COLOR | Black |
| EXTENDED BATTERY CAPABILITY | No |
| OUTPUT VOLTAGE RANGE | 195-257 V |
| TOPOLOGY | Line-interactive |
| SURGE PROTECTION | Yes |
| INPUT NOMINAL VOLTAGE | 230V default (220/230/240V) |
| INPUT FREQUENCY RANGE | 45-63 Hz |
| INTERNAL BYPASS | No |
| INPUT VOLTAGE - MAX | 300 V |
| VOLTAGE TYPE | AC |
| PHASE (OUTPUT) | 1 |
| BATTERY MANAGEMENT | Automatic battery test, deep-discharge protection, cold-start capable |
| AUTO SHUTDOWN FUNCTION | Yes |
| NUMBER OF OUTPUTS C13 | 4 |
| OPERATING TEMPERATURE - MIN | 0 °C |
| VA RATING | 700 VA |
| POTENTIAL FREE SWITCH CONTACT | No |
| RECEPTACLE | (4) C13 |
| PHASE (INPUT) | 1 |
| PACKAGE CONTENTS | (2) IEC-IEC output cablesQuick startSafety instructions |
| FEED TYPE | 1 |
| RUNTIME GRAPH | View runtime graph |
| USER INTERFACE | LEDs |
| BATTERY QUANTITY | 1 |
| OPERATING TEMPERATURE - MAX | 40 °C |
| VOLTAGE | 230V |
| HOT SWAP POWER | No |
| TEMPERATURE RANGE | 0° to 40°C (32° to 104°F) |
| ETHERNET INTERFACE | No |
| COMMUNICATION | USB port (HID compliant) |
| RELATIVE HUMIDITY | 0-90% non-condensing |
| OUTPUT APPARENT POWER | 700 VA |
| RACK MOUNTING KIT | No |
| OUTPUT FREQUENCY | 50/60 Hz |
| TYPE OF INTERFACE | USB |
| PRIMARY FREQUENCY - MIN | 45 Hz |
| BATTERY RATING | 12 V / 7 Ah |
| TYPE | UPS |
| OUTPUT NOMINAL VOLTAGE | 230V |
| EXPANSION SLOTS | No |
| INPUT VOLTAGE RANGE | 140-300 V |
| NOMINAL FREQUENCY | 50/60 Hz |
| PRIMARY FREQUENCY - MAX | 63 Hz |
| Brand | EATON |
|---|---|
| Product Type | Power & Charging > UPS & Power Distribution > UPS |
| Weight | 2.268 kg |
| Warranty |
|---|
